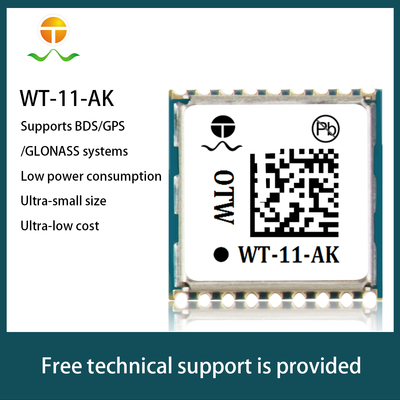

WT-11-AK Mini GPS Tracking GNSS Module for Pets & Vehicles

Large Image : WT-11-AK Mini GPS Tracking GNSS Module for Pets & Vehicles

Product Details:

Place of Origin:	China
Model Number:	WT-11-AK

Payment & Shipping Terms:

Price:	CN¥19.98/pieces 1-499 pieces

Contact Now

WT-11-AK Mini GPS Tracking GNSS Module for Pets & Vehicles

Description

Type:	GNSS Module	Country Of Origin:	Shenzhen Guangdong, China
Brand:	OTW	Chipset:	XX
Application:	Positioning, Surveying And Mapping, Etc	Operating Mode:	GPS+GLONASS+ BDS
Output Mode:	UART+TTL	Baud Rate:	4800bps-921600bps,Default9600bps
NMEA Messages:	RMC,VTG,GGA,GSA,GSV,GLL	Update Frequency:	1Hz-10Hz(default 1Hz)
Voltage:	3.6V To 5.5V	Power Consumption:	25 MA @3.3V
Size:	9.7mm10.1mm2.4mm
Highlight:	Mini GPS Tracking GNSS Module , Vehicles Tracking GNSS module , Pet tracking GNSS Module

WT-11-AK Mini GPS Tracking GNSS Module for Pets & Vehicles

Product Overview

A compact, high-performance GNSS module designed for precise positioning in pet tracking and vehicle applications. Features multi-system support including GPS, GLONASS, and BDS.

Key Specifications

Attribute	Value
Type	GNSS Module
Country of Origin	Shenzhen Guangdong, China
Brand	OTW
Chipset	XX
Application	Positioning, surveying and mapping, etc
Operating mode	GPS+GLONASS+BDS
Output Mode	UART+TTL
Baud rate	4800bps-921600bps, Default 9600bps

Module Performance

Model	WT-11-AK
Receiver type	BDS:B1I+B1C GPS/QZSS:L1C/A GLONASS:L1
Agreement	NMEA-0183 compliant protocol or custom protocol
Available baud rate	4800bps~921600bps (default 9600bps)
Channel	32
Sensitivity	Tracking: -162dbm Capture: -160dbm Cold start -148dbm
Cold start	Average 29 seconds
Hot start	Average 2-3 seconds
Accuracy	Horizontal Position: average, SBAS < 2.5m(CEP50)
Max Height	18000 m
Max Speed	515 m/s
Max Acceleration	≦ 4G
Regeneration frequency	1Hz -10 Hz
Positioning method	A-GNSS

Physical Properties

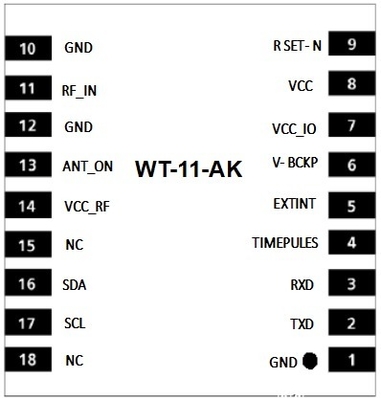

Type	18 pin stamp holes

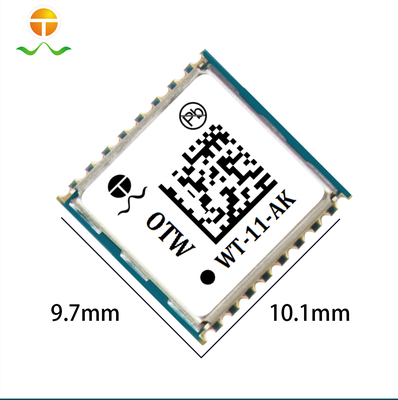

Size	10.1mm9.7mm2.5mm(+/- 0.5mm)

Power Supply

Voltage	3.6V~5.5V
Power Consumption	Operation mode: 25 mA@3.3V Power saving mode: 8 mA@3.3V (PSM, 1hz)

Operating Environment

Humidity range	5% to 90% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃

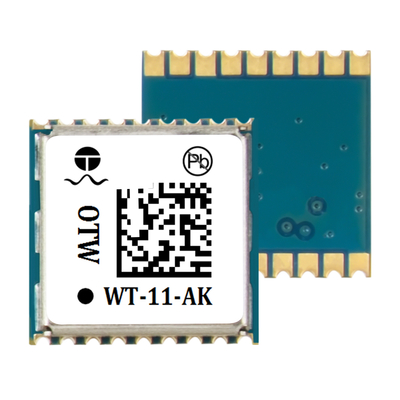

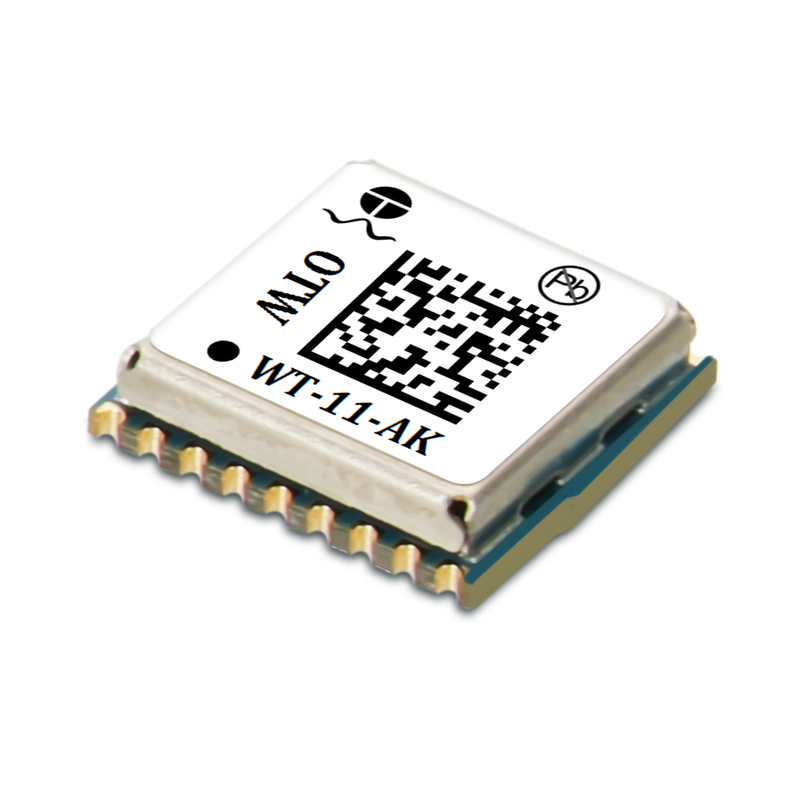

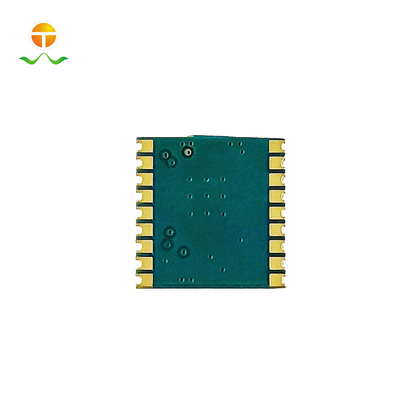

Product Images
