Electric Bicycle Smart Safety Lock with GPS Tracker Sharing Feature and GNSS Module

Electric Bicycle Smart Safety Lock with GPS Tracker Sharing Feature and GNSS Module
Electric Bicycle Smart Safety Lock with GPS Tracker Sharing Feature and GNSS Module
Electric Bicycle Smart Safety Lock with GPS Tracker Sharing Feature and GNSS Module Electric Bicycle Smart Safety Lock with GPS Tracker Sharing Feature and GNSS Module

Large Image :  Electric Bicycle Smart Safety Lock with GPS Tracker Sharing Feature and GNSS Module

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-11-UBL
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: US $2.4 - 11.80/
Delivery Time: 7-10working days after receiving the payment
Payment Terms: T/T,Western Union
Supply Ability: Above US$100 Million
Contact Now

Electric Bicycle Smart Safety Lock with GPS Tracker Sharing Feature and GNSS Module

Description
Type: GNSS Module Brand: OTW
Operating Mode: GPS+GLONASS+ BDS Output Mode: UART+TTL
NMEA Messages: RMC,VTG,GGA,GSA,GSV,GLL Voltage: 1.65V To 3.6V
Power Consumption: Running Mode 16.5mA @3.0V Size: 9.7mm*10.1mm*2.4mm
Highlight:

Smart Safety Lock GNSS Module

,

Electric Bicycle GNSS Module

Electric Bicycle Smart Safety Lock with GPS Tracker Sharing Feature and GNSS Module
Product Attributes
Attribute Value
Type GNSS Module
Brand OTW
Operating mode GPS+GLONASS+ BDS
Output Mode UART+TTL
NMEA messages RMC,VTG,GGA,GSA,GSV,GLL
Voltage 1.65V to 3.6V
Power consumption Running Mode 16.5mA @3.0V
Size 9.7mm*10.1mm*2.4mm
Product Overview
Electric Bicycle Smart Safety Lock with GPS Tracker Sharing Feature and GNSS Module 0
Applications
  • Car navigation, traffic recorder
  • Drones, law enforcement cameras
  • HD camera, surveying and mapping
  • Handheld device
  • Smart wear
  • Smart agriculture
Electric Bicycle Smart Safety Lock with GPS Tracker Sharing Feature and GNSS Module 1
Key Features
  • Supports GPS/QZSS, GLONASS
  • Combines low power consumption and high sensitivity
  • Strong anti-interference ability
  • Low cost, ultra-small size
  • Built-in low noise amplifier LNA and filter SAW
Electric Bicycle Smart Safety Lock with GPS Tracker Sharing Feature and GNSS Module 2 Electric Bicycle Smart Safety Lock with GPS Tracker Sharing Feature and GNSS Module 3
Technical Specifications

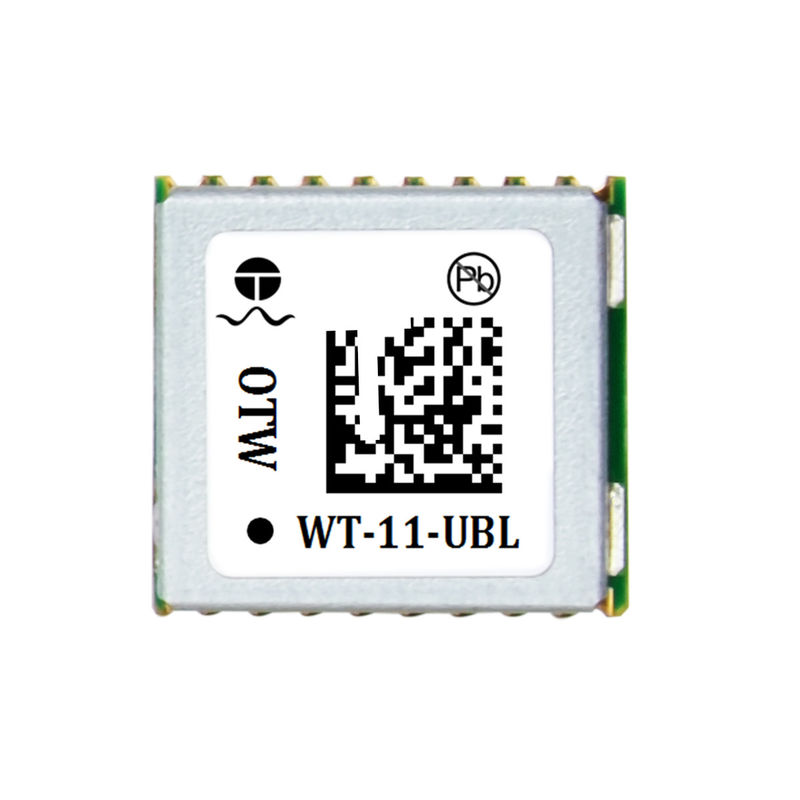

Model: WT-11-UBL
Receiver type: GPS/QZSS L1 C/A, GLONASS L1
Agreement: NMEA-0183 compliant protocol or custom protocol
Available baud rate: 4800bps~921600bps (default 9600bps)
Channel: 56
Sensitivity: Tracking: -161dbm, Hot start: -148dbm, Cold start: -148dBm
Cold start: Average 29 seconds
Hot start: Average 1 second
Accuracy: Horizontal Position: average, SBAS < 2.5m
Max Height: 18000 M
Max Speed: 515 m/s
Max Acceleration: ≦ 4G
Regeneration frequency: 0.25Hz -10 Hz
Positioning mode: A-GNSS
Port Configuration
  • 2 UART ports
  • 1 I2C port
  • 2 SPI ports
Physical Properties
Type: 18 pin stamp holes
Size: 10.1mm * 9.7mm * 2.4mm (+/- 0.5mm)
Power Supply
Voltage: 1.65V~3.6V
Power Consumption: Operation mode: 16.5mA@3V, power saving mode: 4.5mA@3V
Operating Environment
Humidity range: 5% to 95% non-condensing
Working Temperature: -40℃ to 85℃
Storage Temperature: -40℃ to 85℃
