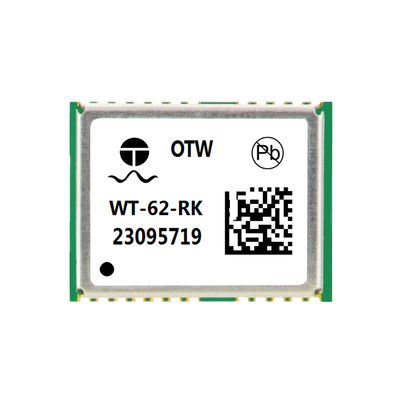

Large Image :  gnss module High Precision GPS RTK Module Land Survey GNSS Module 115200bps rtk module

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-62-RK
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: US $2.4 - 11.80/
Delivery Time: 7-10working days after receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: Above US$100 Million
Contact Now

gnss module High Precision GPS RTK Module Land Survey GNSS Module 115200bps rtk module

Description
Model Number: WT-62-RK Type: GNSS Module
Brand: OTW Operating Mode: GPS+GLONASS+GALILEO+ BDS
Output Mode: UART+TTL+R232 Baud Rate: 4800bps-921600bps,Default115200bps
Voltage: 1.8V To 3.3V Power Consumption: 103mW @1.8V
Highlight:

precision gps modules 128 channel

,

128 channel precision gps modules

,

high precision gps modules 128 channel

High Precision GPS RTK Module Land Survey GPS Module GNSS Module



Product descriptions from the supplier

Overview

gnss module High Precision GPS RTK Module Land Survey GNSS Module 115200bps rtk module 0
Application:
● Location of base stations, power and communications
● Area measurement and distance measurement surveying and mapping products
● Vehicle positioning, personnel positioning, vehicle afterloading, etc
● Lawn mowers, farming machines, drones and other fields
● Positioning and measurement in complex environments and high-speed motion scenarios
● Intelligent Internet of Things, intelligent driving, etc

gnss module High Precision GPS RTK Module Land Survey GNSS Module 115200bps rtk module 1
Features:
● Multi-system, can synchronously receive GPS/BDS/GLONASS/GALILEO four system dual frequency
● RTK algorithm
● Ultra-high precision, can achieve centimeter-level positioning
● Low cost, low power consumption
● Fast positioning
● Small size, overall size :12.2x16x2.4mm

gnss module High Precision GPS RTK Module Land Survey GNSS Module 115200bps rtk module 2



Bottom view
Module pin allocation
gnss module High Precision GPS RTK Module Land Survey GNSS Module 115200bps rtk module 3
                                                      Module performance
Chip WT-62-RK
Receiver type

BDS:B1I/B1C & B2a
GPS/QZSS:L1C/A & L5
GLONASS:L1
Galileo:E1,E5a
Arithmetic Integration RTK
Agreement NMEA-0183 compliant protocol or custom protocol
Available baud rate 4800bps~921600bps(default 115200bps)
Channel 128
Sensitivity Tracking: -167dbm Capture: -160dbm Cold start -148dbm
Cold start Average 28seconds
Hot start Average 1 seconds
Accuracy Level 1cm+1ppm CEP50; Elevation 2cm+1ppm CEP50
18Max Height 18000 M
Max Speed 515 m/s
Max Acceleration ≦ 4G
Regeneration frequency 0.25 Hz -10 Hz
Positioning mode A-GNSS,Double frequency RTK
Port
Port

UART/TTL/R232


Physical property
Type 24PIN LCC package
Size 16.0mm*12.2mm*2.4mm(+/- 0.5mm)
Power supply
Voltage 1.8V~3.3V
Power Consume

Running mode: 103mW@1.8V, Standby mode: < 20μW
Oerating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
