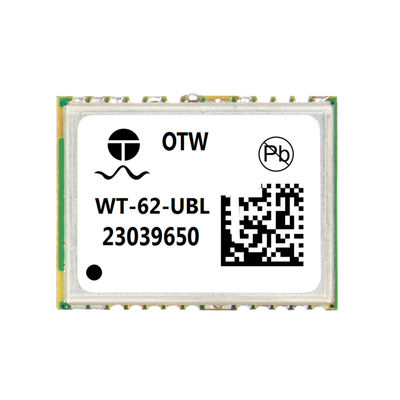

Tracker Real Time Positioning GPS Tracking Device Motorcycle GPS Module 9600bps oem gps module

Large Image : Tracker Real Time Positioning GPS Tracking Device Motorcycle GPS Module 9600bps oem gps module

Product Details:

Place of Origin:	China
Brand Name:	OTW
Model Number:	WT-62-UBL

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	US $2.4 - 11.80/
Delivery Time:	7-10working days after receiving the payment
Payment Terms:	T/T, Western Union
Supply Ability:	Above US$100 Million

Contact Now

Tracker Real Time Positioning GPS Tracking Device Motorcycle GPS Module 9600bps oem gps module

Description

Model Number:	WT-62-UBL	Application:	Positioning, Surveying And Mapping, Etc
Type:	GNSS Module	Country Of Origin:	CHINA
Baud Rate:	4800bps-921600bps,Default9600bps	Update Frequency:	1Hz-10Hz(default 1Hz)
Voltage:	1.65V To 3.6V
Highlight:	Real Time Positioning Motorcycle Gps Module , Motorcycle GPS Module 9600bps , GPS Tracking Device Motorcycle GPS Module

Tracker Real-Time Positioning Gps Tracking Device Motorcycle Gps Module

Product descriptions from the supplier

Overview

Application:

●Car navigation, traffic recorder ●Drones, law enforcement cameras ●Hd camera, surveying and mapping ●Handheld device ●Smart wear ●Smart agriculture

Features:

●Supports GPS/QZSS,GLONASS
●Combines low power consumption and high sensitivity
●Strong anti-interference ability
●Built-in low noise amplifier

Bottom view

Module pin allocation

Module performance
Chip	WT-62-UBL
Receiver type	GPS/QZSS L1 C/A GLONASS L1
Agreement	NMEA-0183 compliant protocol or custom protocol
Available baud rate	4800bps~921600bps(default 9600bps)
Channel	56
Sensitivity	Tracking: -162dbm Capture: -160dbm Cold start -148dbm
Cold start	Average 29seconds
Hot start	Average 1 seconds
Accuracy	Horizontal Position : average, SBAS < 2.5m
18Max Height	18000 M
Max Speed	515 m/s
Max Acceleration	≦ 4G
Regeneration frequency	1Hz -10 Hz
Port
Port	2 URAT 1 I2C 2 SPI
Physical property
Type	24 pin stamp holes
Size	16.0mm12.2mm2.4mm(+/- 0.5mm)
Power supply
Voltage	1.65V~3.6V
Power Consume	Operation mode: 17mA@3V, power saving mode: 5mA@3V
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
