mini gps module 1Hz-18Hz GNSS Module GPS Module For Vehicle Positioning oem gps module

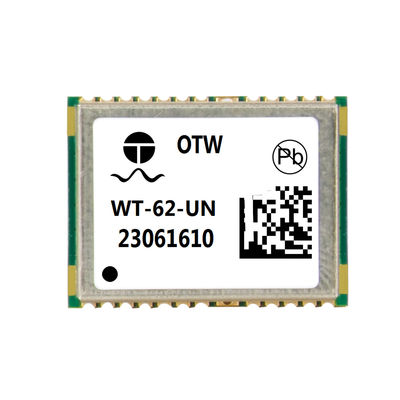

Large Image : mini gps module 1Hz-18Hz GNSS Module GPS Module For Vehicle Positioning oem gps module

Product Details:

Place of Origin:	China
Brand Name:	OTW
Model Number:	WT-62-UN

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	US $2.4 - 11.80/
Delivery Time:	7-10working days after receiving the payment
Payment Terms:	T/T, Western Union
Supply Ability:	Above US$100 Million

Contact Now

mini gps module 1Hz-18Hz GNSS Module GPS Module For Vehicle Positioning oem gps module

Description

Model Number:	WT-62-UN	Chipset:	XX
Application:	Positioning, Surveying And Mapping, Etc	Type:	GNSS Module
Country Of Origin:	CHINA	Operating Mode:	GPS+GLONASS+GALILEO+ BDS
Update Frequency:	1Hz-18Hz(default 1Hz)
Highlight:	GPS Module For Vehicle Positioning , Vehicle Positioning GPS Module , 1Hz Positioning GNSS Module

The GPS Module Is Integrated Into The Gps Vehicle Tracker For Vehicle Positioning

Product descriptions from the supplier

Overview

Application:

●Car navigation, traffic recorder

●Drones, law enforcement cameras

●Hd camera, surveying and mapping ●Handheld device

●Smart wear

●Smart agriculture

Features:

●Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou) ●Minimum current consumption

●Excellent positioning accuracy in urban canyons

●With security and integrity protection ●Supports all satellite augmentation systems

Bottom view

Module pin allocation

Module performance
Chip	WT-62-UN
Receiver type	GPS/QZSS :L1C/A Galileo:E1-B/C GLONASS:L1OF BeiDou:B1\|
Agreement	NMEA-0183 compliant protocol or custom protocol
Available baud rate	4800bps~921600bps(default 9600bps)
Channel	72
Sensitivity	Tracking: -167dbm Capture: -158dbm Cold start -148dbm
Cold start	Average 26seconds
Hot start	Average 1 seconds
Accuracy	Horizontal Position : average, SBAS < 2.0m
18Max Height	18000 M
Max Speed	515 m/s
Max Acceleration	≦ 4G
Regeneration frequency	1Hz -18 Hz
Port
Port	2 URAT 1 I2C 2 SPI
Physical property
Type	24 pin stamp holes
Size	16.0mm12.2mm2.4mm(+/- 0.5mm)
Power supply
Voltage	1.65V~3.6V
Power Consume	Operation mode: 21 mA@3.0V, power saving mode: 5.3 mA@3.0V (PSM, 1hz)
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
