Product Details:
|
| Type: | GNSS Module | Country Of Origin: | CHINA |
|---|---|---|---|
| Brand: | OTW | Output Mode: | UART+TTL+R232 |
| Baud Rate: | 4800bps-921600bps,Default 9600bps | Update Frequency: | 1Hz-18Hz(default 1Hz) |
| Voltage: | 1.65V To 3.6V | Size: | 12.2mm*16mm*2.4mm |
| Highlight: | gnss receiver module 9600bps,3.6V gnss receiver module,gnss module 9600bps |
||
The GPS module can be used as a GPS car tracker for car and truck anti-theft
Product descriptions from the supplier
| Module performance | |

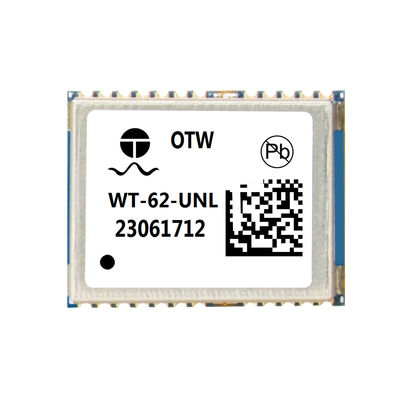

| Chip | WT-62-UNL |
| Receiver type |
GPS/QZSS :L1C/A |
| Agreement | NMEA-0183 compliant protocol or custom protocol |
| Available baud rate | 4800bps~921600bps(default 9600bps) |
| Channel | 72 |
| Sensitivity | Tracking: -167dbm Capture: -158dbm Cold start -148dbm |
| Cold start | Average 26seconds |
| Hot start | Average 1 seconds |
| Accuracy | Horizontal Position : average, SBAS < 2.0m |
| 18Max Height | 18000 M |
| Max Speed | 515 m/s |
| Max Acceleration | ≦ 4G |
| Regeneration frequency | 1Hz -18 Hz |
| Port | |
| Port |
2 URAT
|
| Physical property | |
| Type | 24 pin stamp holes |
| Size | 16.0mm*12.2mm*2.4mm(+/- 0.5mm) |
| Power supply | |
| Voltage | 1.65V~3.6V |
| Power Consume |
Operation mode: 21 mA@3.0V, power saving mode: 5.3 mA@3.0V (PSM, 1hz) |
| Oerating Environment | |
| Humidity range | 5% to 95% non-condensing |
| Working Temperature | -40℃ to 85℃ |
| Storage Temperature | -40℃ to 85℃ |
