OTW GNSS Receiver Module 9600bps For HD Camera

OTW GNSS Receiver Module 9600bps For HD Camera
OTW GNSS Receiver Module 9600bps For HD Camera OTW GNSS Receiver Module 9600bps For HD Camera

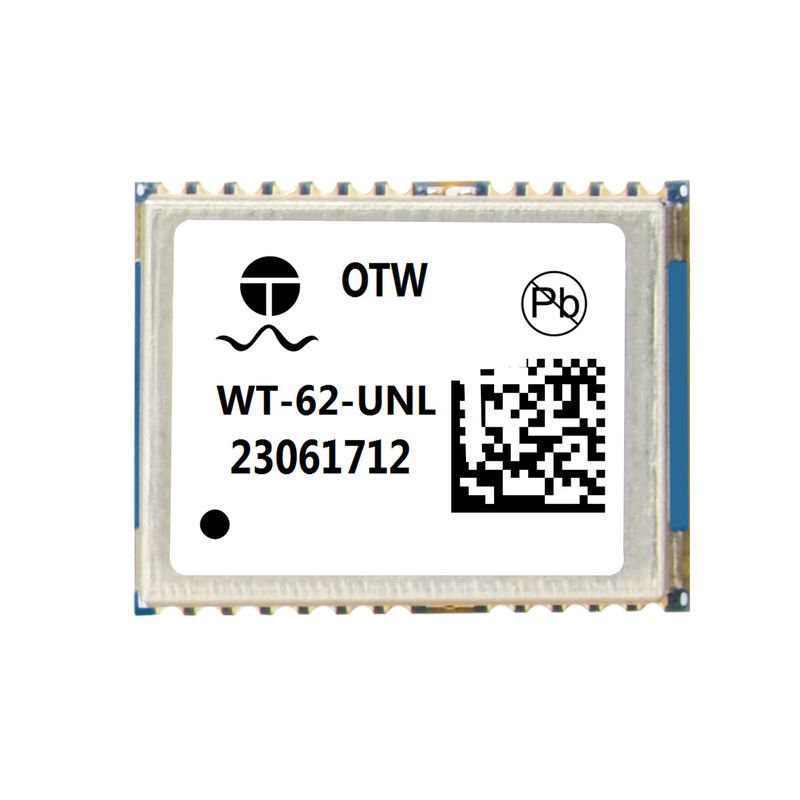

Large Image :  OTW GNSS Receiver Module 9600bps For HD Camera

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-62-UNL
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: US $2.4 - 11.80/
Delivery Time: 7-10working days after receiving the payment
Payment Terms: T/T,Western Union
Supply Ability: Above US$100 Million

OTW GNSS Receiver Module 9600bps For HD Camera

Description
Type: GNSS Module Country Of Origin: CHINA
Brand: OTW Output Mode: UART+TTL
Baud Rate: 4800bps-921600bps,Default 9600bps Update Frequency: 1Hz-18Hz(default 1Hz)
Voltage: 1.65V To 3.6V Size: 12.2mm*16mm*2.4mm
Highlight:

gnss receiver module 9600bps

,

3.6V gnss receiver module

,

gnss module 9600bps

OTW GNSS Receiver Module 9600bps For HD Camera
Product Attributes
Type GNSS Module
Country of Origin CHINA
Brand OTW
Output Mode UART+TTL
Baud rate 4800bps-921600bps, Default 9600bps
Update frequency 1Hz-18Hz (default 1Hz)
Voltage 1.65V to 3.6V
Size 12.2mm*16mm*2.4mm
Product Description

The OTW GNSS Receiver Module provides precise positioning for vehicle tracking and anti-theft systems.

Overview
OTW GNSS Receiver Module 9600bps For HD Camera 0
Applications
  • Car navigation and traffic recorders
  • Drones and law enforcement cameras
  • HD cameras and surveying equipment
  • Handheld devices
  • Smart wearables
  • Smart agriculture systems
OTW GNSS Receiver Module 9600bps For HD Camera 1
Key Features
  • Concurrent reception of up to 3 GNSS systems (GPS, Galileo, GLONASS, BeiDou)
  • Minimal current consumption for power efficiency
  • Excellent positioning accuracy in urban environments
  • Security and integrity protection
  • Supports all satellite augmentation systems
  • Built-in low noise amplifier
OTW GNSS Receiver Module 9600bps For HD Camera 2 OTW GNSS Receiver Module 9600bps For HD Camera 3
Module Performance Specifications
Chip WT-62-UNL
Receiver type GPS/QZSS: L1C/A
Galileo: E1-B/C
GLONASS: L1OF
BeiDou: B1
Agreement NMEA-0183 compliant protocol or custom protocol
Available baud rate 4800bps~921600bps (default 9600bps)
Channel 72
Sensitivity Tracking: -167dbm
Capture: -158dbm
Cold start: -148dbm
Cold start Average 26 seconds
Hot start Average 1 second
Accuracy Horizontal Position: average, SBAS < 2.0m
Max Height 18000 M
Max Speed 515 m/s
Max Acceleration ≤ 4G
Regeneration frequency 1Hz -18 Hz
Port URAT/TTL
Physical property 24 pin stamp holes
Size: 16.0mm*12.2mm*2.4mm(+/- 0.5mm)
Power supply Voltage: 1.65V~3.6V
Power Consumption: Operation mode: 21 mA@3.0V, power saving mode: 5.3 mA@3.0V (PSM, 1hz)
Operating Environment Humidity range: 5% to 95% non-condensing
Working Temperature: -40℃ to 85℃
Storage Temperature: -40℃ to 85℃
