Gold Plated Female Wifi Antenna SMA Connector Straight For PCB Mounting Connectors

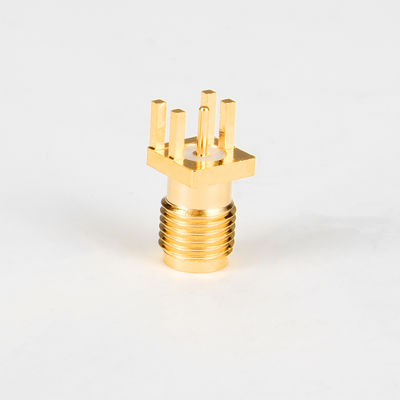

Large Image : Gold Plated Female Wifi Antenna SMA Connector Straight For PCB Mounting Connectors

Product Details:

Place of Origin:	China
Brand Name:	OTW
Model Number:	SMA-KE-13.5

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	0.05-0.39
Delivery Time:	7-10working days after receiving the payment
Payment Terms:	T/T, Western Union
Supply Ability:	Above US$100 Million

Contact Now

Gold Plated Female Wifi Antenna SMA Connector Straight For PCB Mounting Connectors

Description

Model Number:	SMA-KE-13.5	Type:	PCB Mount Connector
Brand:	OTW	Plating:	GOLD
Working Voltage:	2700V Max	VSWR:	1.10:1
Frequency Range:	DC ~ 11GHz	Impedance:	50Ω
Highlight:	Gold Plated wifi antenna sma connector , PCB Mounting wifi antenna sma connector , Gold Plated SMA Connector Straight

SMA-KE-13.5 Gold Plated Female Connector Straight For PCB Mounting Connectors

Product descriptions from the supplier

Overview

Application:

● PCB Mounting Wifi Antenna Connector

● RF signal connection

Features:

● Enhanced electrical conductivity ● Oxidation resistance, corrosion resistance,environmental protection and safety

● Brass/Gold plating ● Stable performance and strong durability ● High reliability, long life

Product performance
Model	SMA-KE-13.5
Vibration	100m/s2 (10~500Hz)
Impedance	50 OHM
Frequency Range	DC – 11GHz
Working Voltage	2700V max
Break-down Voltage	4000V rms @ sea level
Contact resistance	≤0.4 OHM @ inner contact ≤1.5 OHM @ outer contact
Average power	3KW max
Insulation resistance	≥10000M OHM
VSWR	≤ 1.10
Durability (mating)	≥500 (cycles)
Temperature range	-40~+85°C
Material	Brass
Size	Leg length 13.5MM Teeth length 8MM 1.7MM spacing
