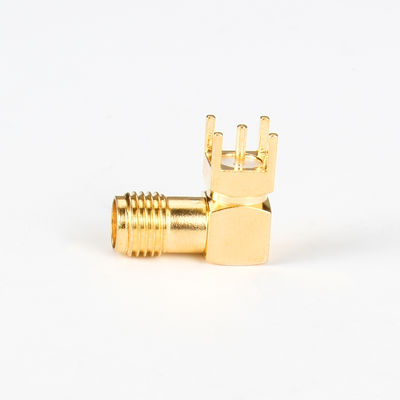

50 OHM Female PCB Mount Connector PCB Mounting Wifi Antenna Connector 3KW Max

50 OHM Female PCB Mount Connector PCB Mounting Wifi Antenna Connector 3KW Max
50 OHM Female PCB Mount Connector PCB Mounting Wifi Antenna Connector 3KW Max
50 OHM Female PCB Mount Connector PCB Mounting Wifi Antenna Connector 3KW Max 50 OHM Female PCB Mount Connector PCB Mounting Wifi Antenna Connector 3KW Max

Large Image :  50 OHM Female PCB Mount Connector PCB Mounting Wifi Antenna Connector 3KW Max

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: SMA-KE-14.5
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: 0.05-0.39
Delivery Time: 7-10working days after receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: Above US$100 Million
Contact Now

50 OHM Female PCB Mount Connector PCB Mounting Wifi Antenna Connector 3KW Max

Description
Model Number: SMA-KE-14.5 Brand: OTW
Description: Female PCB Mount Connector Material: Brass
Plating: GOLD Working Voltage: 2700V Max
Impedance: 50Ω
Highlight:

smb pcb connector 3KW

,

Wifi Antenna Connector 3KW

,

50 OHM Female PCB Mount Connector

Stable and Durable Attachment for High Reliability and Long Life



Product descriptions from the supplier

Overview

50 OHM Female PCB Mount Connector PCB Mounting Wifi Antenna Connector 3KW Max 0
Application:
● PCB Mounting Wifi Antenna Connector

● RF signal connection
50 OHM Female PCB Mount Connector PCB Mounting Wifi Antenna Connector 3KW Max 1
Features:
● Enhanced electrical conductivity ● Oxidation resistance, corrosion resistance, environmental protection and safety
● Brass/Gold plating ● Stable performance and strong durability ● High reliability, long life

50 OHM Female PCB Mount Connector PCB Mounting Wifi Antenna Connector 3KW Max 2
50 OHM Female PCB Mount Connector PCB Mounting Wifi Antenna Connector 3KW Max 3
50 OHM Female PCB Mount Connector PCB Mounting Wifi Antenna Connector 3KW Max 4
                                                      Product performance
Model SMA-KE-14.5
Vibration 100m/s2 (10~500Hz)
Impedance

50 OHM
Frequency Range DC – 11GHz
Working Voltage 2700V max
Break-down Voltage 4000V rms @ sea level
Contact resistance ≤0.4 OHM @ inner contact
≤1.5 OHM @ outer contact
Average power 3KW max
Insulation resistance ≥10000M OHM
VSWR ≤ 1.10
Durability (mating) ≥500 (cycles)
Temperature range -40~+85°C
Material Brass
Size Leg length 14.5MM Teeth length 8.5MM 1.7MM spacing
