Sgps gsm real-time tracking wireless alarm for vehicle intelligent gps locator

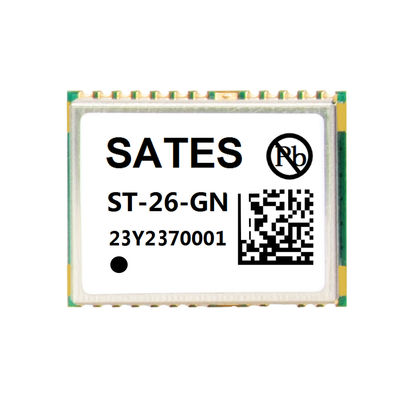

Large Image : Sgps gsm real-time tracking wireless alarm for vehicle intelligent gps locator

Product Details:

Place of Origin:	China
Brand Name:	OTW
Model Number:	ST-26-GN

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	US $2.4 - 11.80/
Delivery Time:	7-10working days after receiving the payment
Payment Terms:	T/T, Western Union
Supply Ability:	Above US$100 Million

Contact Now

Sgps gsm real-time tracking wireless alarm for vehicle intelligent gps locator

Description

Model Number:	ST-26-GN	Type:	GNSS Module
Country Of Origin:	CHINA	Output Mode:	UART+TTL+R232
NMEA Messages:	RMC,VTG,GGA,GSA,GSV,GLL	Update Frequency:	1Hz-18Hz(default 1Hz)
Voltage:	2.7V To 3.6V	Size:	12.2mm16mm2.4mm
Highlight:	Intelligent gps locator , Wireless alarm gps locator , Vehicle gps locator

Product descriptions from the supplier

Overview

Application:

●Suitable for automotive field
●Handheld device
●Smart Agriculture
●Drones, etc.

Features:

●Can receive 3 GNSS at the same time, so it has extremely high accuracy
●Provides high sensitivity and minimal acquisition time while maintaining low system power consumption
●Complex RF construction and interference suppression ensure optimal performance even in gnss hostile environments.
●Excellent security and integrity protection
●Zero PPM plan

Bottom view

Module pin allocation

Module performance
Type	ST-26-GN
Receiver type	GPS/QZSS:L1 GLONASS:l1 BDS:B1I Galileo:E1/SBAS L1
Agreement	NMEA-0183 compliant protocol or custom protocol
Available baud rate	4800bps~921600bps(default 9600bps)
Channel	72
Sensitivity	Tracking: -167dbm Capture: -158dbm Cold start -148dbm
Cold start	Average 26seconds
Hot start	Average 1 seconds
Accuracy	Horizontal Position : average, SBAS < 2.0m
18Max Height	18000 M
Max Speed	515 m/s
Max Acceleration	≦ 4G
Regeneration frequency	1Hz -18 Hz
Port
Port	1 UART 1 USB V2.0 full speed 12 Mbit/s 1 SPI (optional) 1 DDC (I2C compliant)
Physical property
Type	24 pin stamp holes
Size	16.0mm12.2mm2.4mm(+/- 0.5mm)
Power supply
Voltage	2.7V~3.6V
Power Consume	Normal mode power consumption 22 mA@3.0V
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
