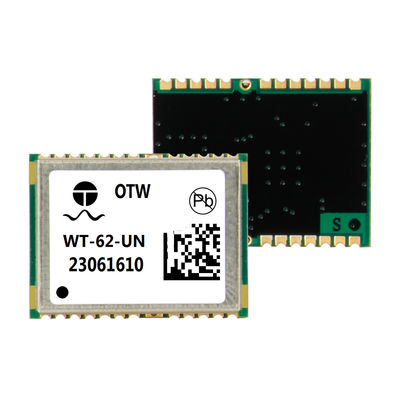

gnss module 2.5m CEP GPS Vehicle GPS Module For Car Anti Theft Devices gps tracking module

gnss module 2.5m CEP GPS Vehicle GPS Module For Car Anti Theft Devices gps tracking module
gnss module 2.5m CEP GPS Vehicle GPS Module For Car Anti Theft Devices gps tracking module
gnss module 2.5m CEP GPS Vehicle GPS Module For Car Anti Theft Devices gps tracking module gnss module 2.5m CEP GPS Vehicle GPS Module For Car Anti Theft Devices gps tracking module

Large Image :  gnss module 2.5m CEP GPS Vehicle GPS Module For Car Anti Theft Devices gps tracking module

Product Details:
Place of Origin: China
Brand Name: OTW
Certification: CE, ISO9001
Model Number: WT-62-UN
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $2.4 - 11.80/
Packaging Details: Carton box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal
Supply Ability: 10000 pcs/day
Contact Now

gnss module 2.5m CEP GPS Vehicle GPS Module For Car Anti Theft Devices gps tracking module

Description
Antenna Type: Active Patch Antenna Update Rate: 10Hz
Sensitivity: Tracking: -167dbm Capture: -158dbm Cold Start -148dbm Agreement: NMEA-0183 Compliant Protocol Or Custom Protocol
Dimensions: 16.0mm X 12.2mm X 2.4mm Accuracy: 2.5m CEP
Number Of Channels: 72 Operating Temperature: -40°C To 85°C
Highlight:

GPS Vehicle tracker GPS module

,

GPS module for car anti theft devices

,

2.5m CEP GPS module for car

WT-62-UN GNSS Module - 2.5m CEP GPS Vehicle Tracking Module
Key Specifications
Model WT-62-UN
Antenna Type Active Patch Antenna
Update Rate 10Hz
Sensitivity Tracking: -167dbm
Capture: -158dbm
Cold Start: -148dbm
Protocol NMEA-0183 Compliant or Custom Protocol
Dimensions 16.0mm × 12.2mm × 2.4mm
Accuracy 2.5m CEP
Channels 72
Operating Temperature -40°C to 85°C
Product Overview
The WT-62-UN is a high-performance GNSS positioning module designed for accurate and reliable vehicle tracking applications. This compact and versatile module supports multiple satellite systems and offers advanced features for various tracking needs.
Key Features
  • High-performance GPS/GNSS locating module
  • Compact and lightweight design (16.0mm × 12.2mm × 2.4mm)
  • Supports NMEA-0183 compliant protocol or custom protocol
  • Excellent sensitivity for reliable positioning in challenging environments
  • Wide range of baud rates (4800bps to 921600bps, default 9600bps)
  • Concurrent reception of GPS, Galileo, GLONASS, and BeiDou signals
  • Low power consumption design
  • Robust operation from -40°C to 85°C
Technical Parameters
Interface UART/TTL
Power Supply 1.65V to 3.6V
Frequency GPS/QZSS: L1C/A
Galileo: E1-B/C
GLONASS: L1OF
BeiDou: B1
Applications
  • Vehicle tracking and anti-theft systems
  • Marine navigation and positioning
  • Personal and asset tracking devices
  • Fleet management solutions
  • Agricultural and farming equipment
  • Surveying and mapping applications
Customization Services
We offer comprehensive customization options for the WT-62-UN module to meet your specific requirements. Our engineering team can work with you to develop tailored solutions for your application needs.
For customization inquiries, please contact our sales team with your detailed requirements for a personalized quote.
Frequently Asked Questions
Q1: Are you a manufacturer? Where is your factory located?
A1: Yes, we are the manufacturer with our factory located in Shenzhen, China. We welcome visits to our production facility.
Q2: What is your standard delivery time?
A2: Standard delivery time is 7-10 days after payment confirmation, depending on order quantity and stock availability.
Q3: Do you offer samples?
A3: Yes, we provide samples for quality evaluation. Mixed samples are acceptable.
Q4: What customization options are available?
A4: We support various customization options including protocol modifications, form factor adjustments, and special feature implementations.
Q5: How can I get pricing information?
A5: We typically provide quotes within 24 hours of receiving your inquiry. For urgent requests, please contact our sales team directly.
For additional technical specifications or application support, please contact our technical team.
