Product Details:
Place of Origin: China
Brand Name: OTW
Certification: CE, ISO9001
Model Number: WT-62-UNL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $2.4 - 11.80/
Packaging Details: Carton box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal
Supply Ability: 10000 pcs/day

1.65V-3.6V 10hz GPS Module For Motorcycle Tracking Anti Theft Devices

Description
Start-up Time: Cold Start:Average 26seconds Hot Start:Average 1 Seconds Available Baud Rate: 4800bps~921600bps(default 9600bps)
Power Supply: 1.65V~3.6V Frequency: GPS/QZSS :L1C/A Galileo:E1-B/C GLONASS:L1OF BeiDou:B1|
Accuracy: Horizontal Position : Average, SBAS < 2.0m Update Rate: 1Hz -18 Hz
Number Of Channels: 72 Interface: URAT/TTL
Highlight:

gps system module 1.65v-3.6v

,

10hz GPS Module Anti Theft Devices

,

gps system modules 1.65v-3.6v

1.65V-3.6V 10Hz GPS Module for Motorcycle Tracking Anti Theft Devices
Key Specifications
Attribute Value
Start-up time Cold Start: Average 26 seconds
Hot Start: Average 1 second
Available baud rate 4800bps~921600bps (default 9600bps)
Power Supply 1.65V~3.6V
Frequency GPS/QZSS: L1C/A
Galileo: E1-B/C
GLONASS: L1OF
BeiDou: B1
Accuracy Horizontal Position: Average, SBAS < 2.0m
Update Rate 1Hz - 18Hz
Number of channels 72
Interface 2 UART, 1 I2C, 2 SPI
Product Overview

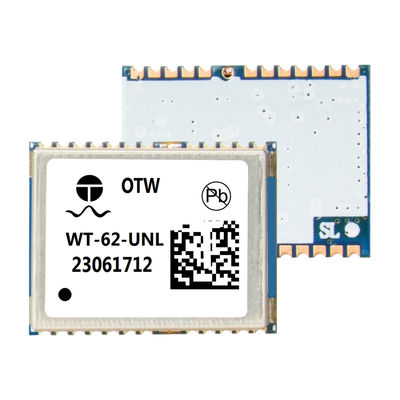

The OTW Positioning Module (Model WT-62-UNL) is a compact, high-performance GPS module designed for accurate real-time positioning and tracking applications. With dimensions of just 16.0mm × 12.2mm × 2.4mm, this module is ideal for integration into various tracking and navigation systems.

Key Features
  • High sensitivity: Tracking -167dBm, Capture -158dBm, Cold Start -148dBm
  • Fast update rate: 1Hz to 18Hz for real-time tracking
  • 72-channel receiver for superior performance
  • NMEA-0183 compliant protocol with custom protocol option
  • Compact design for easy integration
  • CE and ISO9001 certified for reliability
Technical Parameters
Antenna Type Active Patch Antenna
Sensitivity Tracking: -167dBm
Capture: -158dBm
Cold Start: -148dBm
Agreement NMEA-0183 Compliant Protocol or Custom Protocol
Interface UART/TTL
Applications
Car navigation Traffic recorder Drones Law enforcement cameras HD camera Surveying and mapping Handheld devices Smart wear Smart agriculture Fleet management Asset tracking
Ordering Information

Brand: OTW
Model: WT-62-UNL
Origin: China
Certification: CE, ISO9001
MOQ: 1 piece
Price: $5.30 per piece
Delivery: 5-8 working days
Supply Capacity: 10,000 pieces/day

Frequently Asked Questions
Q: What is the brand name of this product?
A: The brand name of this product is OTW.
Q: What is the model number of this product?
A: The model number of this product is WT-62-UNL.
Q: Where is this product made?
A: This product is made in China.
Q: Is this product certified?
A: Yes, this product is certified with CE and ISO9001.
