WT-62-TD 1Hz -10 Hz Satellite Navigation Arduino GPS Module For Car oem gps module

WT-62-TD 1Hz -10 Hz Satellite Navigation Arduino GPS Module For Car oem gps module
WT-62-TD 1Hz -10 Hz Satellite Navigation Arduino GPS Module For Car oem gps module
WT-62-TD 1Hz -10 Hz Satellite Navigation Arduino GPS Module For Car oem gps module WT-62-TD 1Hz -10 Hz Satellite Navigation Arduino GPS Module For Car oem gps module

Large Image :  WT-62-TD 1Hz -10 Hz Satellite Navigation Arduino GPS Module For Car oem gps module

Product Details:
Place of Origin: China
Brand Name: OTW
Certification: CE, ISO9001
Model Number: WT-62-TD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $2.4 - 11.80/
Packaging Details: Carton box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal
Supply Ability: 10000 pcs/day
Contact Now

WT-62-TD 1Hz -10 Hz Satellite Navigation Arduino GPS Module For Car oem gps module

Description
Interface: URAT/TTL Update Rate: 1Hz -10 Hz
Available Baud Rate: 4800bps~921600bps(default 9600bps) Receiver Type: BDS:B1I+B1C GPS/QZSS/SBAS:L1C/A GALILEO:E1 GLONASS:L1
Operating Temperature: -40°C To 85°C Model: WT-62-TD
Power Supply: 1.8V~3.6V Sensitivity: Tracking: -163dbm Capture: -160dbm Cold Start -147dbm
Highlight:

WT-62-TD arduino gps module

,

1Hz arduino gps module for car

,

10 Hz gps module for car

WT-62-TD 1Hz -10 Hz Satellite Navigation Arduino GPS Module
Product Attributes
Attribute Value
Interface URAT/TTL
Update Rate 1Hz -10 Hz
Available baud rate 4800bps~921600bps (default 9600bps)
Receiver type BDS:B1I+B1C GPS/QZSS/SBAS:L1C/A GALILEO:E1 GLONASS:L1
Operating Temperature -40°C To 85°C
Model WT-62-TD
Power Supply 1.8V~3.6V
Sensitivity Tracking: -163dbm Capture: -160dbm Cold Start -147dbm
Product Overview

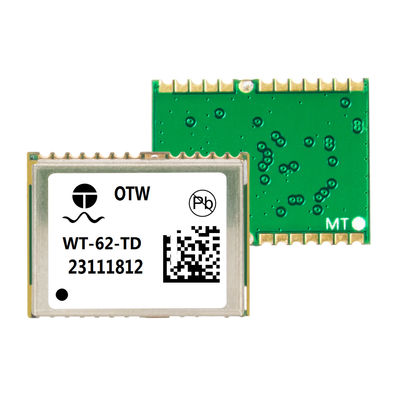

The WT-62-TD is a highly advanced and efficient GPS positioning module designed for accurate and reliable location tracking. Ideal for vehicle tracking, asset management, and outdoor sports equipment.
Key Features
  • Model: WT-62-TD
  • Receiver Type: BDS:B1I+B1C GPS/QZSS/SBAS:L1C/A GALILEO:E1 GLONASS:L1
  • Start-up Time: Cold Start: Average 28 seconds | Hot Start: Average 1 second
  • Operating Temperature: -40°C to 85°C
  • Compact dimensions: 16.0mm × 12.2mm × 2.4mm
  • 56-channel receiver for precise positioning
  • Low power consumption (1.8V~3.6V)
  • Flexible interface options: 2 URAT ports, 1 I2C port, 2 SPI ports
Technical Specifications
Accuracy Horizontal Position: average, SBAS < 3m
Sensitivity Tracking: -163dBm | Capture: -160dBm | Cold Start: -147dBm
Number of Channels 56
Protocol NMEA-0183 compliant or custom protocol
Customization & Ordering
Brand: OTW
Certifications: CE, ISO9001
Minimum Order: 1 piece
Price: USD 3.0 per piece
Delivery Time: 5-8 working days
Payment Methods: T/T, AliPay, PayPal
Daily Capacity: 10,000 pieces
Packaging & Shipping
Each module is securely packaged in a sturdy carton box with shock-absorbing materials. Includes all accessories and user manual.
Shipping Options:
Standard: 5-7 business days
Express: 2-3 business days
All shipments include tracking and insurance.
Frequently Asked Questions
Q: Where is this product manufactured?
A: Manufactured in China.
Q: What is the power requirement?
A: Operates on 1.8V~3.6V power supply.
Q: What is the default baud rate?
A: Default baud rate is 9600bps (configurable from 4800bps to 921600bps).
