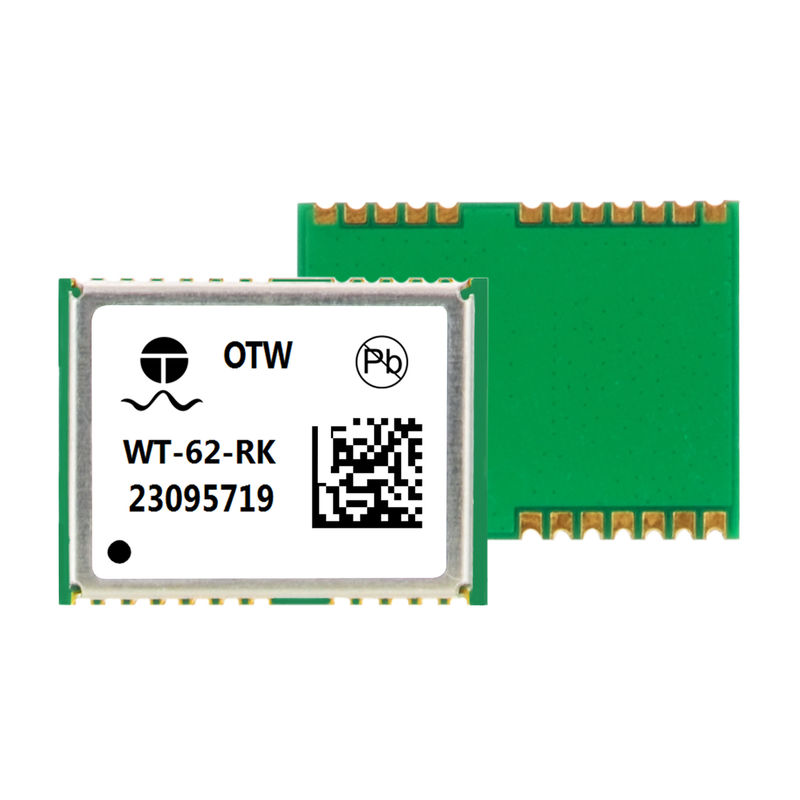

High Precision GPS UAV RTK Module Land Survey GPS Module 128 Channels

High Precision GPS UAV RTK Module Land Survey GPS Module 128 Channels
High Precision GPS UAV RTK Module Land Survey GPS Module 128 Channels
High Precision GPS UAV RTK Module Land Survey GPS Module 128 Channels High Precision GPS UAV RTK Module Land Survey GPS Module 128 Channels

Large Image :  High Precision GPS UAV RTK Module Land Survey GPS Module 128 Channels

Product Details:
Place of Origin: China
Brand Name: OTW
Certification: CE, ISO9001
Model Number: WT-62-RK
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $2.4 - 11.80/
Packaging Details: Carton box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal,Western Union
Supply Ability: 10000 pcs/day
Contact Now

High Precision GPS UAV RTK Module Land Survey GPS Module 128 Channels

Description
Operating Temperature: -40°C To 85°C Available Baud Rate: 4800bps~921600bps(default 115200bps)
Accuracy: Level 1cm+1ppm CEP50; Elevation 2cm+1ppm CEP50 Number Of Channels: 128 Channels
Power Supply: 1.8V~3.3V Antenna Type: Active Patch Antenna
Interface: UART/TTL Agreement: NMEA-0183 Compliant Protocol Or Custom Protocol
Highlight:

high precision gps module 128 channel

,

128 channels high precision gps module

,

precision gps module 128 channel

High Precision GPS UAV RTK Module Land Survey GPS Module 128 Channels
Product Specifications
Attribute Value
Operating Temperature -40°C To 85°C
Available baud rate 4800bps~921600bps(default 115200bps)
Accuracy Level 1cm+1ppm CEP50; Elevation 2cm+1ppm CEP50
Number of channels 128 channels
Power Supply 1.8V~3.3V
Antenna Type Active Patch Antenna
Interface UART/TTL
Agreement NMEA-0183 Compliant Protocol Or Custom Protocol
Product Overview
The GPS module is a cutting-edge product designed to provide high-precision position tracking for real-time positioning. With 128 channels and an update rate of 0.25 Hz to 10 Hz, this module accurately determines device locations with ease. Its compact size of 16.0mm × 12.2mm × 2.4mm makes it easy to integrate into any system.
Key Features
  • Advanced Positioning Technology: Utilizes satellite positioning technology for accurate location determination
  • Real-Time Tracking: Update rate of 0.25 Hz to 10 Hz for immediate monitoring
  • High Precision: Accuracy of up to 1cm+1ppm CEP50 for reliable tracking
  • Compact Design: Measures only 16.0mm × 12.2mm × 2.4mm for easy integration
  • Fast Start-up: Cold start in 28 seconds, hot start in 1 second
Technical Parameters
Sensitivity Tracking: -167dbm
Capture: -160dbm
Cold Start: -148dbm
Positioning mode A-GNSS, Double frequency RTK
Receiver type BDS: B1I/B1C & B2a
GPS/QZSS: L1C/A & L5
GLONASS: L1
Galileo: E1, E5a
Model WT-62-RK
Applications
  • Asset tracking for safety and security
  • Fleet management and vehicle monitoring
  • Personal tracking devices
  • Geographic surveying and mapping
  • Disaster management and emergency response
  • Outdoor sports and fitness tracking
Product Details
Brand: OTW
Model: WT-62-RK
Origin: China
Certifications: CE, ISO9001
Minimum Order: 1 piece
Price: USD 9.6 per piece
Delivery Time: 5-8 working days
Supply Capacity: 10,000 pcs/day
Packaging & Shipping
The module is packaged in sturdy, eco-friendly cardboard boxes with proper labeling. Shipping is via reputable courier services with tracking numbers provided. International customers may be responsible for applicable customs fees.
Frequently Asked Questions
Q: What is the brand name of this product?
A: The brand name is OTW.
Q: What is the model number?
A: The model number is WT-62-RK.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: Does this product have any certifications?
A: Yes, this product is CE and ISO9001 certified.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 piece.
