gnss module 4800bps Vehicle Tracking Intelligent GPS Module For Bike oem gps module

gnss module 4800bps Vehicle Tracking Intelligent GPS Module For Bike oem gps module
gnss module 4800bps Vehicle Tracking Intelligent GPS Module For Bike oem gps module
gnss module 4800bps Vehicle Tracking Intelligent GPS Module For Bike oem gps module gnss module 4800bps Vehicle Tracking Intelligent GPS Module For Bike oem gps module

Large Image :  gnss module 4800bps Vehicle Tracking Intelligent GPS Module For Bike oem gps module

Product Details:
Place of Origin: China
Brand Name: OTW
Certification: CE, ISO9001
Model Number: WT-62-AKL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $2.4 - 11.80/
Packaging Details: Carton box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal,Western Union
Supply Ability: 10000 pcs/day
Contact Now

gnss module 4800bps Vehicle Tracking Intelligent GPS Module For Bike oem gps module

Description
Operating Temperature: -40°C To 85°C Start-up Time: Cold Start：Average 29seconds Hot Start：Average 1 Seconds
Available Baud Rate: 4800bps~921600bps(default 9600bps) Interface: URAT/TTL
Update Rate: 1Hz -10 Hz Accuracy: Horizontal Position : Average, SBAS < 2.0m
Agreement: NMEA-0183 Compliant Protocol Or Custom Protocol
Highlight:

4800bps gps module for bike

,

vehicle tracking gps module for bike

,

vehicle tracking intelligent gps module

GNSS Module 4800bps Vehicle Tracking Intelligent GPS Module
Key Specifications
Attribute Value
Operating Temperature -40°C to 85°C
Start-up time Cold Start: Average 29 seconds
Hot Start: Average 1 second
Available baud rate 4800bps~921600bps (default 9600bps)
Interface URAT/TTL
Update Rate 1Hz - 10Hz
Accuracy Horizontal Position: Average, SBAS < 2.0m
Agreement NMEA-0183 Compliant Protocol or Custom Protocol
Product Overview

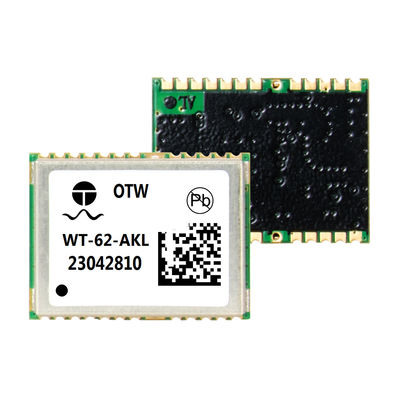

The WT-62-AKL GPS Positioning Module is a high-precision locator module designed to provide accurate location tracking for various applications. With its compact size (16.0mm x 12.2mm x 2.4mm) and versatile features, it's an ideal choice for any location-based project requiring real-time positioning.
Key Features
  • Supports BDS/GPS/GLONASS multi-system joint positioning and single system independent positioning
  • Antenna detection circuit with short circuit protection
  • Low power consumption with high sensitivity (Tracking: -162dBm)
  • Built-in low noise amplifier (LNA) and filter (SAW) for quick positioning even with passive antennas
  • 56-channel receiver for comprehensive satellite coverage
  • Compact and durable design suitable for harsh environments
Technical Parameters
Parameter Value
Model WT-62-AKL
Receiver Type BDS:B1I+B1C, GPS/QZSS/SBAS:L1C/A, GALILEO:E1, GLONASS:L1
Sensitivity Tracking: -162dBm
Capture: -160dBm
Cold Start: -148dBm
Dimensions 16.0mm × 12.2mm × 2.4mm
Antenna Type Active Patch Antenna
Applications
The WT-62-AKL GPS Module is suitable for a wide range of applications requiring precise location tracking:
  • Fleet management systems
  • Asset tracking solutions
  • Personal tracking devices
  • Vehicle navigation systems
  • Outdoor sports and activity trackers
  • Geographic surveying equipment
  • Industrial tracking applications
Ordering Information
Detail Information
Brand Name OTW
Certification CE, ISO9001
Minimum Order Quantity 1 piece
Price USD 3.10 per piece
Packaging Carton box
Delivery Time 5-8 working days
Payment Terms T/T, AliPay, PayPal
Supply Capacity 10,000 pieces/day
Frequently Asked Questions
Q: What is the operating temperature range of this module?
A: The module operates reliably from -40°C to 85°C, making it suitable for extreme environments.
Q: What positioning systems does this module support?
A: It supports BDS, GPS, GLONASS, GALILEO, and QZSS/SBAS systems for comprehensive global coverage.
Q: Can the baud rate be customized?
A: Yes, the baud rate is adjustable from 4800bps to 921600bps (default 9600bps) to suit various applications.
Q: What is the horizontal position accuracy?
A: With SBAS enabled, the module achieves an average horizontal accuracy of better than 2.0 meters.
