GPS Module pony-size Arduino 4800bps-921600bps oem gps module

GPS Module pony-size Arduino 4800bps-921600bps oem gps module
GPS Module pony-size Arduino 4800bps-921600bps oem gps module
GPS Module pony-size Arduino 4800bps-921600bps oem gps module GPS Module pony-size Arduino 4800bps-921600bps oem gps module

Large Image :  GPS Module pony-size Arduino 4800bps-921600bps oem gps module

Product Details:
Place of Origin: China
Brand Name: OTW
Certification: CE, ISO9001
Model Number: WT-62-AK
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $2.4 - 11.80/
Packaging Details: Carton box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal,Western Union
Supply Ability: 10000 pcs/day
Contact Now

GPS Module pony-size Arduino 4800bps-921600bps oem gps module

Description
Dimensions: 16.0mm X 12.2mm X 2.4mm Model: WT-62-AK
Agreement: NMEA-0183 Compliant Protocol Or Custom Protocol Update Rate: 1Hz -10 Hz
Start-up Time: Cold Start：Average 29seconds Hot Start：Average 1 Seconds Power Supply: 1.8V~3.6V
Interface: URAT/TTL
Highlight:

2 UART gps tracker module arduino

,

1 I2C gps tracker module arduino

,

gps tracker module 4800bps

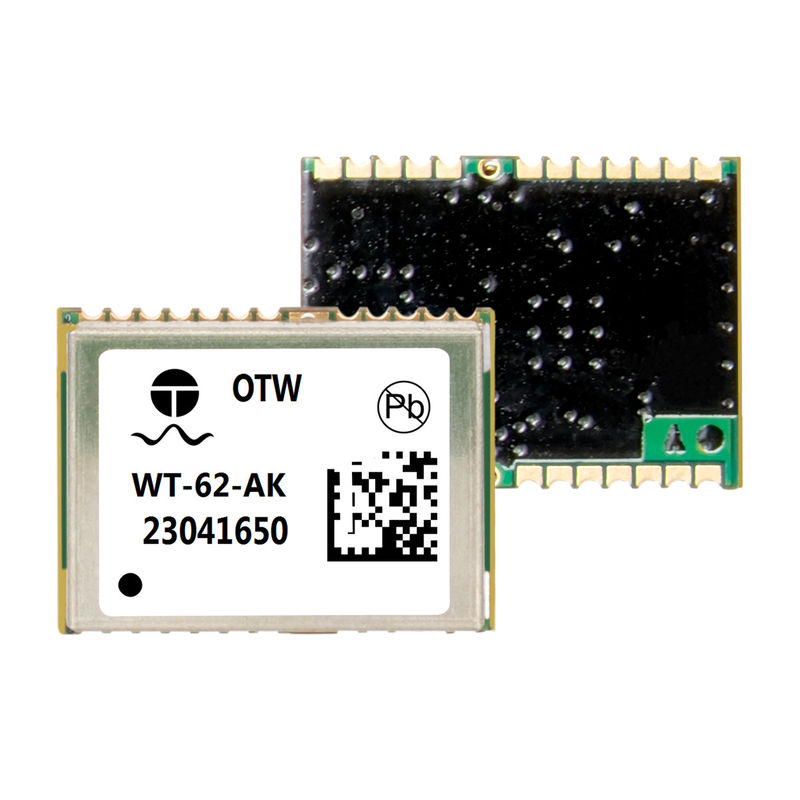

GPS Module for Arduino - WT-62-AK
Compact GPS positioning module with multi-system support (BDS, GPS, GALILEO, GLONASS) for accurate location tracking in vehicle fleet management and navigation applications.
Key Specifications
Attribute Value
Dimensions 16.0mm × 12.2mm × 2.4mm
Model WT-62-AK
Protocol NMEA-0183 Compliant or Custom
Update Rate 1Hz - 10Hz
Start-up Time Cold Start: 29s (avg), Hot Start: 1s (avg)
Power Supply 1.8V - 3.6V
Interface UART/TTL
Product Overview
The WT-62-AK is a high-performance GNSS module supporting multiple satellite systems (BDS, GPS, GALILEO, GLONASS) for precise positioning. With horizontal accuracy under 2.5m (SBAS enabled) and configurable update rates up to 10Hz, it's ideal for real-time tracking applications.
Key Features
  • 56-channel GNSS receiver with multi-system support
  • Compact size (16.0 × 12.2 × 2.4mm) for space-constrained applications
  • Fast hot start (1 second average)
  • Wide operating voltage range (1.8V-3.6V)
  • Configurable baud rate (4800bps-921600bps, default 9600bps)
  • Robust performance in extreme temperatures (-40°C to 85°C)
  • Multiple interface options: 2×UART, 1×I2C, 2×SPI
Technical Specifications
Accuracy: Horizontal position <2.5m (SBAS enabled)
Sensitivity: Tracking: -162dBm, Capture: -160dBm, Cold Start: -148dBm
Receiver Type: BDS (B1I+B1C), GPS/QZSS/SBAS (L1C/A), GALILEO (E1), GLONASS (L1)
Applications
  • Vehicle tracking and fleet management systems
  • Asset tracking and logistics solutions
  • Marine navigation and fishing vessel monitoring
  • Personal tracking devices and emergency response systems
  • Precision agriculture and surveying equipment
  • Drone navigation and aviation systems
  • Outdoor sports and fitness tracking devices
Ordering Information
Brand: OTW
Origin: China
Certifications: CE, ISO9001
MOQ: 1 piece
Price: $3/piece
Packaging: Protective carton box
Delivery: 5-8 working days
Supply Capacity: 10,000 pieces/day
Frequently Asked Questions
Q: What is the brand name of this product?
A: The brand name is OTW.
Q: What is the model number of this product?
A: The model number is WT-62-AK.
Q: Where is this product made?
A: This product is manufactured in China.
Q: What certifications does this product have?
A: It is certified with CE and ISO9001.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 piece.
