72-channel GPS GSM module 1Hz to 18Hz for pet positioning

72-channel GPS GSM module 1Hz to 18Hz for pet positioning
72-channel GPS GSM module 1Hz to 18Hz for pet positioning
72-channel GPS GSM module 1Hz to 18Hz for pet positioning 72-channel GPS GSM module 1Hz to 18Hz for pet positioning

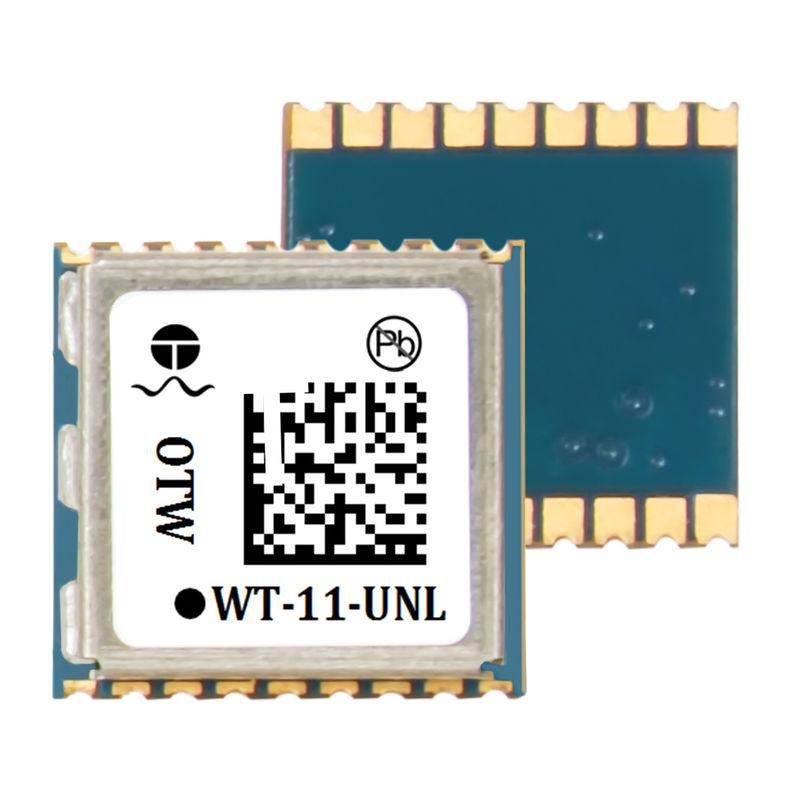

Large Image :  72-channel GPS GSM module 1Hz to 18Hz for pet positioning

Product Details:
Place of Origin: China
Brand Name: OTW
Certification: CE, ISO9001
Model Number: WT-11-UNL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $2.4 - 11.80/
Packaging Details: Carton box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal,Western Union
Supply Ability: 10000 pcs/day
Contact Now

72-channel GPS GSM module 1Hz to 18Hz for pet positioning

Description
Dimensions: 10.1mm * 9.7mm * 2.4mm (+/- 0.5mm) Start-up Time: Cold Start：Average 26seconds Hot Start：Average 1 Seconds
Operating Temperature: -40°C To 85°C Receiver Type: GPS/QZSS :L1C/A Galileo:E1-B/C GLONASS:L1OF BeiDou:B1|
Number Of Channels: 72 Channels Interface: URAT/TTL
Model: WT-11-UNL Power Supply: 1.65V~3.6V
Highlight:

gps gsm tracker module 1Hz

,

gps gsm tracker module 18Hz

,

72 channels gps tracker module

72-channel GPS GSM Module 1Hz to 18Hz for Pet Positioning
Product Specifications
Attribute Value
Dimensions 10.1mm * 9.7mm * 2.4mm (+/- 0.5mm)
Start-up time Cold Start: Average 26 seconds
Hot Start: Average 1 second
Operating Temperature -40°C To 85°C
Receiver type GPS/QZSS :L1C/A Galileo:E1-B/C GLONASS:L1OF BeiDou:B1
Number of channels 72 channels
Interface URAT/TTL
Model WT-11-UNL
Power Supply 1.65V~3.6V
Product Overview

The GPS Positioning Module WT-11-UNL is a high-quality, reliable device that provides accurate location tracking and navigation capabilities. Designed for various applications including pet tracking, vehicle monitoring, and marine equipment.

Key Features
  • Fast update rate of 1Hz to 18Hz for real-time tracking
  • Excellent sensitivity: tracking (-167dbm), capture (-158dbm), cold start (-148dbm)
  • Compact dimensions: 10.1mm × 9.7mm × 2.4mm
  • Wide operating temperature range: -40°C to 85°C
  • 72-channel receiver for superior signal acquisition
  • NMEA-0183 compliant protocol with custom protocol option
  • Versatile power supply: 1.65V~3.6V
  • Active patch antenna for stable signal reception
Technical Parameters
Product Name Positioning Module
Product Type Locater Module, GPS Module
Accuracy Horizontal Position: Average, SBAS < 2.0m
Available Baud Rate 4800bps~921600bps (default 9600bps)
Sensitivity Tracking: -167dbm
Capture: -158dbm
Cold Start: -148dbm
Applications
  • Pet tracking and positioning
  • Vehicle tracking and navigation
  • Outdoor activities (hiking, camping)
  • Marine navigation
  • Fleet management
  • Geographical surveys and mapping
  • Emergency and rescue operations
Frequently Asked Questions
Q: What is the model number of this product?
A: The model number is WT-11-UNL.
Q: What certifications does this product have?
A: This product is certified by CE and ISO9001.
Q: What is the minimum order quantity?
A: The minimum order quantity is 1 piece.
Q: What is the delivery time?
A: The delivery time is 5-8 working days.
