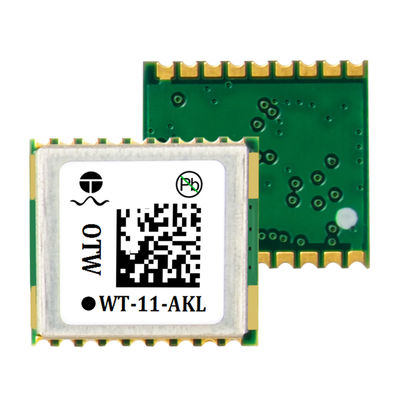

3.6V To 5.5V A-GNSS GPS Module For Pet Tracking Collar

3.6V To 5.5V A-GNSS GPS Module For Pet Tracking Collar
3.6V To 5.5V A-GNSS GPS Module For Pet Tracking Collar
3.6V To 5.5V A-GNSS GPS Module For Pet Tracking Collar 3.6V To 5.5V A-GNSS GPS Module For Pet Tracking Collar

Large Image :  3.6V To 5.5V A-GNSS GPS Module For Pet Tracking Collar

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-11-AKL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $2.4 - 11.80/
Packaging Details: Carton box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal,Western Union
Supply Ability: 10000 pcs/day
Contact Now

3.6V To 5.5V A-GNSS GPS Module For Pet Tracking Collar

Description
Power Supply: 3.6V~5.5V Agreement: NMEA-0183 Compliant Protocol Or Custom Protocol
Available Baud Rate: 4800bps~921600bps(default 115200bps) Interface: URAT/TTL
Sensitivity: Tracking: -162dbm Capture: -160dbm Cold Start -148dbm Positioning Mode: A-GNSS
Start-up Time: Cold Start：Average 29seconds Hot Start：Average 1 Seconds Dimensions: 10.1mm * 9.7mm * 2.4mm (+/- 0.5mm)
Highlight:

GPS Module For Pet Tracking Collar

,

3.6V A-GNSS GPS Module

,

5.5V GNSS GPS Module

3.6V To 5.5V A-GNSS GPS Module For Pet Tracking Collar
Key Specifications
Attribute Value
Power Supply 3.6V~5.5V
Agreement NMEA-0183 Compliant Protocol Or Custom Protocol
Available Baud Rate 4800bps~921600bps (default 115200bps)
Interface URAT/TTL
Sensitivity Tracking: -162dbm
Capture: -160dbm
Cold Start: -148dbm
Positioning Mode A-GNSS
Start-up Time Cold Start: Average 29 seconds
Hot Start: Average 1 second
Dimensions 10.1mm × 9.7mm × 2.4mm (+/- 0.5mm)
Product Overview

This compact GPS module is specifically designed for pet tracking collars, featuring A-GNSS technology for fast and accurate positioning. With its small form factor (10.1mm × 9.7mm × 2.4mm) and low power consumption, it's ideal for wearable pet tracking solutions.

Key Features
  • Supports BDS/GPS/GLONASS multi-system joint positioning
  • Active antenna detection and protection
  • Flexible power management solutions (2.7~3.6V or 1.8V to 3.3V)
  • RTC and backup circuit power supplies as low as 1.4V
  • Built-in low noise amplifier (LNA) and filter (SAW)
  • Compact dimensions: 10.1mm × 9.7mm × 2.5mm
Technical Parameters
Parameter Specification
Update Rate 1Hz - 10Hz
Receiver Type BDS:B1I+B1C GPS/QZSS:L1C/A GLONASS:L1
Operating Temperature -40°C to 85°C
Applications

This versatile GPS module is suitable for various applications including:

  • Pet tracking collars and wearable devices
  • Vehicle tracking systems
  • Personal tracking devices
  • Precision agriculture and forestry management
  • Portable equipment and timing applications
Customization Options

We offer comprehensive customization services for this GPS module:

  • Multiple interface options: 2 URAT, 1 I2C, 2 SPI
  • Flexible baud rate configuration (4800bps~921600bps)
  • Custom protocol support
  • Minimum order quantity: 1 piece
  • Fast delivery: 5-8 working days
Packaging & Shipping

Each module is carefully packaged in a protective carton box with foam inserts to prevent damage during transit. Standard package includes:

  • 1 GPS Module
  • User manual
  • Required accessories

Shipping options include UPS, FedEx, and other reliable carriers with tracking provided.

Frequently Asked Questions
What is the brand and model of this product?
Brand: OTW, Model: WT-11-AKL
What is the minimum order quantity?
Minimum order quantity is 1 piece.
What are the payment options?
We accept T/T, AliPay, and PayPal.
What is the delivery time?
Standard delivery time is 5-8 working days.
What is the supply capacity?
We can supply up to 10,000 pieces per day.
