Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-11-RK
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: NA
Delivery Time: 7-10working days after receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: More than tens of thousands of pieces
Contact Now

Ultra-high Precision Dual-frequency RTK Positioning Module Low Cost Gps Module oem gps module

Description
Model Number: WT-11-RK Application: Positioning, Surveying And Mapping, Etc
Type: GNSS Module Output Mode: UART+TTL+R232
Baud Rate: 4800bps-921600bps,Default115200bps NMEA Messages: RMC,VTG,GGA,GSA,GSV,GLL
Voltage: 1.8V To 3.3V Size: 9.7mm*10.1mm*2.4mm
Highlight:

Dual-frequency RTK gps Module

,

Dual-frequency RTK Positioning Module

,

Ultra-high precision gps Module

Product descriptions from the supplier

Overview

Ultra-high Precision Dual-frequency RTK Positioning Module Low Cost Gps Module oem gps module 0
Application:
● Base station, power, communication positioning field ● Surveying and mapping products such as area measurement and distance measurement ● Synchronize UTC time and timing areas ● Positioning and measurement in complex environments and high-speed motion scenarios ● Intelligent Internet of Things, intelligent driving, drones and other fields ● Shared bikes, wearable devices, etc

Ultra-high Precision Dual-frequency RTK Positioning Module Low Cost Gps Module oem gps module 1
Features:
●1010 size & 18PIN LCC package, PIN 2 PIN compatible with industry mainstream modules(Minimum feature set) ●Support BDS B1I/B2a/B1C, GPS L1C/A/L5, GAL E1/E5a, GLONASS L1 four-system dual-frequency ●Built-in dual frequency RTK algorithm ● Ultra-high precision, can achieve centimeter-level positioning ● Low cost, low power consumption ● Fast positioning ● Ultra-small size, overall size :9.7x10.1x2.4mm

Ultra-high Precision Dual-frequency RTK Positioning Module Low Cost Gps Module oem gps module 2



Bottom view
Module pin allocation
Ultra-high Precision Dual-frequency RTK Positioning Module Low Cost Gps Module oem gps module 3
                                                      Module performance
Model WT-11-RK
Receiver type

BDS:B1I/B1C & B2a
GPS/QZSS:L1C/A & L5
GLONASS:L1
Galileo:E1,E5a
Arithmetic Integration RTK
Agreement NMEA-0183 compliant protocol or custom protocol
Available baud rate 4800bps~921600bps(default 115200bps)
Channel 128
Sensitivity Tracking: -167dbm Capture: -160dbm Cold start -148dbm
Cold start Average 28seconds
Hot start Average 1 seconds
Accuracy Level 1cm+1ppm CEP50; Elevation 2cm+1ppm CEP50
18Max Height 18000 M
Max Speed 515 m/s
Max Acceleration ≦ 4G
Regeneration frequency 0.25 Hz -10 Hz
Positioning mode A-GNSS,Double frequency RTK
Port
Port

UART/TTL/R232


Physical property
Type 18PIN LCC package

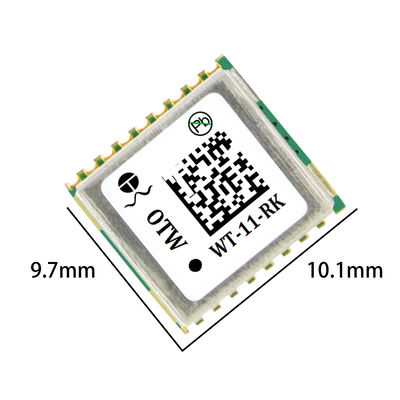

Size 10.1mm * 9.7mm * 2.4mm (+/- 0.5mm)
Power supply
Voltage 1.8V~3.3V
Power Consume

Running mode: 100mW@1.8V, Standby mode: < 20μW
Oerating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
