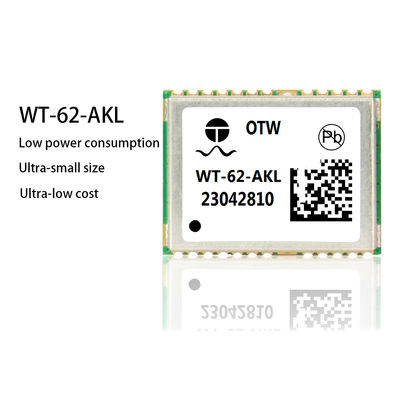

Smart 4G GPS Tracker Locator GNSS Module Anti-Theft For Car And Motorcycle

Smart 4G GPS Tracker Locator GNSS Module Anti-Theft For Car And Motorcycle
Smart 4G GPS Tracker Locator GNSS Module Anti-Theft For Car And Motorcycle
Smart 4G GPS Tracker Locator GNSS Module Anti-Theft For Car And Motorcycle Smart 4G GPS Tracker Locator GNSS Module Anti-Theft For Car And Motorcycle

Large Image :  Smart 4G GPS Tracker Locator GNSS Module Anti-Theft For Car And Motorcycle

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-62-AKL
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: US $2.4 - 11.80/
Delivery Time: 7-10working days after receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: Above US$100 Million
Contact Now

Smart 4G GPS Tracker Locator GNSS Module Anti-Theft For Car And Motorcycle

Description
Type: GNSS Module Country Of Origin: CHINA
Brand: OTW Operating Mode: GPS+GLONASS+GALILEO+ BDS
Output Mode: UART+TTL+R232 NMEA Messages: RMC,VTG,GGA,GSA,GSV,GLL
Voltage: 1.8V To 3.6V Power Consumption: 23 MA , @3.3V
Highlight:

GPS Tracker GNSS Module

,

GPS Locator GNSS Module

Smart 4G GPS Tracker Locator Car and Motorcycle Anti-Theft GPS Tracking Devices with Real Time GNSS Module



Product descriptions from the supplier

Overview

Smart 4G GPS Tracker Locator GNSS Module Anti-Theft For Car And Motorcycle 0
Application:
● Vehicle and ship positioning and navigation
● Time Service
● Wearable devices
● Mobile phones, tablets and other portable devices
Smart 4G GPS Tracker Locator GNSS Module Anti-Theft For Car And Motorcycle 1
Features:
● Support BDS/GPS/GLONASS multi-system joint positioning and single system independent positioning.
● With antenna detection circuit and short circuit protection
● Low power consumption, high sensitivity
● Built-in low noise amplifier LNA and filter SAW, even passive antennas can be quickly positioned
Smart 4G GPS Tracker Locator GNSS Module Anti-Theft For Car And Motorcycle 2



Bottom view
Module pin allocation
Smart 4G GPS Tracker Locator GNSS Module Anti-Theft For Car And Motorcycle 3
                                                      Module performance
Model WT-62-AKL
Receiver type

BDS:B1I+B1C
GPS/QZSS/SBAS:L1C/A
GALILEO:E1
GLONASS:L1
Agreement NMEA-0183 compliant protocol or custom protocol
Available baud rate 4800bps~921600bps(default 9600bps)
Channel 56
Sensitivity Tracking: -162dbm Capture: -160dbm Cold start -148dbm
Cold start Average 29seconds
Hot start Average 1 seconds
Accuracy Horizontal Position : average, SBAS < 2.5m
18Max Height 18000 M
Max Speed 515 m/s
Max Acceleration ≦ 4G
Regeneration frequency 1Hz -10 Hz
Positioning mode A-GNSS
Port
Port

2 URAT
1 I2C
2 SPI


Physical property
Type 24 pin stamp holes
Size 16.0mm*12.2mm*2.4mm(+/- 0.5mm)
Power supply
Voltage 1.8V~3.6V
Power Consume

Maximum performance: Capture :23mA, tracking (power saving mode /1HZ) : 5mA
Oerating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃

Tag:

GPS Module,

GPS GNSS Module,

gps tracker module
