Product Description:
Application:
The product is highly versatile and can be used in various applications, including but not limited to:
- Car navigation and traffic recorder
- Drones and law enforcement cameras
- HD camera, surveying and mapping
- Handheld devices
- Smart wearables
- Smart agriculture
Product features:
The product boasts several noteworthy features, including:
- Concurrent reception of up to 3 GNSS, including GPS, Galileo, GLONASS, and BeiDou
- Minimal current consumption, allowing for longer usage times
- Excellent positioning accuracy in urban canyons and other challenging environments
- Comes with security and integrity protection features to ensure data safety
- Supports all satellite augmentation systems for optimal performance
Features:

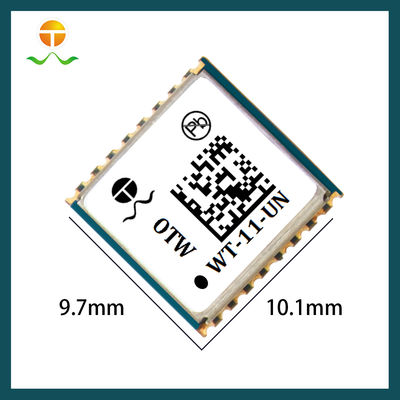

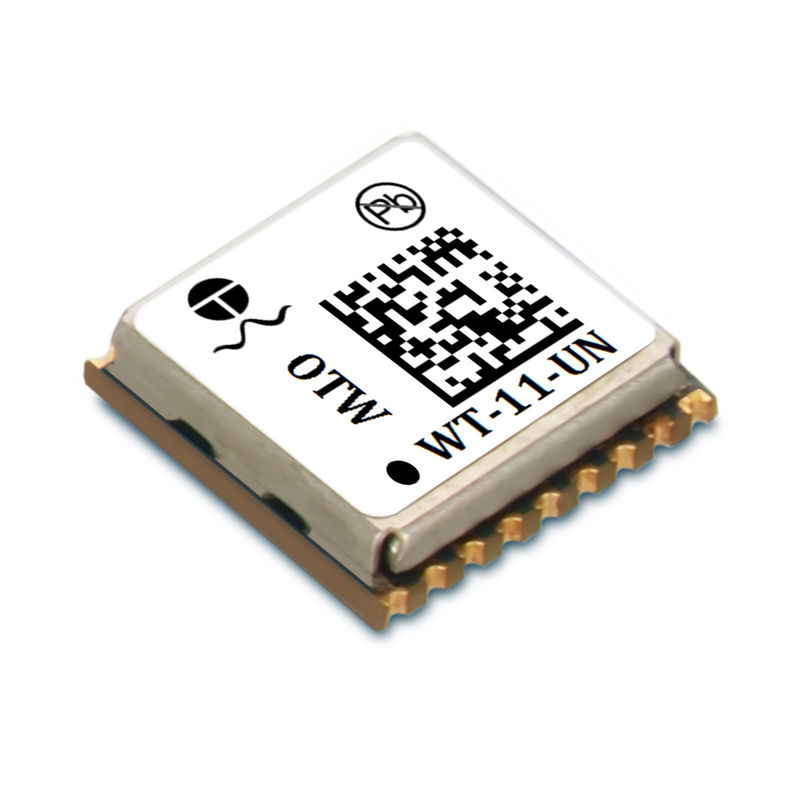

- Product Name: GPS Module
- Type: 18PIN LCC Package
- Working Temperature: -40℃ To 85℃
- Max Acceleration: ≦ 4G
- Receiver type: GPS/QZSS :L1C/A Galileo:E1-B/C GLONASS:L1OF BeiDou:B1|
- Start-up time: The Average Cold Start Is 26 Seconds And The Average Hot Start Is 1 Second
This GPS Module is a Location Tracking Module, Determining Module, and GPS Positioning Module all in one.
Technical Parameters:
| Model Number |
WT-11-UN |
| Accuracy |
2.0M |
| Working Temperature |
-40℃ To 85℃ |
| Storage Temperature |
-40℃ To 85℃ |
| Port |
UART/SPI/12C |
| Start-up time |
The Average Cold Start Is 26 Seconds And The Average Hot Start Is 1 Second |
| Type |
18PIN LCC Package |
| Sensitivity |
Tracking :-167 DBM Capture :-158 DBM Cold Start :-148 DBM Hot Start :-157 DBM |
| Max Speed |
515 M/s |
| Max Height |
18000 M |
This is a Locating Module, Locater Module, Locater Module.
Applications:
The OTW WT-11-UN GPS Module is a determining module that is designed for various location-based applications. This locating module is suitable for a wide range of scenarios that require accurate and reliable positioning. The module can be used for both indoor and outdoor applications and is perfect for tracking objects or vehicles.
With a high accuracy of 2.0M, this GPS module is ideal for use in scenarios where precise positioning is required. The A-GNSS positioning mode enables the module to quickly and accurately acquire location information, making it an ideal choice for applications where fast location updates are needed.
The module's low power consumption is another attractive feature, with an operation mode of 21 MA@3.0V and a power-saving mode of 5.3 MA@3.0V (PSM, 1hz). This makes it a cost-effective solution for battery-powered devices that require location tracking.
The OTW WT-11-UN GPS Module is highly versatile and can be used in various applications such as vehicle tracking, asset tracking, personal tracking, and more. Its compact size and easy integration make it an ideal choice for OEMs and system integrators who need a reliable and accurate locater module.
In terms of compatibility, the module supports UART, SPI, and I2C ports, and is NMEA-0183 compliant protocol ready or custom protocol, making it easy to integrate into different systems. The module is manufactured in China and has a minimum order quantity of 1 piece, with a price of USD 5$ per piece. The packaging details are in a carton box and delivery time takes 5-8 working days. Payment terms are T/T, AliPay, or PayPal, and the supply ability is 10,000 pcs/day.
