Product Description:
Application:
Our product has a wide range of applications, which includes:
- Car navigation and traffic recorder
- Drones and law enforcement cameras
- HD camera for surveying and mapping
- Handheld device
- Smart wear
- Smart agriculture
Product Features:
Our product has the following features:
- Concurrent reception of up to 3 Global Navigation Satellite Systems (GNSS) such as GPS, Galileo, GLONASS and BeiDou.
- Minimum current consumption, allowing for extended battery life.
- Excellent positioning accuracy in urban canyons, ensuring proper navigation.
- With security and integrity protection to keep your data safe.
- Supports all satellite augmentation systems for increased accuracy and reliability.
- Built-in low noise amplifier (LNA) and filter SAW to reduce noise and improve signal quality.
Features:
- Product Name: GPS Positioning Module
- Voltage: 1.65~3.6V
- Accuracy: 2M
- Storage Temperature: -40℃ To 85℃
- Port: UART/SPI/12C

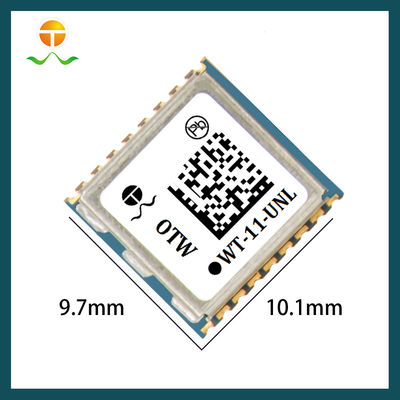

- Size: 10.1mm * 9.7mm * 2.5Mm (+/- 0.5mm)
- This GPS Module is a Locater Module
- It is a Determining Module for GPS positioning
Technical Parameters:
| Technical Parameter |
Description |
| Product Name |
GPS Positioning Module |
| Voltage |
1.65~3.6V |
| Humidity Range |
5% To 95% Non-condensing |
| Storage Temperature |
-40℃ To 85℃ |
| Positioning Mode |
A-GNSS |
| Available Baud Rate |
4800bps~921600bps(default 9600bps) |
| Working Temperature |
-40℃ To 85℃ |
| Max Speed |
515 M/s |
| Power Consume |
Operation Mode: 21 MA@3.0V, Power Saving Mode: 5.3 MA@3.0V (PSM, 1hz) |
| Agreement |
NMEA-0183 Compliant Protocol Or Custom Protocol |
| Max Acceleration |
≦ 4G |
| Product Type |
Determining Module, Location Tracking Module |
Applications:
The GPS module is also known as a Locating Module or Determining Module. It is widely used in navigation, tracking, and mapping applications. The product can be used in a variety of industries, including automotive, transportation, logistics, and agriculture.
The OTW GPS module has a low power consumption rate, making it ideal for battery-powered devices. The module consumes 21 MA@3.0V in operation mode and 5.3 MA@3.0V in power-saving mode (PSM, 1hz). The GPS module has a start-up time of 26 seconds on average for cold start and 1 second for hot start.
The GPS module uses A-GNSS positioning mode, which provides accurate and fast location data. The module is also compatible with various baud rates, ranging from 4800bps to 921600bps. The default baud rate is 9600bps.
The OTW GPS module is packed in a carton box and can be delivered within 5-8 working days. The minimum order quantity is one piece, and the price is USD 5.2-6.7$ per piece. The product can be purchased using T/T, AliPay, or PayPal. The supply ability is 10000 pcs/day.
