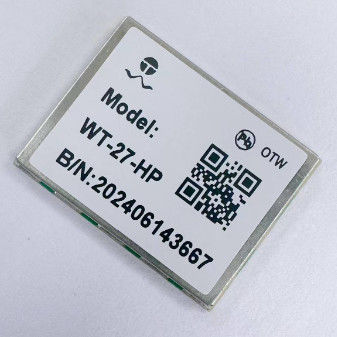

OTW WT-27-HP High Precision Multi-GNSS Development Board with Wide Temperature Range for GPS Module Development

OTW WT-27-HP High Precision Multi-GNSS Development Board with Wide Temperature Range for GPS Module Development
OTW WT-27-HP High Precision Multi-GNSS Development Board with Wide Temperature Range for GPS Module Development OTW WT-27-HP High Precision Multi-GNSS Development Board with Wide Temperature Range for GPS Module Development OTW WT-27-HP High Precision Multi-GNSS Development Board with Wide Temperature Range for GPS Module Development OTW WT-27-HP High Precision Multi-GNSS Development Board with Wide Temperature Range for GPS Module Development OTW WT-27-HP High Precision Multi-GNSS Development Board with Wide Temperature Range for GPS Module Development

Large Image :  OTW WT-27-HP High Precision Multi-GNSS Development Board with Wide Temperature Range for GPS Module Development

Product Details:
Place of Origin: CHINA
Brand Name: OTW
Model Number: WT-27-HP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $65.42 - 70.42/ Piece
Packaging Details: Paper box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal,Western Union
Supply Ability: 10000 pcs/day
Contact Now

OTW WT-27-HP High Precision Multi-GNSS Development Board with Wide Temperature Range for GPS Module Development

Description
Working Temperature: -40℃ To 85℃ Available Baud Rate: 4800bps~921600bps(default 38400bps)
Accuracy: 1 M + 1 Ppm CEP Cold Start: Average 24 Seconds
Sensitivity: Tracking: -167dbm Capture: -160dbm Cold Start -148dBm Hot Start: -157dbm Voltage: 3.0V~3.6V（typical 3.3V）
Regeneration: 1Hz -20 Hz(default 1Hz） Port: 2 PCS 1.0mm Spacing 4Pins Connector，USB
Highlight:

ZED-F9P-02B drone positioning board

,

development board for high-speed motion

,

intelligent driving positioning board

OTW WT-27-HP High Precision Full-Frequency GNSS Module
Advanced Positioning for Complex Environments

The OTW WT-27-HP Development Board is a high-performance GPS module capable of simultaneously receiving signals from L1/L2/L5 satellite bands. Designed for positioning and measurement in complex environments and high-speed motion scenarios, it's ideal for intelligent drone driving and demanding navigation applications.

OTW WT-27-HP High Precision Multi-GNSS Development Board with Wide Temperature Range for GPS Module Development 0
Product Overview

This powerful development board supports multi-GNSS raw measurement data output, offering developers access to raw measurement data from GPS, GLONASS, Galileo, and BeiDou satellite systems. With configurable regeneration rates from 1Hz to 20Hz and operation in extreme temperatures from -40℃ to 85℃, it provides reliable performance for industrial and outdoor applications.

Key Features
  • Product Name: Development Board
  • Size: 43.11mm × 30mm × 13mm (±0.5mm)
  • Multi-GNSS Support: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
  • Hot Start: Average 2 seconds
  • Dual Connectivity: 2× 1.0mm spacing 4-pin connectors + USB
  • RAWX: Multi-GNSS raw measurement data output
Technical Specifications
Parameter Specification
Model WT-27-HP (Development Board)
Receiver Type GPS: L1C/A L2C
GLONASS: L1OF L2OF
Galileo: E1-B/C E5b
BeiDou: B1I B2I
QZSS: L1C/A L2C
SBAS: WAAS, EGNOS, MSAS, GAGAN, SouthPAN
Algorithm Integrated RTK algorithm
Protocol NMEA-0183, ublox binary and NMEA Command
Baud Rate 4800bps~921600bps (default 38400bps)
Channels 184
Sensitivity Tracking: -167dBm, Capture: -160dBm, Cold Start: -148dBm, Hot Start: -157dBm
Start Times Cold Start: 24 seconds, Hot Start: 2 seconds
Accuracy 0.01 m + 1 ppm CEP
Operating Range Max Height: 50,000m, Max Speed: 500 m/s, Max Acceleration: ≤4G
Power Voltage: 3.0V~3.6V (typical 3.3V), Consumption: 80 mA @3.3V
Environmental Working Temperature: -40℃ to 85℃, Storage: -40℃ to 105℃, Humidity: 5% to 95% non-condensing
Applications

Brand: OTW | Model: WT-27-HP | Origin: China

The OTW WT-27-HP development board is ideal for:

  • Automotive navigation systems
  • Aerial and marine navigation
  • Geographic information systems (GIS)
  • Precision agriculture
  • Outdoor recreation and sports tracking
  • Surveying and mapping
  • Timing and synchronization for communication systems
  • Emergency and disaster response
Packaging & Shipping

Each development board is individually wrapped in anti-static bags and securely packaged in sturdy cardboard boxes with foam inserts. We ship within 24 hours using reliable carriers and provide tracking numbers for all orders. Expedited shipping options are available for urgent requirements.

Frequently Asked Questions
What is the brand name of this product?
The brand name is OTW.
What is the model number?
The model number is WT-27-HP.
Where is this product manufactured?
This product is manufactured in China.
What is the minimum order quantity?
Minimum order quantity is 1 piece.
What is the price?
USD 78.12 per piece.
What is the delivery time?
Delivery time is 5-8 working days.
What payment methods are accepted?
We accept T/T, AliPay, and PayPal.
What is the supply capacity?
Supply capacity is 10,000 pieces per day.
