WT-62-RK High Precision RTK GNSS Module with 0.25Hz-10Hz Update Frequency

WT-62-RK High Precision RTK GNSS Module with 0.25Hz-10Hz Update Frequency
WT-62-RK High Precision RTK GNSS Module with 0.25Hz-10Hz Update Frequency WT-62-RK High Precision RTK GNSS Module with 0.25Hz-10Hz Update Frequency WT-62-RK High Precision RTK GNSS Module with 0.25Hz-10Hz Update Frequency WT-62-RK High Precision RTK GNSS Module with 0.25Hz-10Hz Update Frequency WT-62-RK High Precision RTK GNSS Module with 0.25Hz-10Hz Update Frequency WT-62-RK High Precision RTK GNSS Module with 0.25Hz-10Hz Update Frequency

Large Image :  WT-62-RK High Precision RTK GNSS Module with 0.25Hz-10Hz Update Frequency

Product Details:
Place of Origin: China
Model Number: WT-62-RK
Payment & Shipping Terms:
Price: CN¥68.48/pieces 1-499 pieces

WT-62-RK High Precision RTK GNSS Module with 0.25Hz-10Hz Update Frequency

Description
Type: GNSS Module Country Of Origin: Shenzhen Guangdong, China
Brand: OTW Chipset: XX
Application: Positioning, Surveying And Mapping, Etc Operating Mode: GPS+GLONASS+GALILEO+ BDS
Output Mode: UART+TTL Baud Rate: 4800bps-921600bps,Default115200bps
NMEA Messages: RMC,VTG,GGA,GSA,GSV,GLL Update Frequency: 0.25Hz-10Hz(default 1Hz)
Voltage: 1.8V To 3.3V Power Consumption: 103mW @1.8V
Size: 12.2mm*16mm*2.4mm
Highlight:

High Precision RTK GNSS module

,

0.25Hz-10Hz GNSS Module

,

high precision positioning RTK GNSS Module

WT-62-RK High Precision RTK GNSS Module
0.25Hz-10Hz Update Frequency for Professional Positioning Applications
WT-62-RK High Precision RTK GNSS Module with 0.25Hz-10Hz Update Frequency 0 WT-62-RK High Precision RTK GNSS Module with 0.25Hz-10Hz Update Frequency 1 WT-62-RK High Precision RTK GNSS Module with 0.25Hz-10Hz Update Frequency 2
Product Specifications
Attribute Value
Type GNSS Module
Brand OTW
Chipset XX
Operating Mode GPS+GLONASS+GALILEO+BDS
Output Mode UART+TTL
Baud Rate 4800bps-921600bps (Default 115200bps)
Update Frequency 0.25Hz-10Hz (Default 1Hz)
Voltage 1.8V to 3.3V
Power Consumption 103mW @1.8V
Dimensions 12.2mm × 16mm × 2.4mm
Technical Performance
Model WT-62-RK
Receiver Type BDS: B1I/B1C & B2a
GPS/QZSS: L1C/A & L5
GLONASS: L1
Galileo: E1, E5a
Arithmetic Integration RTK
Protocol NMEA-0183 compliant or custom
Sensitivity Tracking: -167dBm
Capture: -160dBm
Cold start: -148dBm
Start Time Cold start: 28s average
Hot start: 1s average
Accuracy Level: 1cm+1ppm CEP50
Elevation: 2cm+1ppm CEP50
Max Height 18,000m
Max Speed 515m/s
Positioning Mode A-GNSS, Double frequency RTK
Physical & Environmental Specifications

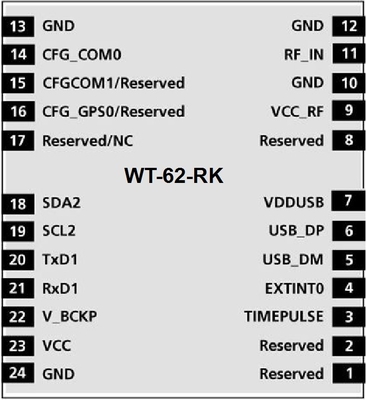

Package Type 24PIN LCC

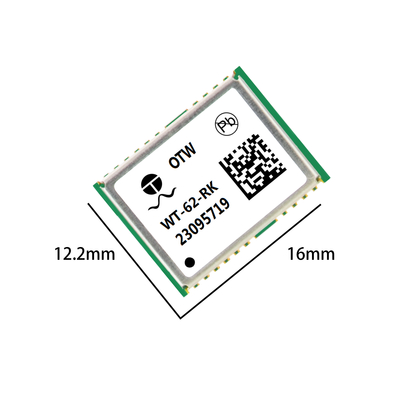

Dimensions 12.2mm × 16mm × 2.4mm (±0.5mm)
Voltage Range 1.8V~3.3V
Power Consumption Running: 103mW@1.8V
Standby: <20μW
Operating Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
Humidity Range 5% to 95% non-condensing
WT-62-RK High Precision RTK GNSS Module with 0.25Hz-10Hz Update Frequency 3 WT-62-RK High Precision RTK GNSS Module with 0.25Hz-10Hz Update Frequency 4 WT-62-RK High Precision RTK GNSS Module with 0.25Hz-10Hz Update Frequency 5
