WT-62-UNL Micro GPS Tracker Module with UART+TTL Output for Vehicle Tracking

WT-62-UNL Micro GPS Tracker Module with UART+TTL Output for Vehicle Tracking
WT-62-UNL Micro GPS Tracker Module with UART+TTL Output for Vehicle Tracking WT-62-UNL Micro GPS Tracker Module with UART+TTL Output for Vehicle Tracking WT-62-UNL Micro GPS Tracker Module with UART+TTL Output for Vehicle Tracking WT-62-UNL Micro GPS Tracker Module with UART+TTL Output for Vehicle Tracking WT-62-UNL Micro GPS Tracker Module with UART+TTL Output for Vehicle Tracking WT-62-UNL Micro GPS Tracker Module with UART+TTL Output for Vehicle Tracking

Large Image :  WT-62-UNL Micro GPS Tracker Module with UART+TTL Output for Vehicle Tracking

Product Details:
Place of Origin: China
Model Number: WT-62-UNL
Payment & Shipping Terms:
Price: CN¥37.81/pieces 1-499 pieces
Contact Now

WT-62-UNL Micro GPS Tracker Module with UART+TTL Output for Vehicle Tracking

Description
Type: GNSS Module Country Of Origin: Shenzhen Guangdong, China
Brand: OTW Chipset: XX
Application: Positioning, Surveying And Mapping, Etc Operating Mode: GPS+GLONASS+GALILEO+ BDS
Output Mode: UART+TTL Baud Rate: 4800bps-921600bps,Default9600bps
NMEA Sentences: RMC,VTG,GGA,GSA,GSV,GLL Update Frequency: 1Hz-18Hz(default 1Hz)
Voltage: 1.65V To 3.6V Power Consumption: 21 MA , @3.0V

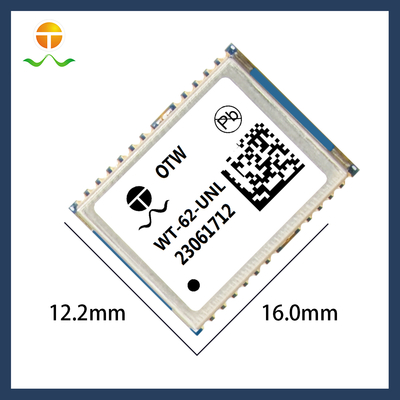

Size: 12.2mm*16mm*2.4mm
Highlight:

Micro GPS tracker module

,

UART+TTL output GPS Tracker Module

,

Vehicle GPS Tracker Module

WT-62-UNL Micro GPS Tracker Module with UART+TTL Output
WT-62-UNL Micro GPS Tracker Module with UART+TTL Output for Vehicle Tracking 0 WT-62-UNL Micro GPS Tracker Module with UART+TTL Output for Vehicle Tracking 1 WT-62-UNL Micro GPS Tracker Module with UART+TTL Output for Vehicle Tracking 2
Product Overview

Compact GNSS module with multi-constellation support, designed for precise vehicle tracking and positioning applications. Features UART+TTL output and low power consumption.

Key Specifications
Attribute Value
Type GNSS Module
Brand OTW
Operating Mode GPS+GLONASS+GALILEO+BDS
Output Mode UART+TTL
Baud Rate 4800bps-921600bps (Default 9600bps)
Voltage 1.65V to 3.6V
Dimensions 12.2mm × 16mm × 2.4mm
Technical Performance
Receiver Type GPS/QZSS:L1C/A, Galileo:E1-B/C, GLONASS:L1OF, BeiDou:B1
Protocol NMEA-0183 compliant or custom
Sensitivity Tracking: -167dBm, Capture: -158dBm, Cold start: -148dBm
Start Time Cold start: 26s (avg), Hot start: 1s (avg)
Position Accuracy Horizontal: <2.0m (SBAS enabled)
Update Rate 1Hz-18Hz (default 1Hz)
Physical Characteristics
Interface 24-pin stamp holes
Dimensions 16.0mm × 12.2mm × 2.4mm (±0.5mm)
Operating Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
Power Specifications
  • Operating Voltage: 1.65V-3.6V
  • Power Consumption: 21mA @3.0V (operation mode)
  • Power Saving Mode: 5.3mA @3.0V (PSM, 1Hz)
WT-62-UNL Micro GPS Tracker Module with UART+TTL Output for Vehicle Tracking 3 WT-62-UNL Micro GPS Tracker Module with UART+TTL Output for Vehicle Tracking 4 WT-62-UNL Micro GPS Tracker Module with UART+TTL Output for Vehicle Tracking 5
Applications

Ideal for vehicle tracking systems, surveying equipment, precision agriculture, fleet management, and other positioning applications requiring multi-constellation GNSS support.
