WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output

WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output
WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output

Large Image :  WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output

Product Details:
Place of Origin: China
Model Number: WT-62-UN
Payment & Shipping Terms:
Price: CN¥36.38/pieces 1-499 pieces
Contact Now

WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output

Description
Type: GNSS Module Country Of Origin: Shenzhen Guangdong, China
Brand: OTW Chipset: XX
Application: Positioning, Surveying And Mapping, Etc Operating Mode: GPS+GLONASS+GALILEO+ BDS
Output Mode: UART+TTL Baud Rate: 4800bps-921600bps,Default9600bps
NMEA Sentences: RMC,VTG,GGA,GSA,GSV,GLL Update Frequency: 1Hz-18Hz(default 1Hz)
Voltage: 1.65V To 3.6V Power Consumption: 21 MA , @3.0V
Size: 12.2mm*16mm*2.4mm
Highlight:

Anti-Theft GPS Module

,

UART TTL output GPS Module

,

vehicle tracking GPS Module

WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output
Product Attributes
Attribute Value
Type GNSS Module
Country of Origin Shenzhen Guangdong, China
Brand OTW
Chipset XX
Application Positioning, surveying and mapping, etc
Operating mode GPS+GLONASS+GALILEO+BDS
Output Mode UART+TTL
Baud rate 4800bps-921600bps, Default 9600bps
NMEA sentences RMC, VTG, GGA, GSA, GSV, GLL
Update frequency 1Hz-18Hz (default 1Hz)
Voltage 1.65V to 3.6V
Power consumption 21 mA @3.0V
Size 12.2mm × 16mm × 2.4mm
Product Description
WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output 0 WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output 1 WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output 2
Module Performance
Model WT-62-UN
Receiver type GPS/QZSS: L1C/A
Galileo: E1-B/C
GLONASS: L1OF
BeiDou: B1
Agreement NMEA-0183 compliant protocol or custom protocol
Available baud rate 4800bps~921600bps (default 9600bps)
Channel 72
Sensitivity Tracking: -167dbm
Capture: -158dbm
Cold start: -148dbm
Cold start Average 26 seconds
Hot start Average 1 second
Accuracy Horizontal Position: average, SBAS < 2.0m
Max Height 18000 m
Max Speed 515 m/s
Max Acceleration ≤ 4G
Regeneration frequency 1Hz -18 Hz
Port
Port UART
I²C
SPI
Physical Properties
Type 24 pin stamp holes

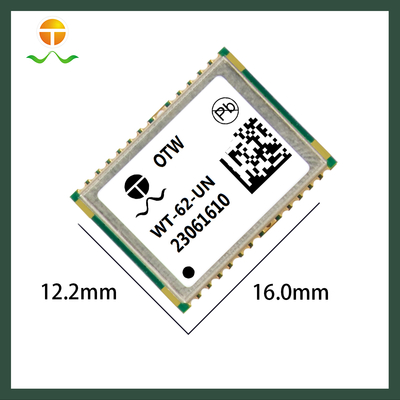

Size 16.0mm × 12.2mm × 2.4mm (+/- 0.5mm)
Power Supply
Voltage 1.65V~3.6V
Power Consumption Operation mode: 21 mA@3.0V
Power saving mode: 5.3 mA@3.0V (PSM, 1hz)
Operating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output 3 WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output 4 WT-62-UN Anti-Theft GPS Module for Vehicles with UART TTL Output 5
