OTW GNSS Module for Cars & Trucks - GPS+GLONASS+GALILEO+BDS, 1.65V-3.6V

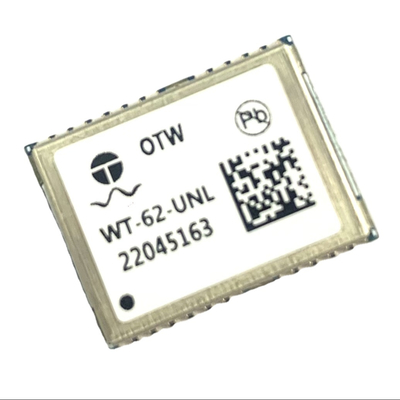

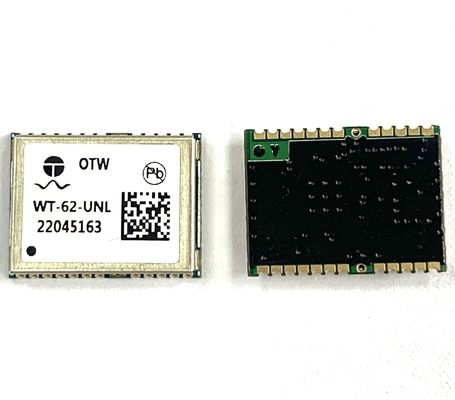

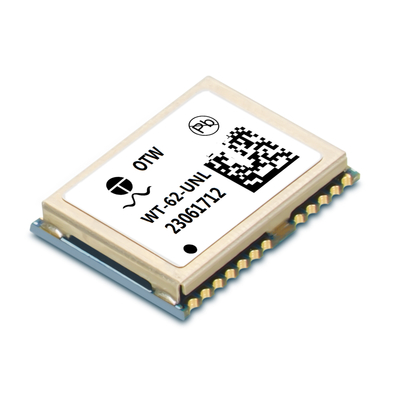

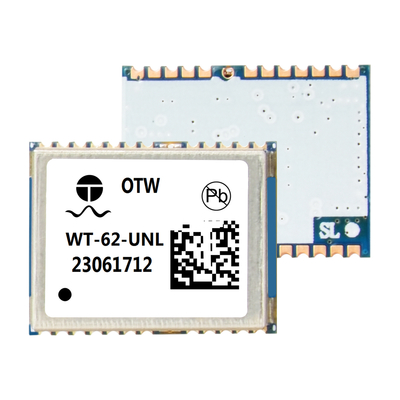

Large Image : OTW GNSS Module for Cars & Trucks - GPS+GLONASS+GALILEO+BDS, 1.65V-3.6V

Product Details:

Place of Origin:	China
Model Number:	WT-62-UNL

Payment & Shipping Terms:

Price:	CN¥37.81/pieces 1-499 pieces

Contact Now

OTW GNSS Module for Cars & Trucks - GPS+GLONASS+GALILEO+BDS, 1.65V-3.6V

Description

Type:	GNSS Module	Country Of Origin:	Shenzhen Guangdong, China
Brand:	OTW	Chipset:	XX
Application:	Positioning, Surveying And Mapping, Etc	Operating Mode:	GPS+GLONASS+GALILEO+ BDS
Output Mode:	UART+TTL	Baud Rate:	4800bps-921600bps,Default9600bps
NMEA Sentences:	RMC,VTG,GGA,GSA,GSV,GLL	Update Frequency:	1Hz-18Hz(default 1Hz)
Voltage:	1.65V To 3.6V	Power Consumption:	21 MA , @3.0V
Size:	12.2mm16mm2.4mm
Highlight:	GNSS module for vehicles , multi-system GPS receiver , low voltage GNSS module

Small GNSS Modules - The Essential Component for Cars, Trucks, Buses and More (1.65V to 3.6V)

Product Overview

Attribute	Value
Type	GNSS Module
Country of Origin	Shenzhen Guangdong, China
Brand	OTW
Chipset	XX
Application	Positioning, surveying and mapping, etc
Operating mode	GPS+GLONASS+GALILEO+BDS
Output Mode	UART+TTL
Baud rate	4800bps-921600bps (Default 9600bps)
NMEA sentences	RMC, VTG, GGA, GSA, GSV, GLL
Update frequency	1Hz-18Hz (default 1Hz)
Voltage	1.65V to 3.6V
Power consumption	21 mA @3.0V
Size	12.2mm × 16mm × 2.4mm

Technical Specifications

Model	WT-62-UNL
Receiver type	GPS/QZSS: L1C/A Galileo: E1-B/C GLONASS: L1OF BeiDou: B1
Agreement	NMEA-0183 compliant protocol or custom protocol
Channel	72
Available baud rate	4800bps~921600bps (default 9600bps)
Sensitivity	Tracking: -167dBm Capture: -158dBm Cold start: -148dBm
Cold start	Average 26 seconds
Hot start	Average 1 second
Accuracy	Horizontal Position: average, SBAS < 2.0m
Max Height	18000 m
Max Speed	515 m/s
Max Acceleration	≤ 4G
Regeneration frequency	1Hz -18 Hz

Port Configuration

2 UART ports
1 I2C port
2 SPI ports

Physical Properties

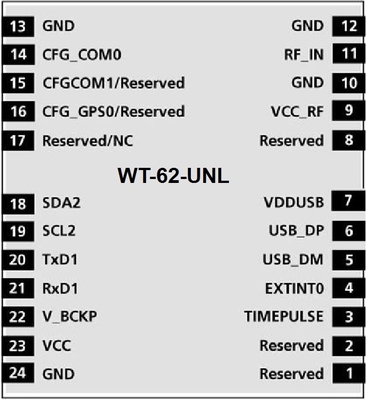

Type: 24 pin stamp holes

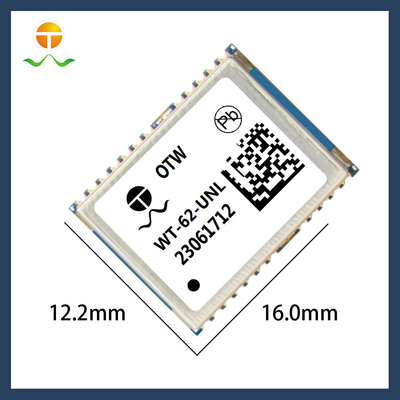

Size: 16.0mm × 12.2mm × 2.4mm (±0.5mm)

Power Supply

Voltage: 1.65V~3.6V
Power Consumption:
- Operation mode: 21 mA @3.0V
- Power saving mode: 5.3 mA @3.0V (PSM, 1Hz)

Operating Environment

Humidity range: 5% to 95% non-condensing
Working Temperature: -40℃ to 85℃
Storage Temperature: -40℃ to 85℃
