WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning

WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning
WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning

Large Image :  WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning

Product Details:
Place of Origin: China
Model Number: WT-11-UN
Payment & Shipping Terms:
Price: CN¥35.67/pieces 1-499 pieces
Contact Now

WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning

Description
Type: GNSS Module Country Of Origin: Shenzhen Guangdong, China
Brand: OTW Chipset: XX
Application: Positioning, Surveying And Mapping, Etc Operating Mode: GPS+GLONASS+ BDS
Baud Rate: 4800bps-921600bps,Default9600bps NMEA Messages: RMC,VTG,GGA,GSA,GSV,GLL
Update Frequency: 1Hz-18Hz(default 1Hz) Voltage: 1.65V To 3.6V
Power Consumption: 21mA @3.0V Size: 9.7mm*10.1mm*2.4mm
Output Mode: UART+TTL
Highlight:

GPS module with Multi-GNSS

,

9600bps default GPS Module

,

Positioning High Accuracy GPS Module

WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning
Product Attributes
Attribute Value
Type GNSS Module
Country of Origin Shenzhen Guangdong, China
Brand OTW
Chipset XX
Application Positioning, surveying and mapping, etc
Operating mode GPS+GLONASS+BDS
Baud rate 4800bps-921600bps, Default 9600bps
NMEA messages RMC, VTG, GGA, GSA, GSV, GLL
Update frequency 1Hz-18Hz (default 1Hz)
Voltage 1.65V to 3.6V
Power consumption 21mA @3.0V
Size 9.7mm*10.1mm*2.4mm
Output Mode UART+TTL
Product Images

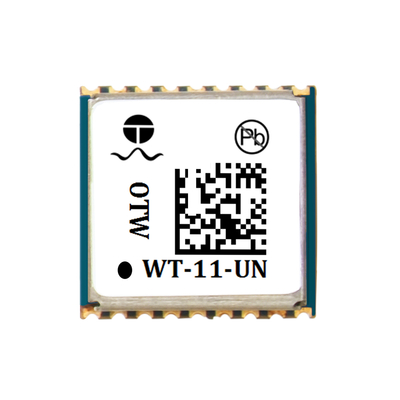

WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning 0

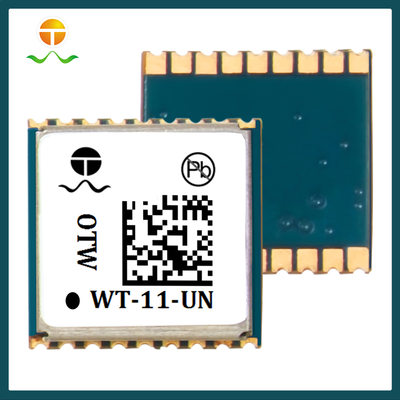

WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning 1

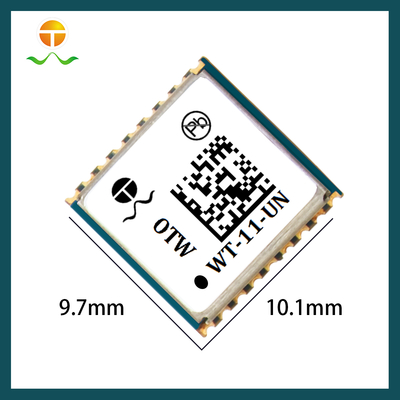

WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning 2
Technical Specifications
Model WT-11-UN
Receiver type GPS/QZSS: L1C/A
Galileo: E1-B/C
GLONASS: L1OF
BeiDou: B1
Agreement NMEA-0183 compliant protocol or custom protocol
Available baud rate 4800bps~921600bps (default 9600bps)
Channel 72
Sensitivity Tracking: -167dbm
Capture: -158dbm
Cold start: -148dbm
Cold start Average 26 seconds
Hot start Average 1 second
Accuracy Horizontal Position: average, SBAS < 2.0m
Max Height 18000 m
Max Speed 515 m/s
Max Acceleration ≦ 4G
Regeneration frequency 1Hz -18 Hz
Positioning mode A-GNSS
PORT I²C UART SPI
Physical Properties
Type 18PIN LCC package
Size 9.7mm * 10.1mm * 2.4mm (+/- 0.5mm)
Power Supply
Voltage 1.65V~3.6V
Power Consume Operation mode: 21 mA@3.0V
Power saving mode: 5.3 mA@3.0V (PSM, 1hz)
Operating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 125℃

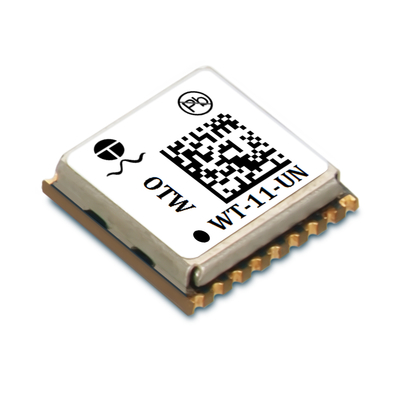

WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning 3

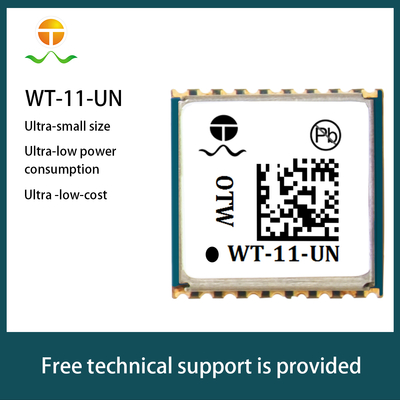

WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning 4

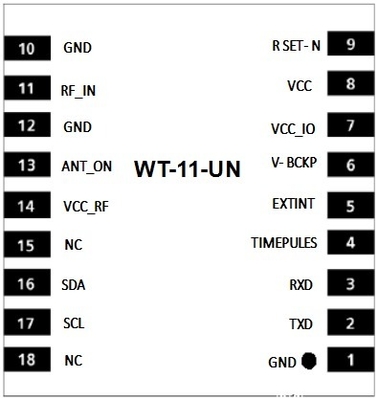

WT-11-UN High Accuracy GPS Module 9600bps Default Multi-GNSS (GPS/GLONASS/BDS) For Positioning 5
