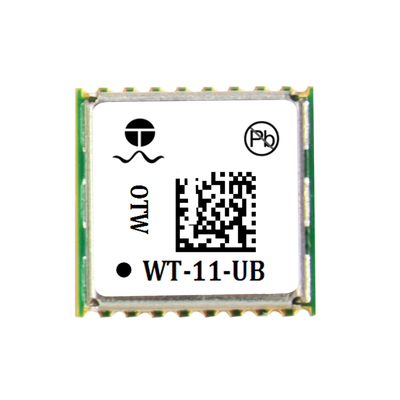

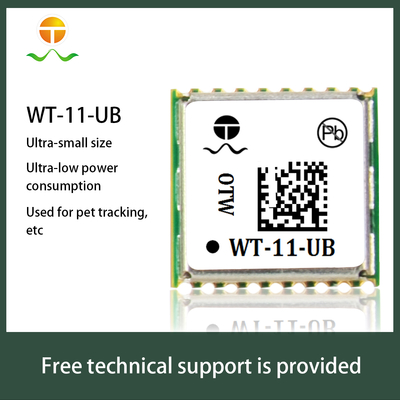

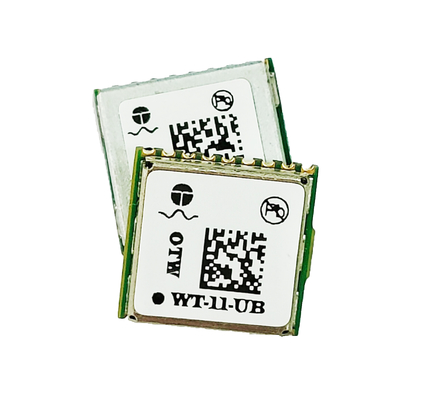

WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output

WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output
WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output

Large Image :  WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output

Product Details:
Place of Origin: China
Model Number: WT-11-UB
Payment & Shipping Terms:
Price: CN¥27.11/pieces 1-499 pieces
Contact Now

WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output

Description
Type: GNSS Module Country Of Origin: Shenzhen Guangdong, China
Brand: OTW Chipset: XX
Application: Positioning, Surveying And Mapping, Etc Operating Mode: GPS+GLONASS+ BDS
Baud Rate: 4800bps-921600bps,Default9600bps NMEA Messages: RMC,VTG,GGA,GSA,GSV,GLL
Update Frequency: 0.25Hz-10Hz(default 1Hz) Voltage: 1.65V To 3.6V
Power Consumption: Running Mode 16.5mA @3.0V Size: 9.7mm*10.1mm*2.4mm
Output Mode: UART+TTL
Highlight:

Ultra Consumption GNSS Receiver Module

,

UART TTL interface GNSS Receiver Module

,

NMEA GLL output GNSS Receiver Module

WT-11-UB Ultra Consumption GNSS Receiver Module

High-performance GNSS module with UART TTL and NMEA GLL output, designed for precision positioning and surveying applications.

Key Features
  • Multi-system support: GPS, GLONASS, and BDS
  • Low power consumption: 16.5mA @3.0V in operation mode
  • Compact size: 9.7mm × 10.1mm × 2.4mm
  • Wide voltage range: 1.65V to 3.6V
  • Configurable baud rate from 4800bps to 921600bps
  • Multiple NMEA message outputs including RMC, VTG, GGA, GSA, GSV, GLL
Product Specifications
Attribute Value
Type GNSS Module
Brand OTW
Chipset XX
Operating Mode GPS+GLONASS+BDS
Output Mode UART+TTL
Country of Origin Shenzhen Guangdong, China
WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output 0 WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output 1 WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output 2
Technical Specifications
Receiver Type: GPS/QZSS L1 C/A, GLONASS L1
Protocol: NMEA-0183 compliant or custom protocol
Channels: 56
Sensitivity: Tracking: -161dBm, Hot start: -148dBm, Cold start: -148dBm
Start Time: Cold start: 29s (avg), Hot start: 1s (avg)
Accuracy: Horizontal position: average, SBAS < 2.5m
Max Height: 18,000m
Max Speed: 515m/s
Max Acceleration: ≤4G
Positioning Mode: A-GNSS
Physical Properties

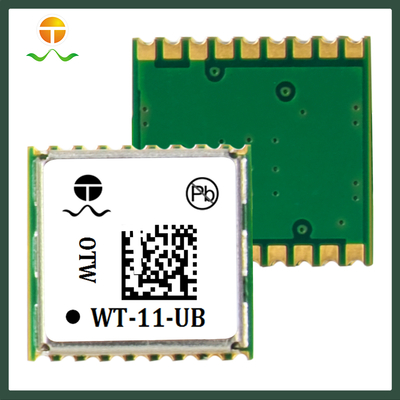

Package Type: 18PIN LCC

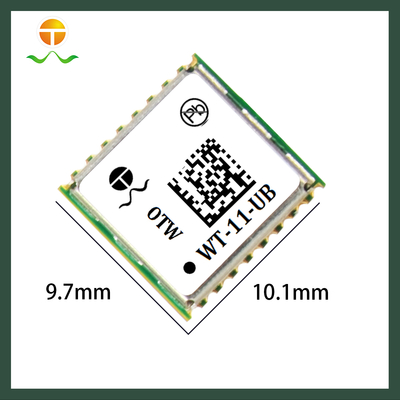

Dimensions: 9.7mm × 10.1mm × 2.4mm (±0.5mm)
Power Requirements
Voltage Range: 1.65V to 3.6V
Power Consumption: Operation: 16.5mA@3V, Power saving: 4.5mA@3V
Operating Environment
Temperature Range: -40℃ to 85℃
Humidity Range: 5% to 95% non-condensing
WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output 3 WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output 4 WT-11-UB Ultra Consumption GNSS Receiver Module With UART TTL And NMEA GLL Output 5
