WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output

WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output
WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output

Large Image :  WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output

Product Details:
Place of Origin: China
Model Number: WT-11-AKL
Payment & Shipping Terms:
Price: CN¥20.69/pieces 1-499 pieces
Contact Now

WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output

Description
Type: GNSS Module Country Of Origin: Shenzhen Guangdong, China
Brand: OTW Chipset: XX
Application: Positioning, Surveying And Mapping, Etc Operating Mode: GPS+GLONASS+ BDS
Baud Rate: 4800bps-921600bps,Default9600bps NMEA Messages: RMC,VTG,GGA,GSA,GSV,GLL
Update Frequency: 1Hz-10Hz(default 1Hz) Voltage: 3.6V To 5.5V
Power Consumption: 25 MA @3.3V Size: 9.7mm*10.1mm*2.4mm
Output Mode: UART+TTL
Highlight:

4G GPS module

,

Fleet management tracking GPS Module

,

NMEA GGA output GPS Module

WT-11-AKL 4G Mini GPS Module for Fleet Management
Product Overview

Compact GNSS module with NMEA GGA output, designed for precise positioning in fleet management, surveying, and mapping applications. Features multi-system support including GPS, GLONASS, and BDS.

WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output 0 WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output 1 WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output 2
Key Specifications
Model WT-11-AKL
Receiver Type BDS: B1I+B1C
GPS/QZSS: L1C/A
GLONASS: L1
Protocol NMEA-0183 compliant or custom protocol
Baud Rate 4800bps~921600bps (default 9600bps)
Channels 32
Sensitivity Tracking: -162dBm
Capture: -160dBm
Cold start: -148dBm
Start Time Cold start: 29s average
Hot start: 1s average
Accuracy Horizontal position: <2.5m with SBAS
Max Height 18000m
Max Speed 515m/s
Max Acceleration ≤4G
Update Rate 1Hz-10Hz
Physical Characteristics
Package Type 18PIN LCC

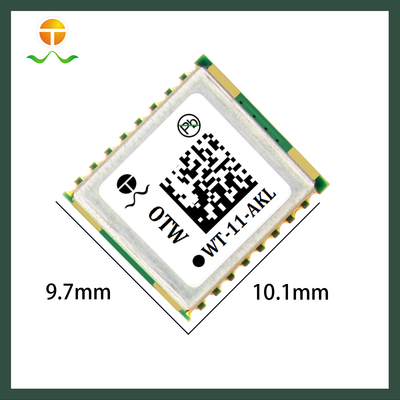

Dimensions 9.7mm × 10.1mm × 2.4mm (±0.5mm)
Weight Lightweight design
Power Requirements
Voltage Range 3.6V~5.5V
Power Consumption 25mA @3.3V (running mode)
8mA @3.3V (standby mode)
Environmental Specifications
Operating Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
Humidity Range 5% to 95% non-condensing
Additional Technical Details
Output Mode UART+TTL
NMEA Messages RMC, VTG, GGA, GSA, GSV, GLL
Positioning Mode A-GNSS
WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output 3 WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output 4 WT-11-AKL 4G Mini GPS Module for Fleet Management with NMEA GGA Output 5
Key Features
  • Multi-constellation support (GPS+GLONASS+BDS)
  • Compact 18PIN LCC package design
  • Low power consumption for extended operation
  • High sensitivity receiver for challenging environments
  • Wide operating voltage range (3.6V-5.5V)
  • Robust performance across extreme temperatures
  • Configurable update rate from 1Hz to 10Hz
Note: All specifications are typical values measured at 25°C unless otherwise noted.
