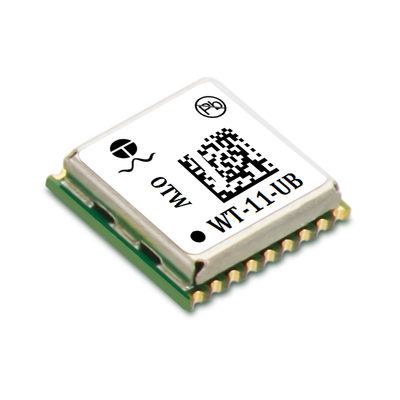

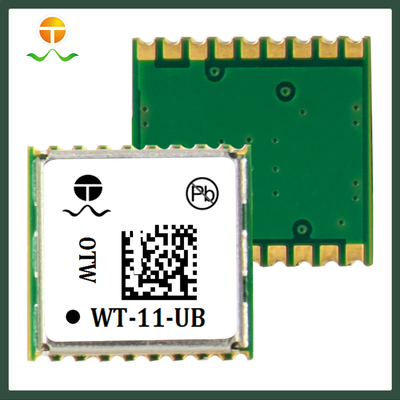

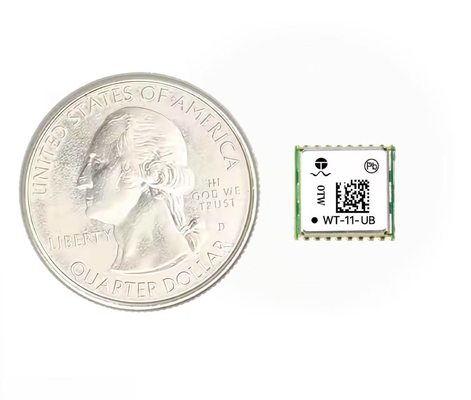

1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support

1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support
1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support 1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support 1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support 1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support 1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support 1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support

Large Image :  1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support

Product Details:
Place of Origin: China
Model Number: WT-11-UB
Payment & Shipping Terms:
Price: CN¥27.11/pieces 1-499 pieces
Contact Now

1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support

Description
Type: GNSS Module Country Of Origin: Shenzhen Guangdong, China
Brand: OTW Chipset: XX
Application: Positioning, Surveying And Mapping, Etc Operating Mode: GPS+GLONASS+ BDS
Baud Rate: 4800bps-921600bps,Default9600bps NMEA Messages: RMC,VTG,GGA,GSA,GSV,GLL
Update Frequency: 0.25Hz-10Hz(default 1Hz) Voltage: 1.65V To 3.6V
Power Consumption: Running Mode 16.5mA @3.0V Size: 9.7mm*10.1mm*2.4mm
Output Mode: UART+TTL
Highlight:

Ultra-low power GNSS module

,

GPS GLONASS BDS GNSS Module

,

1.65V-3.6V GNSS Module

1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support
Product Overview

High-performance GNSS module featuring ultra-low power consumption and multi-system support (GPS, GLONASS, and BDS) for precise positioning applications in surveying, mapping, and navigation systems.

Key Specifications
Attribute Value
Type GNSS Module
Brand OTW
Chipset XX
Operating Mode GPS+GLONASS+BDS
Voltage Range 1.65V to 3.6V
Power Consumption 16.5mA @3.0V (Running Mode)

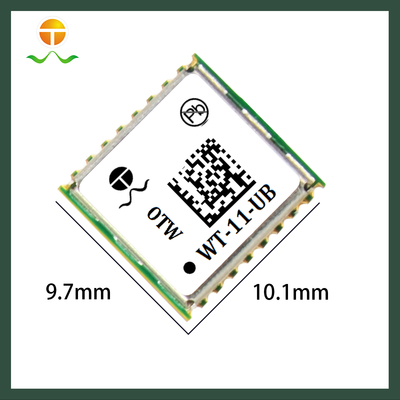

Dimensions 9.7mm × 10.1mm × 2.4mm
1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support 0 1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support 1 1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support 2 1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support 3
Exclusive Agent Benefits

Agents enjoy special discounted pricing. Contact us immediately to claim your exclusive offer.

Technical Specifications
Model WT-11-UB
Receiver Type GPS/QZSS L1 C/A, GLONASS L1
Protocol NMEA-0183 compliant or custom protocol
Baud Rate 4800bps-921600bps (default 9600bps)
Channels 56
Sensitivity Tracking: -161dBm
Hot start: -148dBm
Cold start: -148dBm
Startup Time Cold start: 29s average
Hot start: 1s average
Accuracy Horizontal position: <2.5m with SBAS
Max Altitude 18,000m
Max Speed 515m/s
Positioning Mode A-GNSS
Interface Ports I²C, UART, SPI
Physical Properties
Package Type 18PIN LCC
Dimensions 9.7mm × 10.1mm × 2.4mm (±0.5mm)
Power Specifications
Voltage Range 1.65V-3.6V
Power Consumption Operation mode: 16.5mA@3V
Power saving mode: 4.5mA@3V
Environmental Specifications
Operating Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
Humidity Range 5% to 95% (non-condensing)
1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support 4 1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support 5 1.65V-3.6V Ultra-low Power GNSS Module with GPS+GLONASS+BDS Support 6
Contact us immediately to claim your exclusive agent discount!
