WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking

WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking
WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking

Large Image :  WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking

Product Details:
Place of Origin: China
Model Number: WT-11-AK
Payment & Shipping Terms:
Price: CN¥19.98/pieces 1-499 pieces
Contact Now

WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking

Description
Type: GNSS Module Country Of Origin: Shenzhen Guangdong, China
Brand: OTW Chipset: XX
Application: Positioning, Surveying And Mapping, Etc Operating Mode: GPS+GLONASS+ BDS
Baud Rate: 4800bps-921600bps,Default9600bps NMEA Messages: RMC,VTG,GGA,GSA,GSV,GLL
Update Frequency: 1Hz-10Hz(default 1Hz) Voltage: 3.6V To 5.5V
Power Consumption: 25 MA @3.3V Size: 9.7mm*10.1mm*2.4mm
Output Mode: UART+TTL
Highlight:

Drones Mini GPS module

,

Small Cars GPS Module

,

GNSS Tracking GPS Module

WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking
Product Attributes
Attribute Value
Type GNSS Module
Country of Origin Shenzhen Guangdong, China
Brand OTW
Chipset XX
Application Positioning, surveying and mapping, etc
Operating mode GPS+GLONASS+ BDS
Baud rate 4800bps-921600bps, Default 9600bps
NMEA messages RMC, VTG, GGA, GSA, GSV, GLL
Update frequency 1Hz-10Hz (default 1Hz)
Voltage 3.6V to 5.5V
Power consumption 25 mA @3.3V
Size 9.7mm*10.1mm*2.4mm
Output Mode UART+TTL
Product Images

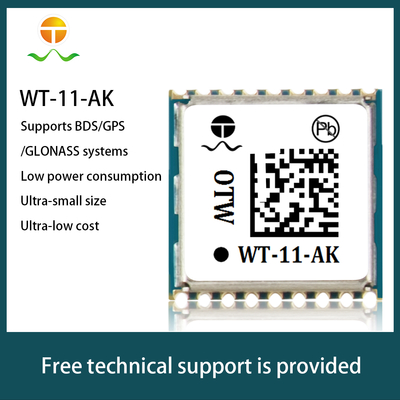

WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking 0

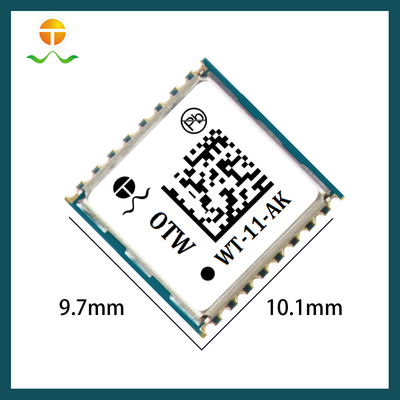

WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking 1

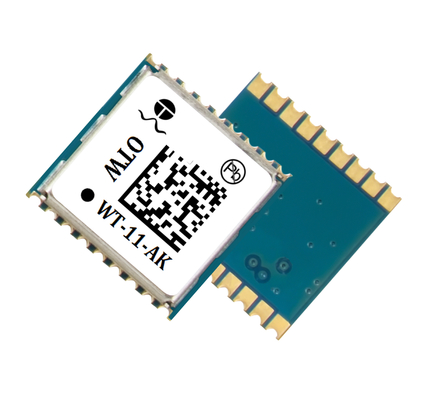

WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking 2
Module Performance
Model WT-11-AK
Receiver type BDS:B1I+B1C
GPS/QZSS:L1C/A
GLONASS:L1
Agreement NMEA-0183 compliant protocol or custom protocol
Available baud rate 4800bps~921600bps (default 9600bps)
Channel 32
Sensitivity Tracking: -162dbm
Capture: -160dbm
Cold start -148dbm
Cold start Average 29 seconds
Hot start Average 2-3 seconds
Accuracy Horizontal Position: average, SBAS < 2.5m(CEP50)
Max Height 18000 m
Max Speed 515 m/s
Max Acceleration ≦ 4G
Regeneration frequency 1Hz -10 Hz
Positioning method A-GNSS
Physical Properties

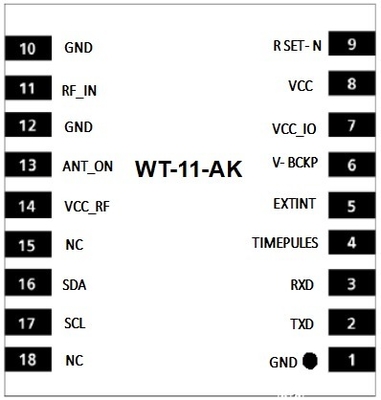

Type 18 pin stamp holes
Size 10.1mm*9.7mm*2.5mm(+/- 0.5mm)
Power Supply
Voltage 3.6V~5.5V
Power Consumption Operation mode: 25 mA@3.3V
Power saving mode: 8 mA@3.3V (PSM, 1hz)
Operating Environment
Humidity range 5% to 90% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
Additional Images
WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking 3

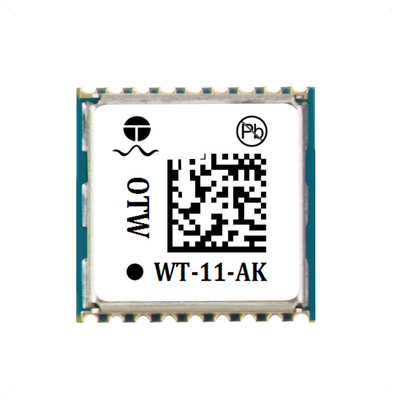

WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking 4

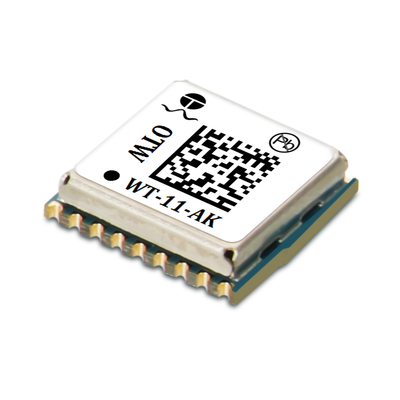

WT-11-AK Mini GPS Module for Small Cars and Drones with GNSS Tracking 5
