Dual-Frequency GPS Module with Inertial Navigation - 128 Channel GNSS

Large Image : Dual-Frequency GPS Module with Inertial Navigation - 128 Channel GNSS

Product Details:

Place of Origin:	China
Model Number:	WT-62-DD

Payment & Shipping Terms:

Price:	CN¥49.93/pieces 1-499 pieces

Contact Now

Dual-Frequency GPS Module with Inertial Navigation - 128 Channel GNSS

Description

Type:	GNSS Module	Country Of Origin:	Shenzhen Guangdong, China
Brand:	OTW	Chipset:	XX
Application:	Positioning, Surveying And Mapping, Etc	Operating Mode:	GPS+GLONASS+GALILEO+ BDS
Output Mode:	UART+TTL	Baud Rate:	4800bps-921600bps,Default115200bps
NMEA Messages:	RMC,VTG,GGA,GSA,GSV,GLL	Update Frequency:	0.25Hz-10Hz(default 1Hz)
Voltage:	1.8V To 3.3V	Power Consumption:	108mW @1.8V
Size:	12.2mm16mm2.4mm
Highlight:	Dual Frequency GPS Module , Inertial Navigation GPS Module , 128 Channel GNSS Module

Dual-Frequency GPS Module with Inertial Navigation - 128 Channel GNSS

Key Attributes

Attribute	Value
Type	GNSS Module
Country of Origin	Shenzhen Guangdong, China
Brand	OTW
Chipset	XX
Application	Positioning, surveying and mapping, etc
Operating mode	GPS+GLONASS+GALILEO+BDS
Output Mode	UART+TTL
Baud rate	4800bps-921600bps, Default 115200bps
NMEA messages	RMC, VTG, GGA, GSA, GSV, GLL
Update frequency	0.25Hz-10Hz (default 1Hz)
Voltage	1.8V to 3.3V
Power consumption	108mW @1.8V
Size	12.2mm × 16mm × 2.4mm

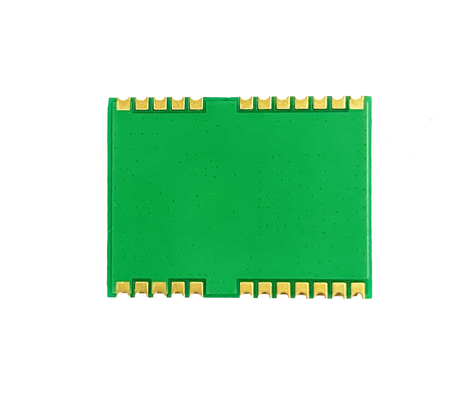

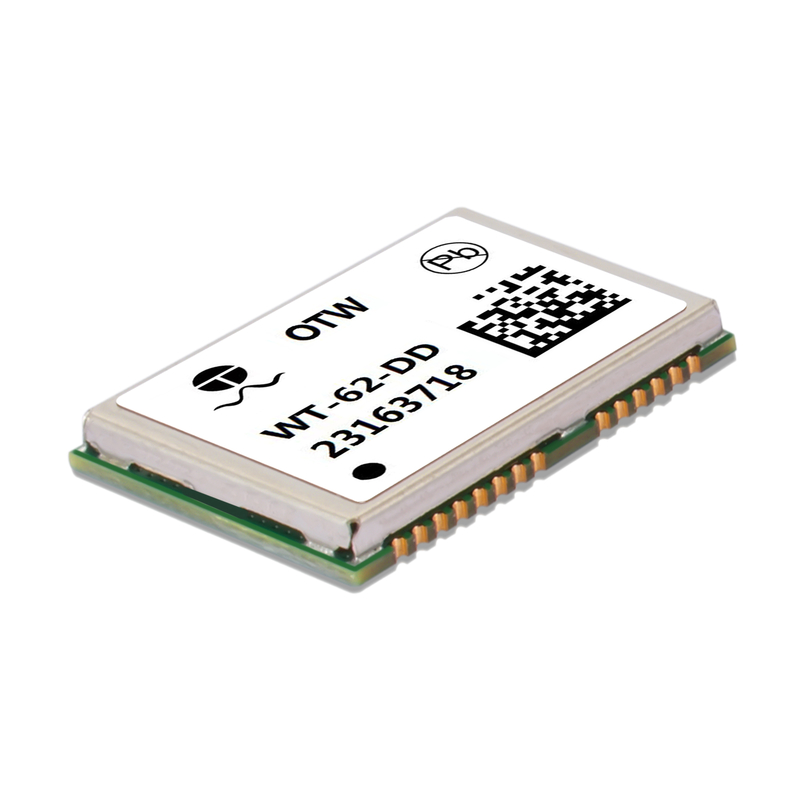

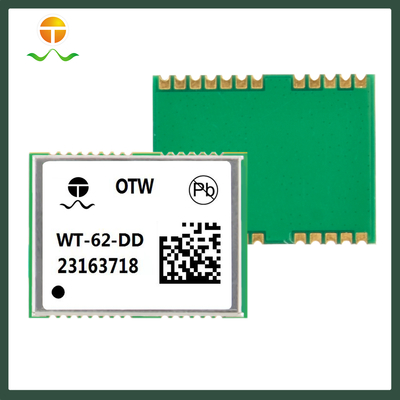

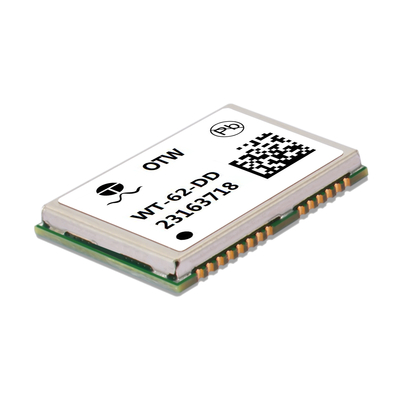

Product Images

Technical Specifications

Module Performance

Model: WT-62-DD

Receiver type: GPS/QZSS L1C/A & L5, BDS B1I/B1C & B2a, GAL E1 & E5a, GLONASS L1

Arithmetic: Integrated dual frequency+DR Fusion positioning algorithm

Agreement: NMEA-0183 compliant protocol or custom protocol

Available baud rate: 4800bps~921600bps (default 115200bps)

Channel: 128

Sensitivity: Tracking: -167dbm, Capture: -160dbm, Cold start -148dbm

Cold start: Average 28 seconds

Hot start: Average 1 second

Accuracy: <Level 2m+1ppm CEP50

Max Height: 18000 m

Max Speed: 515 m/s

Max Acceleration: ≦ 4G

Regeneration frequency: 0.25 Hz -10 Hz

Positioning mode: A-GNSS, Double frequency

Port

Port: UART/TTL

Physical Property

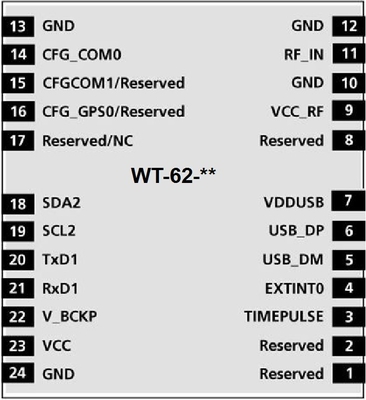

Type: 24PIN LCC package

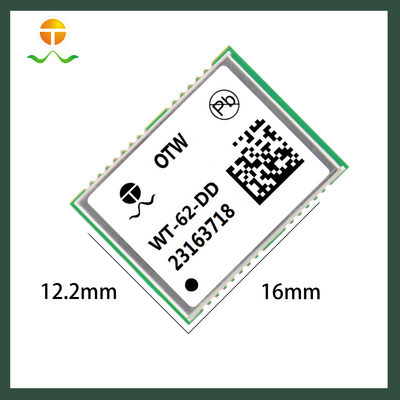

Size: 12.2mm × 16mm × 2.4mm (+/- 0.5mm)

Power Supply

Voltage: 1.8V~3.3V

Power Consume: Running mode: 108mW@1.8V, Standby mode: < 20μW

Operating Environment

Humidity range: 5% to 95% non-condensing

Working Temperature: -40℃ to 85℃

Storage Temperature: -40℃ to 85℃

Additional Diagrams
