RTK module integrated spiral antenna device, with built-in compass 5883

RTK module integrated spiral antenna device, with built-in compass 5883
RTK module integrated spiral antenna device, with built-in compass 5883 RTK module integrated spiral antenna device, with built-in compass 5883 RTK module integrated spiral antenna device, with built-in compass 5883

Large Image :  RTK module integrated spiral antenna device, with built-in compass 5883

Product Details:
Place of Origin: Guangdong, China
Brand Name: OTW
Model Number: WT-4545-RK
Contact Now

RTK module integrated spiral antenna device, with built-in compass 5883

Description
Type: GNSS Module Country Of Origin: Shenzhen Guangdong, China
Brand: OTW Chipset: XX

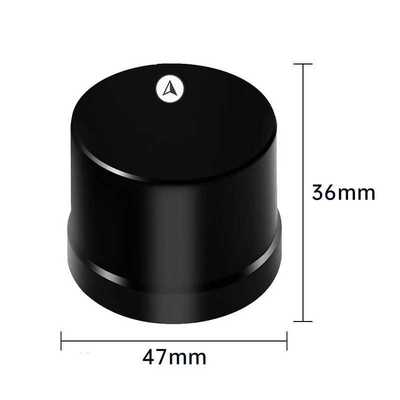

Application: UAV,Drone Dimensions: 47mm*36mm
Positioning Accuracy: 1-2cm Communication Interface: TTL
Operating Mode: GPS+GLONASS+GALILEO+ BDS Output Mode: UART+TTL
Baud Rate: 4800bps-921600bps,Default115200bps NMEA Messages: RMC,VTG,GGA,GSA,GSV,GLL
Update Frequency: 1Hz-20Hz(default 10Hz) Voltage: 3.3V To 5V
Power Consumption: 80mA/5.0V

OTW GPS Receiver with Integrated RTK Module and Spiral Antenna
RTK module integrated spiral antenna device, with built-in compass 5883 0 RTK module integrated spiral antenna device, with built-in compass 5883 1
Industrial Applications
  • Base station location, power and communications infrastructure
  • Surveying and mapping: area measurement and distance measurement
  • Vehicle positioning and personnel tracking systems
  • Agricultural equipment: lawn mowers, farming machines, drones
  • High-precision positioning in complex environments and high-speed motion scenarios
  • Intelligent IoT systems and autonomous driving applications
RTK module integrated spiral antenna device, with built-in compass 5883 2 RTK module integrated spiral antenna device, with built-in compass 5883 3
Key Features
  • Multi-system compatibility: synchronously receives GPS/BDS/GLONASS/GALILEO four-system dual frequency
  • Advanced RTK algorithm for precision positioning
  • Ultra-high precision: achieves centimeter-level positioning accuracy
  • Cost-effective solution with low power consumption
  • Rapid positioning capability
Technical Specifications
Module Performance
Model WT-4545-RK
Receiver Type BDS:B1I/B1C & B2a
GPS/QZSS:L1C/A & L5
GLONASS:L1
Galileo:E1,E5a
Arithmetic Integration RTK
Agreement NMEA/UBX
Available Baud Rate 4800bps~921600bps(default 115200bps)
Channel 128
Sensitivity Tracking: -167dbm
Capture: -160dbm
Cold start -148dbm
Cold Start Average 28 seconds
Hot Start Average 1 second
Accuracy Level 1cm+1ppm CEP50
Elevation 2cm+1ppm CEP50
Max Height 50000m
Max Speed 515 m/s
Max Acceleration ≤ 4G
Regeneration Frequency 0.25 Hz -10 Hz
Positioning Mode A-GNSS, RTK
Port
Port UART/TTL
Interface

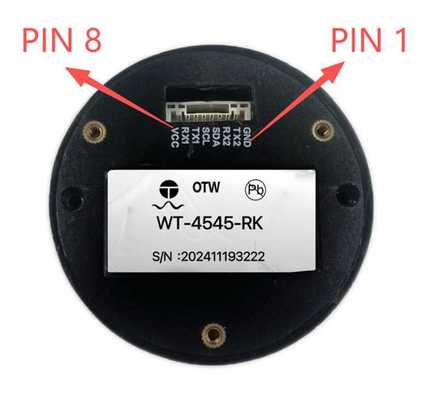

Interface GH 1.25 (spacing 1.25mm, 8-pin) with locking base
Power Supply
Voltage 3.6V~6V
Power Consumption Running mode: 103mW@1.8V
Standby mode: < 20μW
Operating Environment
Humidity Range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
RTK module integrated spiral antenna device, with built-in compass 5883 4 RTK module integrated spiral antenna device, with built-in compass 5883 5
Company Profile

Shenzhen Anzewei Technology Co., Ltd. is a scientific and technological company specializing in the R&D, production, sales and service of wireless positioning communication products. We maintain deep cooperation with international enterprises and have a team of experienced R&D professionals.

Our focus includes navigation, positioning, tracking, timing, and wireless communication solutions, with core products including centimeter-level positioning terminals, wearable smart devices, and tracking systems.

RTK module integrated spiral antenna device, with built-in compass 5883 6 RTK module integrated spiral antenna device, with built-in compass 5883 7 RTK module integrated spiral antenna device, with built-in compass 5883 8 RTK module integrated spiral antenna device, with built-in compass 5883 9
Frequently Asked Questions
Q1: Are you a manufacturer? Where is your factory?

A1: Yes, we are a manufacturer. Our factory is located in Shenzhen, China. Welcome to our factory.

Q2: If I place an order how long will it take to deliver?

A2: It usually takes about 7-10 days on receipt of payment, depending on the quantity ordered and stock status.

Q3: Are the prices on the list final?

A3: No, the price is negotiable. It depends on the quantity of your order.

Q4: When can I get the price?

A4: We typically quote within 24 hours of receiving an inquiry. For urgent requests, please call us.

Q5: Can I request a sample before placing an order?

A5: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q6: Can it be customized?

A6: Yes. We support custom requirements.

Q7: How can we build a long-term business relationship?

A7: We maintain quality and competitive pricing to ensure customer benefit, and we value every business relationship.

RTK module integrated spiral antenna device, with built-in compass 5883 10
