High Precision RTK GNSS Antenna with L1/L2/L5 Support, IP67 Waterproof, and 30±3.0dB LNA Gain for Reliable GPS Reception

High Precision RTK GNSS Antenna with L1/L2/L5 Support, IP67 Waterproof, and 30±3.0dB LNA Gain for Reliable GPS Reception
High Precision RTK GNSS Antenna with L1/L2/L5 Support, IP67 Waterproof, and 30±3.0dB LNA Gain for Reliable GPS Reception High Precision RTK GNSS Antenna with L1/L2/L5 Support, IP67 Waterproof, and 30±3.0dB LNA Gain for Reliable GPS Reception High Precision RTK GNSS Antenna with L1/L2/L5 Support, IP67 Waterproof, and 30±3.0dB LNA Gain for Reliable GPS Reception

Large Image :  High Precision RTK GNSS Antenna with L1/L2/L5 Support, IP67 Waterproof, and 30±3.0dB LNA Gain for Reliable GPS Reception

Product Details:
Place of Origin: CHINA
Brand Name: OTW
Certification: CE
Model Number: WT-508
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 59.9
Delivery Time: 5day
Contact Now

High Precision RTK GNSS Antenna with L1/L2/L5 Support, IP67 Waterproof, and 30±3.0dB LNA Gain for Reliable GPS Reception

Description
Highlight:

L1/L2/L5 RTK GNSS Antenna

,

IP67 Waterproof GPS Antenna

,

30±3.0dB LNA Gain GNSS Receiver Antenna

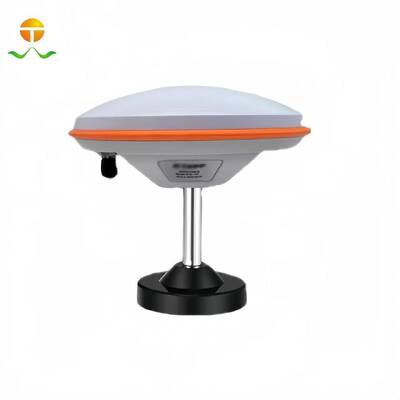

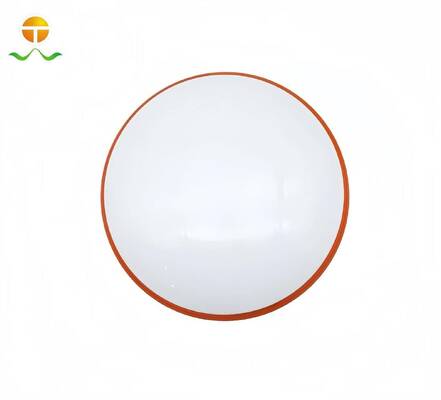

WT508 High Precision RTK GNSS Antenna
Full-band RTK GNSS antenna supporting L1/L2/L5 frequencies with powerful performance and competitive pricing. Ideal for precision agriculture applications requiring high-accuracy positioning.
Key Features
  • Multi-constellation support: Beidou, GPS, Galileo, GLONASS
  • L-band correction capability for enhanced accuracy
  • High gain performance with RHCP polarization
  • Compact, lightweight design for easy integration
  • IP67 waterproof rating for harsh environments
Antenna Characteristics
ModelWT508
Receiver TypeBeidou: B1/B2/B3, GPS: L1/L2/L5, Galileo: E1/E2/E5/E5a/E5b/E6, GLONASS: L1/L2/L3
Peak Gain≥5 dBi
PolarizationRHCP
Axial Ratio @ Zenith≤1.5dB
Azimuth Coverage360°
Impedance50 ohm
LNA Specifications
PortUART/TTL
Frequency Range1164MHz~1268MHz, 1525MHz~1615MHz
LNA Gain30±3.0dB (Typ. @25°C)
Noise Figure≤2 dB@25°C, Typ.
Output VSWR≤1.8:1 typ. 2.0:1 max
Operating Voltage3.0~5.0V DC
Operation Current≤45mA

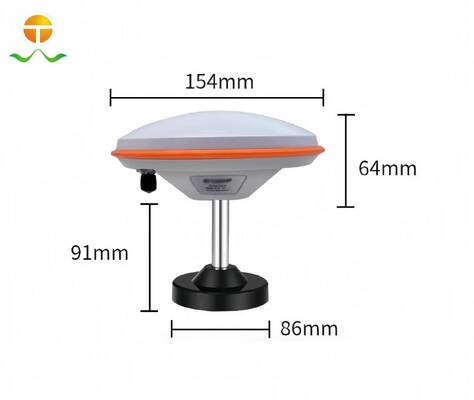

Mechanical & Environmental Specifications
ConnectorTNC
RadomeABS+PC
Weight≤16g
Attachment MethodThrough the connector
Operating Temperature-40℃ ~ +85℃
Storage Temperature-55℃ ~ +85℃
Humidity95% No-condensing
Waterproof RatingIP67
High Precision RTK GNSS Antenna with L1/L2/L5 Support, IP67 Waterproof, and 30±3.0dB LNA Gain for Reliable GPS Reception 0
