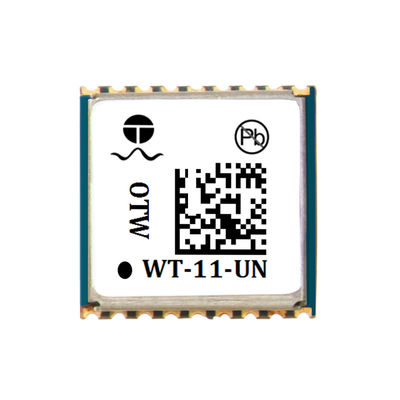

Product Details:
|
Model Number: | WT-11-UN | Type: | GNSS Module |
---|---|---|---|
Country Of Origin: | CHINA | Operating Mode: | GPS+GLONASS+ BDS |
Output Mode: | UART+TTL | Baud Rate: | 4800bps-921600bps,Default9600bps |
NMEA Messages: | RMC,VTG,GGA,GSA,GSV,GLL | Size: | 9.7mm*10.1mm*2.4mm |
Highlight: | Cats GPS Tracking Collar Gps Module,Dogs GPS Tracking Collar Gps Module,New GPS Tracking Collar Gps Module |
Attribute | Value |
---|---|
Model Number | WT-11-UN |
Type | GNSS Module |
Country of Origin | CHINA |
Operating Mode | GPS+GLONASS+BDS |
Output Mode | UART+TTL |
Baud Rate | 4800bps-921600bps (Default 9600bps) |
NMEA Messages | RMC, VTG, GGA, GSA, GSV, GLL |
Size | 9.7mm × 10.1mm × 2.4mm |
Model | WT-11-UN |
---|---|
Receiver Type | GPS/QZSS: L1C/A Galileo: E1-B/C GLONASS: L1OF BeiDou: B1 |
Agreement | NMEA-0183 compliant protocol or custom protocol |
Available Baud Rate | 4800bps~921600bps (default 9600bps) |
Channel | 72 |
Sensitivity | Tracking: -167dBm Capture: -158dBm Cold start: -148dBm |
Cold Start | Average 26 seconds |
Hot Start | Average 1 second |
Accuracy | Horizontal Position: average, SBAS < 2.0m |
Max Height | 18000 M |
Max Speed | 515 m/s |
Max Acceleration | ≤ 4G |
Regeneration Frequency | 1Hz - 18Hz |
Positioning Mode | A-GNSS |
Port | 2 UART 1 I2C 2 SPI |
Physical Property | 18 pin stamp holes Size: 10.1mm × 9.7mm × 2.4mm (±0.5mm) |
Power Supply | Voltage: 1.65V~3.6V Power Consumption: Operation mode: 21 mA@3.0V, Power saving mode: 5.3 mA@3.0V (PSM, 1Hz) |
Operating Environment | Humidity range: 5% to 95% non-condensing Working Temperature: -40℃ to 85℃ Storage Temperature: -40℃ to 125℃ |
