Product Details:
|
| Brand: | OTW | Center Frequency: | L1/L2/L5 |
|---|---|---|---|
| Atanding Wave Ratio: | <3.0 | Antenna Gain: | 28.0±3 DBi |
| Impedance: | 50Ω | Voltage: | 3.0V To 5.0V |
| Connector Type: | SMA-J Connection | Wire Length: | 3M(Customizable) |
| Highlight: | L5 gps antenna for car dvd player,L1 gps antenna for car dvd player,SMA-J Connector gps antenna |
||

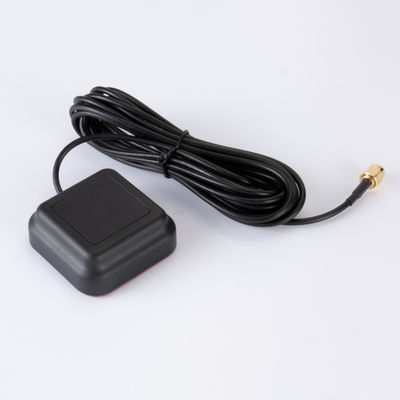

High-Performance Antenna for Vehicle Navigation and Information Services
Product descriptions from the supplier
● For consumer entertainment, surveying and mapping, timing
● Vehicle monitoring and management
● Vehicle navigation and information services.
● Provide high-precision location services for aviation, navigation, communication, personnel tracking, etc.
| Product performance | |
| Model | WT-A-DF-3M-SMA-J |
| Center Frequency(MHz) | L1/L2/L5 |
| Output VSWR |
＜3.0 |
| max(dBic)Gain at Zenith | 5 / 6.5 |
| Impedance | 50Ω |
| In-band flatness | ±2 dB |
| Polarization mode | RHCP |
| Axial Ratio | ≤3.0 |
| Horizontal coverage | 360° |
| Connection Type | SMA-J |
| Size | 76*76*26mm |
| Wire length | 3M(Customizable) |
| Weight | 87.5g |
| Low noise amplifier gain | 28.0±3 dBi |
| Noise Figure | ≤2.0 dBi |
| Voltage | 3.0-5V |
| Working current | ≤40 mA@3.3V |
| Working Temperature | -40℃ to 85℃ |
| Storage Temperature | -40℃ to 85℃ |
| waterproofing grade | IP66 |
