10mm*10mm smallest GPS tracking module, mini size

10mm*10mm smallest GPS tracking module, mini size
10mm*10mm smallest GPS tracking module, mini size
10mm*10mm smallest GPS tracking module, mini size 10mm*10mm smallest GPS tracking module, mini size

Large Image :  10mm*10mm smallest GPS tracking module, mini size

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-11-UB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $2.4 - 11.80/
Packaging Details: Carton box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal,Western Union
Supply Ability: 10000 pcs/day
Contact Now

10mm*10mm smallest GPS tracking module, mini size

Description
Agreement: NMEA-0183 Compliant Protocol Or Custom Protocol Available Baud Rate: 4800bps~921600bps(default 9600bps)
Start-up Time: Cold Start：Average 29seconds Hot Start：Average 1 Seconds Sensitivity: Tracking: -161dbm Hot Start: -148dbm Cold Start -148dBm
Dimensions: 10.1mm * 9.7mm * 2.4mm (+/- 0.5mm) Positioning Mode: A-GNSS
Update Rate: 0.25Hz-10 Hz Interface: URAT/TTL
Highlight:

smallest gps module 0.25Hz

,

0.25Hz smallest gps module

,

smallest gps modules 0.25Hz

10mm×10mm Smallest GPS Tracking Module
Miniature GPS module with ultra-compact dimensions of 10.1mm × 9.7mm × 2.4mm (±0.5mm), designed for integration into space-constrained applications.
Key Specifications
Attribute Value
Protocol NMEA-0183 Compliant or Custom Protocol
Baud Rate 4800bps~921600bps (default 9600bps)
Start-up Time Cold Start: 29s (avg), Hot Start: 1s (avg)
Sensitivity Tracking: -161dBm, Hot Start: -148dBm, Cold Start: -148dBm
Positioning Mode A-GNSS
Update Rate 0.25Hz-10Hz
Interface URAT/TTL
Product Overview

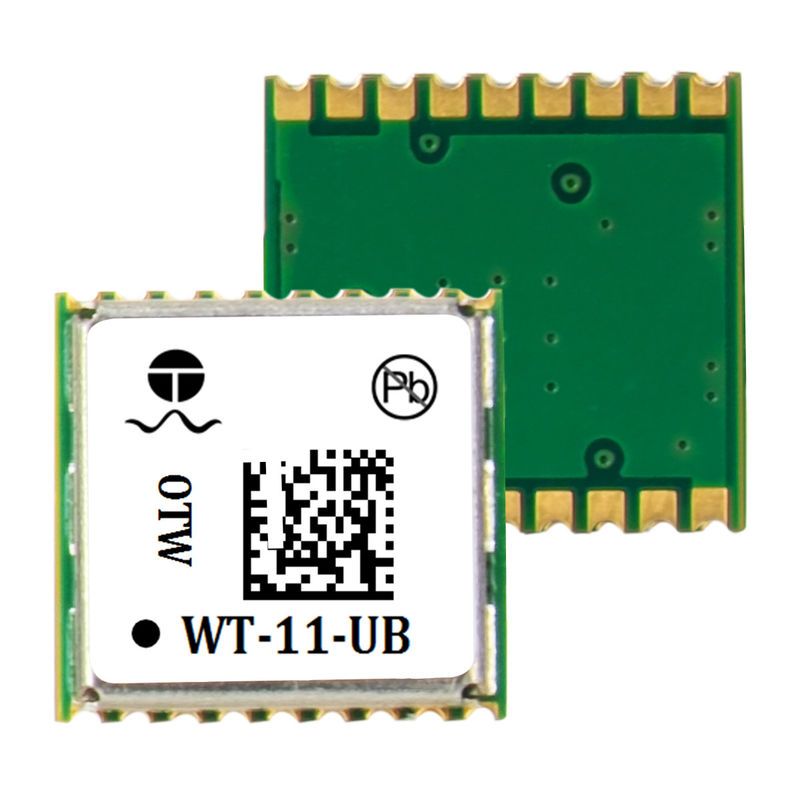

The WT-11-UB GPS Module is a compact location tracking solution offering high sensitivity (-161dBm tracking) and fast acquisition times. With dimensions of just 10.1mm × 9.7mm × 2.4mm, this module is ideal for integration into miniaturized devices requiring precise positioning.
Key Features
  • Model: WT-11-UB with 56 channels
  • Operating temperature range: -40°C to 85°C
  • Configurable baud rate from 4800bps to 921600bps
  • Compact dimensions: 10.1mm × 9.7mm × 2.4mm (±0.5mm)
  • Power supply: 1.4V~3.6V
  • Positioning accuracy: SBAS < 2.5m
Applications
  • Vehicle and marine navigation systems
  • Fleet management and asset tracking
  • Personal tracking devices
  • Smart city infrastructure
  • Outdoor equipment and wearables
  • IoT devices and mobile applications
Customization Options
Available with protocol customization, multiple interface options (2 URAT, 1 I2C, 2 SPI), and flexible baud rate configuration. Minimum order quantity: 1 piece.
Packaging & Shipping
Securely packaged in protective carton boxes with foam inserts. Shipped via reliable couriers with tracking. Delivery typically within 5-8 working days.
Frequently Asked Questions
Q: What is the brand and model of this product?
A: OTW brand, model WT-11-UB
Q: Where is this module manufactured?
A: Manufactured in China
Q: What is the pricing and minimum order quantity?
A: $3.80 per piece, MOQ 1 piece
Q: What payment methods are accepted?
A: T/T, AliPay, and PayPal
Q: What is the production capacity?
A: 10,000 pieces per day
