OTW WT-27-HP Development Board for High-speed Motion Scenarios and Drones Intelligent Driving with Multi-GNSS Raw Data Output

OTW WT-27-HP Development Board for High-speed Motion Scenarios and Drones Intelligent Driving with Multi-GNSS Raw Data Output
OTW WT-27-HP Development Board for High-speed Motion Scenarios and Drones Intelligent Driving with Multi-GNSS Raw Data Output OTW WT-27-HP Development Board for High-speed Motion Scenarios and Drones Intelligent Driving with Multi-GNSS Raw Data Output OTW WT-27-HP Development Board for High-speed Motion Scenarios and Drones Intelligent Driving with Multi-GNSS Raw Data Output OTW WT-27-HP Development Board for High-speed Motion Scenarios and Drones Intelligent Driving with Multi-GNSS Raw Data Output

Large Image :  OTW WT-27-HP Development Board for High-speed Motion Scenarios and Drones Intelligent Driving with Multi-GNSS Raw Data Output

Product Details:
Place of Origin: CHINA
Brand Name: OTW
Model Number: WT-27-HP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $71.12 - 78.12/Piece
Packaging Details: Paper box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal,Western Union
Supply Ability: 10000 pcs/day
Contact Now

OTW WT-27-HP Development Board for High-speed Motion Scenarios and Drones Intelligent Driving with Multi-GNSS Raw Data Output

Description
Working Temperature: -40℃ To 85℃ Available Baud Rate: 4800bps~921600bps(default 38400bps)
Accuracy: 1 M + 1 Ppm CEP Cold Start: Average 24 Seconds
Sensitivity: Tracking: -167dbm Capture: -160dbm Cold Start -148dBm Hot Start: -157dbm Voltage: 3.3V~5V（typical 5V）
Regeneration: 1Hz -20 Hz(default 1Hz） Port: 2 PCS 1.0mm Spacing 4Pins Connector，USB
Highlight:

ZED-F9P-02B drone positioning board

,

high-speed motion development board

,

intelligent driving positioning board

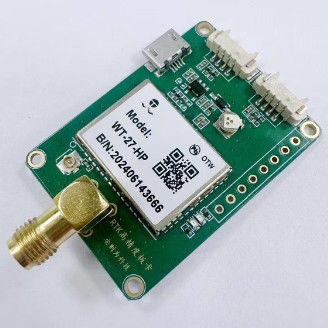

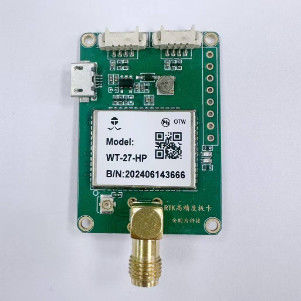

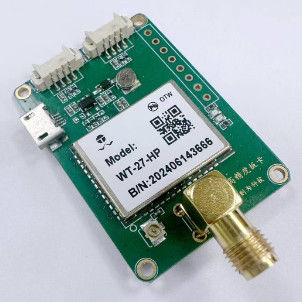

OTW 27-hp Development Board for High-Speed Motion & Drone Applications
Advanced positioning and measurement solution designed for complex environments, high-speed motion scenarios, and intelligent drone driving applications.
OTW WT-27-HP Development Board for High-speed Motion Scenarios and Drones Intelligent Driving with Multi-GNSS Raw Data Output 0 OTW WT-27-HP Development Board for High-speed Motion Scenarios and Drones Intelligent Driving with Multi-GNSS Raw Data Output 1
Product Overview
The Development Board is a powerful and versatile platform designed for GPS module development, equipped with advanced features to support developers and engineers in GPS technology applications.
Key Capabilities
  • RAWX Support: Multi-GNSS raw measurement data output from GPS, GLONASS, Galileo, and BeiDou systems
  • Regeneration Rate: 1Hz to 20Hz (default 1Hz)
  • Operating Temperature: -40℃ to 85℃ for extreme environment reliability
  • Data Transfer: Baud rates from 4800bps to 921600bps (default 38400bps)
  • Connectivity: Two 1.0mm spacing 4-pin connectors plus USB port
Technical Specifications
Parameter Specification
Model WT-27-HP (development board)
Receiver Type GPS: L1C/A L2C, GLONASS: L1OF L2OF, Galileo: E1-B/C E5b, BeiDou: B1I B2I, QZSS: L1C/A L2C, SBAS: WAAS, EGNOS, MSAS, GAGAN and SouthPAN
Algorithm Integrated RTK algorithm
Protocol NMEA-0183, VTG, GLL, TXT ublox binary and NMEA Command
Channels 184
Sensitivity Tracking: -167dBm, Capture: -160dBm, Cold start: -148dBm, Hot start: -157dBm
Startup Time Cold start: 24 seconds average, Hot start: 2 seconds average
Accuracy 0.01 m + 1 ppm CEP
Max Operating Limits Height: 50,000m, Speed: 500 m/s, Acceleration: ≤4G
Power 3.3V~5V (typical 5V), Consumption: 80 mA @5V
Environmental Humidity: 5% to 95% non-condensing, Operating Temp: -40℃ to 85℃, Storage Temp: -40℃ to 105℃
Dimensions 43.11mm × 30mm × 13mm (±0.5mm)
Applications
The OTW WT-27-HP development board is ideal for precision positioning across various industries and applications:
  • Automotive navigation systems
  • Aerial and marine navigation
  • Geographic information systems (GIS)
  • Precision agriculture
  • Outdoor recreation and sports tracking
  • Surveying and mapping
  • Timing and synchronization for communication systems
  • Emergency and disaster response
Product Information
Brand: OTW
Model: WT-27-HP
Origin: China
Minimum Order: 1 piece
Price: USD 78.12 per piece
Supply Capacity: 10,000 pcs/day
Packaging & Shipping
Each Development Board is individually wrapped in anti-static bags and securely packaged in sturdy cardboard boxes with foam inserts. Orders ship within 24 hours with tracking provided. Expedited shipping options available for urgent requirements.
Frequently Asked Questions
What payment methods are accepted?
T/T, AliPay, and PayPal
What is the delivery time?
5-8 working days
What packaging is used?
Paper box packaging with protective foam inserts
