XX Chipset WT-11-UN Precision GNSS Module For GPS+GLONASS+BDS Satellite Positioning

Large Image : XX Chipset WT-11-UN Precision GNSS Module For GPS+GLONASS+BDS Satellite Positioning

Product Details:

Place of Origin:	China
Model Number:	WT-11-UN

Payment & Shipping Terms:

Price:	CN¥35.67/pieces 1-499 pieces

Contact Now

XX Chipset WT-11-UN Precision GNSS Module For GPS+GLONASS+BDS Satellite Positioning

Description

Type:	GNSS Module	Country Of Origin:	CHINA
Brand:	OTW	Chipset:	XX
Application:	Positioning, Surveying And Mapping, Etc	Operating Mode:	GPS+GLONASS+ BDS
Output Mode:	UART+TTL+R232	Baud Rate:	4800bps-921600bps,Default9600bps
NMEA Messages:	RMC,VTG,GGA,GSA,GSV,GLL	Update Frequency:	1Hz-18Hz(default 1Hz)
Voltage:	1.65V To 3.6V	Power Consumption:	21mA @3.0V
Size:	9.7mm10.1mm2.4mm
Highlight:	GNSS satellite positioning module , GPS GLONASS BDS GNSS Module , WT-11-UN Precision GNSS Module

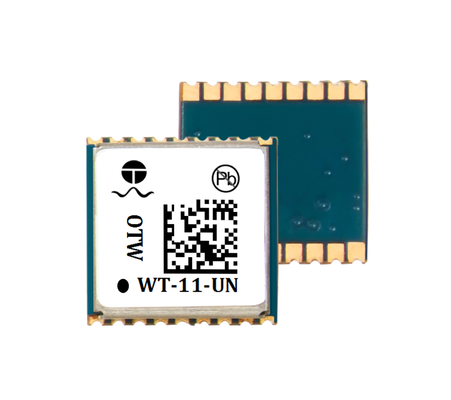

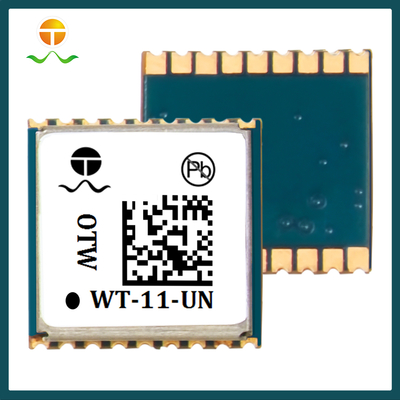

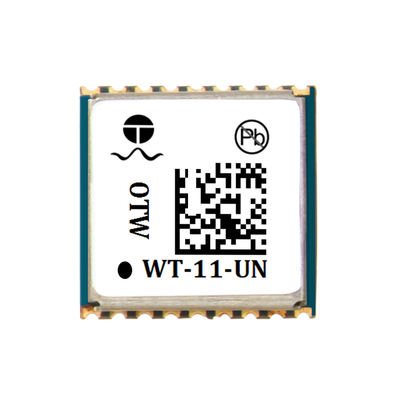

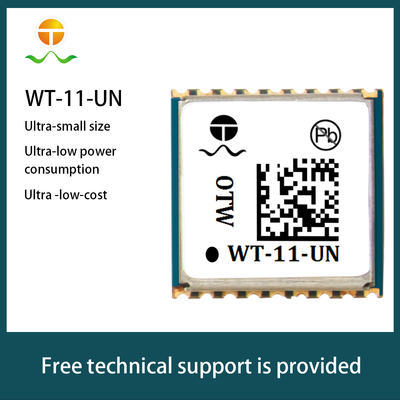

XX Chipset WT-11-UN Precision GNSS Module

High-performance GPS+GLONASS+BDS satellite positioning module for precise navigation and surveying applications

Key Specifications

Attribute	Value
Type	GNSS Module
Brand	OTW
Chipset	XX
Operating Mode	GPS+GLONASS+BDS
Output Mode	UART+TTL+R232
Baud Rate	4800bps-921600bps (Default 9600bps)
Update Frequency	1Hz-18Hz (default 1Hz)
Voltage	1.65V to 3.6V
Power Consumption	21mA @3.0V
Size	9.7mm × 10.1mm × 2.4mm

Technical Performance

Receiver Type	GPS/QZSS: L1C/A Galileo: E1-B/C GLONASS: L1OF BeiDou: B1
Protocol	NMEA-0183 compliant or custom protocol
Sensitivity	Tracking: -167dBm Capture: -158dBm Cold start: -148dBm
Startup Time	Cold start: 26s (average) Hot start: 1s (average)
Positioning Accuracy	Horizontal: <2.0m (with SBAS)

Physical Characteristics

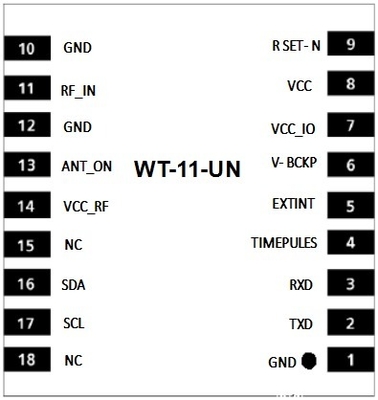

Package Type: 18PIN LCC

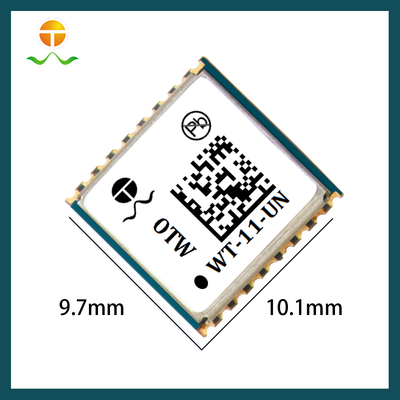

Dimensions: 9.7mm × 10.1mm × 2.4mm (±0.5mm)

Operating Temperature: -40℃ to 85℃

Storage Temperature: -40℃ to 125℃

Humidity Range: 5% to 95% non-condensing

Interfaces

2 × UART ports

1 × I2C interface

2 × SPI interfaces
