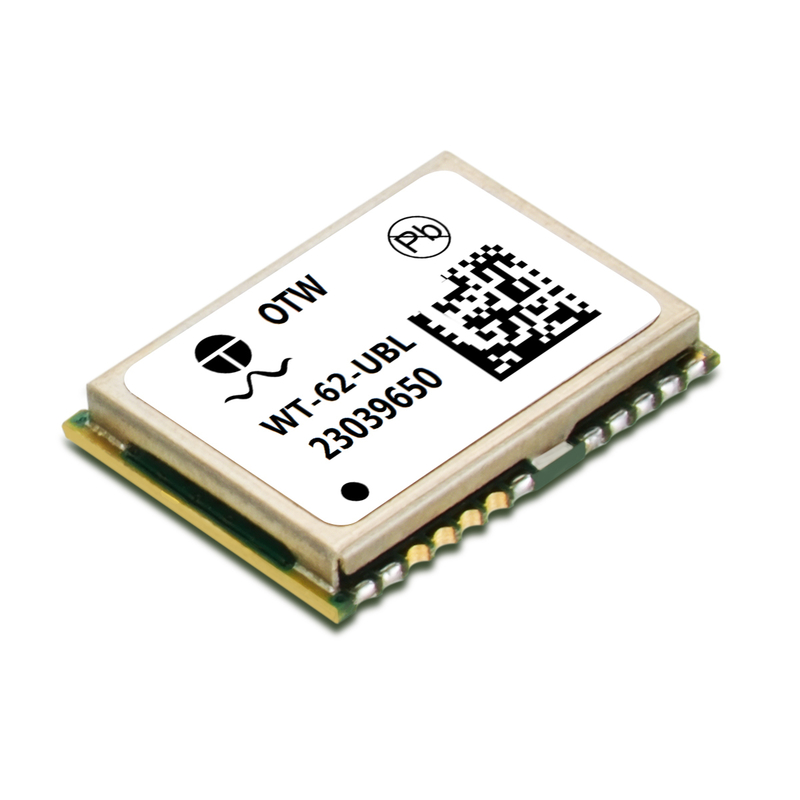

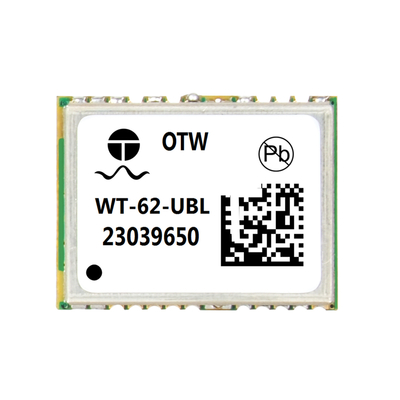

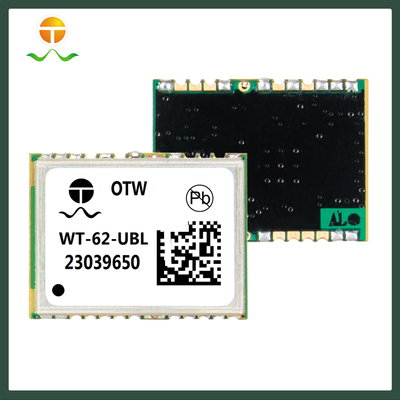

Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles

Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles
Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles

Large Image :  Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles

Product Details:
Place of Origin: China
Model Number: WT-62-UBL
Payment & Shipping Terms:
Price: CN¥29.25/pieces 1-499 pieces
Contact Now

Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles

Description
Type: GNSS Module Country Of Origin: Shenzhen Guangdong, China
Brand: OTW Chipset: XX
Application: Positioning, Surveying And Mapping, Etc Operating Mode: GPS+GLONASS
Output Mode: UART+TTL Baud Rate: 4800bps-921600bps,Default 9600bps
NMEA Sentences: RMC,VTG,GGA,GSA,GSV,GLL Update Frequency: 1Hz-10Hz(default 1Hz)
Voltage: 1.8V To 3.6V Power Consumption: 17 MA @3.3V
Size: 12.2mm*16mm*2.4mm
Highlight:

Ultra-mini GPS module

,

Real time tracking GPS module

,

Compact GNSS Module

Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles
Product Specifications
Attribute Value
Type GNSS Module
Country of Origin Shenzhen Guangdong, China
Brand OTW
Chipset XX
Application Positioning, surveying and mapping, etc
Operating mode GPS+GLONASS
Output Mode UART+TTL
Baud rate 4800bps-921600bps, Default 9600bps
NMEA sentences RMC, VTG, GGA, GSA, GSV, GLL
Update frequency 1Hz-10Hz (default 1Hz)
Voltage 1.8V to 3.6V
Power consumption 17 mA @3.3V
Size 12.2mm*16mm*2.4mm
Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles 0 Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles 1 Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles 2
Technical Performance
Module Performance
Model WT-62-UBL
Receiver type GPS/QZSS L1 C/A
GLONASS L1
Agreement NMEA-0183 compliant protocol or custom protocol
Available baud rate 4800bps~921600bps (default 9600bps)
Channel 56
Sensitivity Tracking: -162dbm
Capture: -160dbm
Cold start -148dbm
Cold start Average 29 seconds
Hot start Average 1 seconds
Accuracy Horizontal Position: average, SBAS < 2.5m
Max Height 18000 m
Max Speed 515 m/s
Max Acceleration ≦ 4G
Regeneration frequency 1Hz -10 Hz
Port
Port UART+TTL
Physical Properties

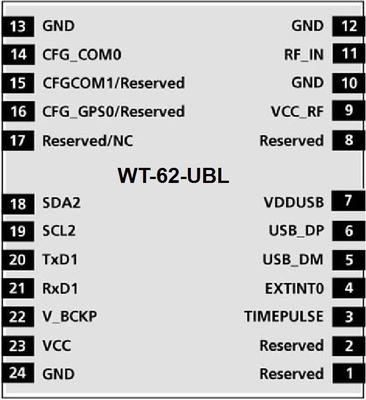

Type 24 pin stamp holes

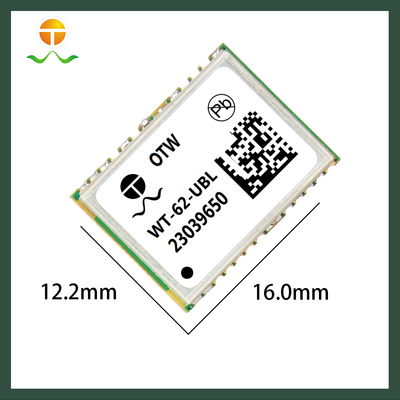

Size 16.0mm*12.2mm*2.4mm(+/- 0.5mm)
Power Supply
Voltage 1.8V~3.6V
Power Consume Operation mode: 17mA@3V, power saving mode: 5mA@3V
Operating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles 3 Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles 4 Ultra-Mini GNSS GPS Module with Real-Time Tracking for Vehicles 5
