High Precision 0.01M RTK GNSS Module Development Board with Integrated Geomagnetic RM3100 and Multi-GNSS Support

High Precision 0.01M RTK GNSS Module Development Board with Integrated Geomagnetic RM3100 and Multi-GNSS Support
High Precision 0.01M RTK GNSS Module Development Board with Integrated Geomagnetic RM3100 and Multi-GNSS Support High Precision 0.01M RTK GNSS Module Development Board with Integrated Geomagnetic RM3100 and Multi-GNSS Support High Precision 0.01M RTK GNSS Module Development Board with Integrated Geomagnetic RM3100 and Multi-GNSS Support High Precision 0.01M RTK GNSS Module Development Board with Integrated Geomagnetic RM3100 and Multi-GNSS Support High Precision 0.01M RTK GNSS Module Development Board with Integrated Geomagnetic RM3100 and Multi-GNSS Support

Large Image :  High Precision 0.01M RTK GNSS Module Development Board with Integrated Geomagnetic RM3100 and Multi-GNSS Support

Product Details:
Place of Origin: CHINA
Brand Name: OTW
Model Number: ZED-F9T-00B-00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 115usd per piece
Packaging Details: Paper box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal
Supply Ability: 10000 pcs/day
Contact Now

High Precision 0.01M RTK GNSS Module Development Board with Integrated Geomagnetic RM3100 and Multi-GNSS Support

Description
Available Baud Rate: 4800bps~921600bps(default 38400bps) Agreement: NMEA-0183 Support:VTG,GLL,TXT Ublox Binary And NMEA Command
Regeneration: 1Hz-20Hz(default 1Hz） Size: 35mm * 35mm * 15mm (+/- 0.5mm)
Cold Start: Average 24 Seconds RAWX: Support Multi-GNSS Raw Measurenmet Data Output
Hot Start: Average 2 Seconds Algorithm: Integrated RTK Algorithm
Highlight:

ublox ZED-F9P high precision module

,

integrated geomagnetic RM3100 development board

,

high precision GNSS development board

u-blox ZED-F9P-05B High Precision GNSS Module with RM3100 Compass

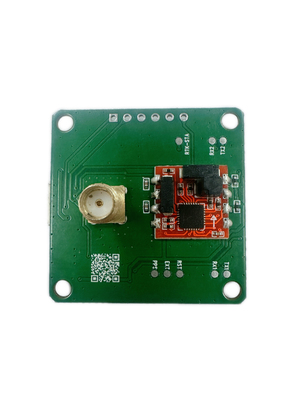

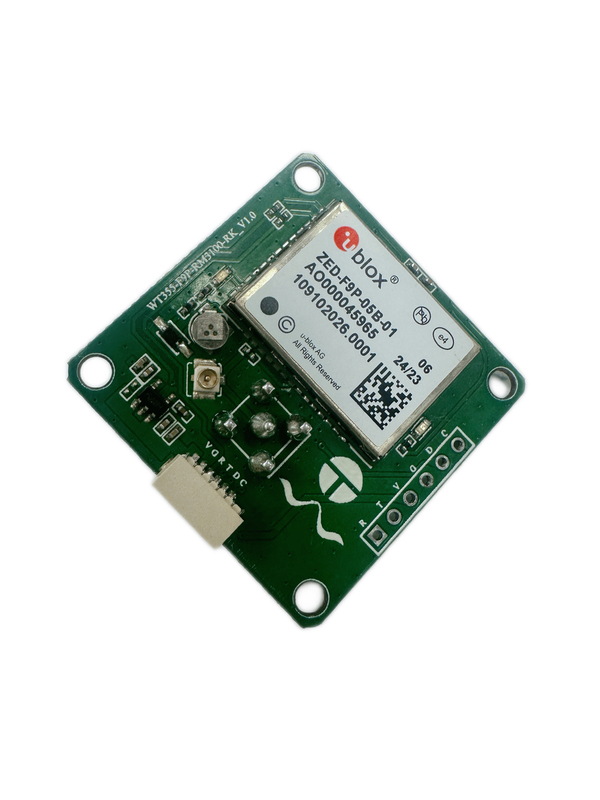

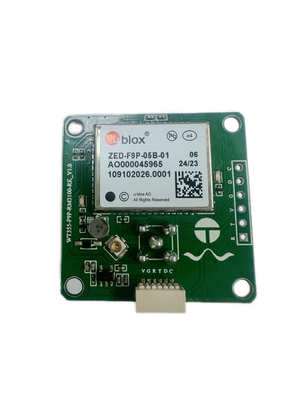

Advanced development board integrating high-precision ZED-F9P GPS/GNSS technology with RM3100 geomagnetic compass for precise positioning and directional indication. This RTK GPS base and rover solution delivers exceptional accuracy for demanding navigation applications.
Key Features
  • Compact dimensions: 35mm × 35mm × 15mm (±0.5mm)
  • Wide operating voltage: 3.6V~6.0V (typical 5V)
  • 1.0mm spacing 6-pin connector
  • High channel capacity: 184 channels
  • Superior tracking sensitivity: -167dBm
  • Rapid satellite acquisition with hot start sensitivity: -157dBm
  • Multi-GNSS support: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Technical Specifications
Product Type GPS Module Development Board
Communication Protocol NMEA-0183, Ublox Binary, NMEA Command
Operating Temperature -40℃ to 85℃
Hot Start Time Average 2 seconds
Positioning Accuracy 0.01 M + 1 PPM CEP
Update Rate 1Hz - 20Hz (default 1Hz)
Baud Rate 4800bps~921600bps (default 38400bps)
Supported Satellite Systems
  • GPS: L1C/A, L2C
  • GLONASS: L1OF, L2OF
  • Galileo: E1-B/C, E5b
  • BeiDou: B1I, B2I
  • QZSS: L1C/A, L2C
  • SBAS: WAAS, EGNOS, MSAS, GAGAN, SouthPAN
Applications
Surveying and Mapping
Precision Agriculture
Drones and UAV Navigation
Vehicle Tracking Systems
Outdoor Sports and Navigation
Robotics and Autonomous Systems
Customization & Ordering
Brand: OTW
Model: ZED-F9P-05B
Origin: China
Minimum Order Quantity: 1 unit
Price: $120.08 per unit
Delivery: 5-8 working days
Production Capacity: 10,000 units/day
Customized solutions available with comprehensive technical documentation for seamless integration.

Overall Rating

5.0
Based on 50 reviews for this product

Rating Snapshot

The following is the distribution of all ratings
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 stars
0%

All Reviews

A
A*a
Albania Dec 9.2025
Helpful (5)
good product，The service of June was excellent. Thanks.
X
x*x
Albania Nov 19.2025
Helpful (6)
The positioning accuracy is fine, and the compass is easy to use.
