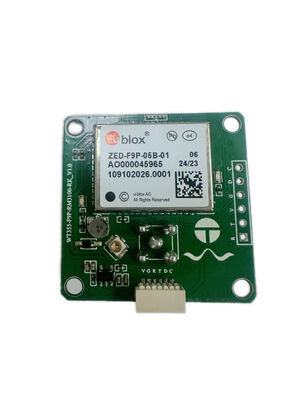

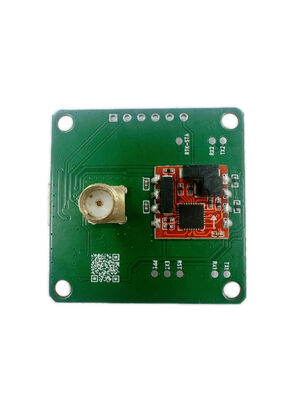

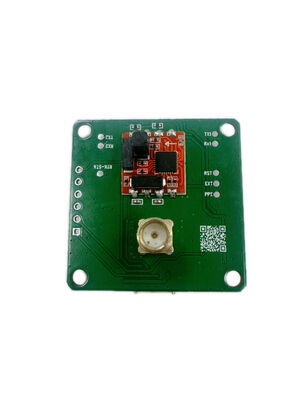

UBLOX GPS Development Board ZED-F9P Built-in geomagnetic rm310

UBLOX GPS Development Board ZED-F9P Built-in geomagnetic rm310
UBLOX GPS Development Board ZED-F9P Built-in geomagnetic rm310 UBLOX GPS Development Board ZED-F9P Built-in geomagnetic rm310 UBLOX GPS Development Board ZED-F9P Built-in geomagnetic rm310 UBLOX GPS Development Board ZED-F9P Built-in geomagnetic rm310

Large Image :  UBLOX GPS Development Board ZED-F9P Built-in geomagnetic rm310

Product Details:
Place of Origin: CHINA
Brand Name: OTW
Model Number: ZED-F9T-00B-00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 115usd per piece
Packaging Details: Paper box
Delivery Time: 5-8 working days
Payment Terms: T/T,AliPay,PayPal
Supply Ability: 10000 pcs/day
Contact Now

UBLOX GPS Development Board ZED-F9P Built-in geomagnetic rm310

Description
Available Baud Rate: 4800bps~921600bps(default 38400bps) Agreement: NMEA-0183 Support:VTG,GLL,TXT Ublox Binary And NMEA Command
Regeneration: 1Hz-20Hz(default 1Hz） Size: 35mm * 35mm * 15mm (+/- 0.5mm)
Cold Start: Average 24 Seconds RAWX: Support Multi-GNSS Raw Measurenmet Data Output
Hot Start: Average 2 Seconds Algorithm: Integrated RTK Algorithm

u blox ZED-F9P-05B High Precision GNSS Module with RM3100 Compass
Advanced development board integrating high-precision ZED-F9P GPS/GNSS technology with RM3100 geomagnetic compass for precise positioning and directional indication. This RTK GPS base and rover solution delivers exceptional accuracy for demanding navigation applications.
Key Features
  • Compact dimensions: 35mm * 35mm * 15mm (±0.5mm)
  • Wide operating voltage: 3.6V~6.0V (typical 5V)
  • 1.0mm spacing 6-pin connector
  • High channel capacity: 184 channels
  • Superior tracking sensitivity: -167dBm
  • Rapid satellite acquisition with hot start sensitivity: -157dBm
  • Multi-GNSS support: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Technical Specifications
Product Type GPS Module Development Board
Communication Protocol NMEA-0183, Ublox Binary, NMEA Command
Operating Temperature -40℃ to 85℃
Hot Start Time Average 2 seconds
Positioning Accuracy 0.01 M + 1 PPM CEP
Update Rate 1Hz - 20Hz (default 1Hz)
Baud Rate 4800bps~921600bps (default 38400bps)
Supported Satellite Systems
  • GPS: L1C/A, L2C
  • GLONASS: L1OF, L2OF
  • Galileo: E1-B/C, E5b
  • BeiDou: B1I, B2I
  • QZSS: L1C/A, L2C
  • SBAS: WAAS, EGNOS, MSAS, GAGAN, SouthPAN
Applications
Surveying and Mapping
Precision Agriculture
Drones and UAV Navigation
Vehicle Tracking Systems
Outdoor Sports and Navigation
Robotics and Autonomous Systems
Customization & Ordering
Brand: OTW
Model: ZED-F9P-05B
Origin: China
Minimum Order Quantity: 1 unit
Price: $120.08 per unit
Delivery: 5-8 working days
Production Capacity: 10,000 units/day
Customized solutions available with comprehensive technical documentation for seamless integration.
