GNSS Module Inertial Navigation Vehicle Positioning GPS Tracker

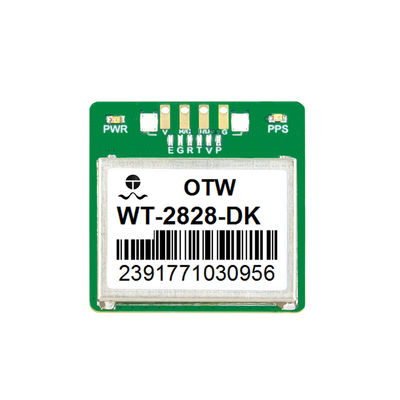

Large Image : GNSS Module Inertial Navigation Vehicle Positioning GPS Tracker

Product Details:

Place of Origin:	China
Brand Name:	OTW
Model Number:	WT-2828-DK

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	US $4.1 - 15/
Delivery Time:	7-10working days after receiving the payment
Payment Terms:	T/T, Western Union
Supply Ability:	Above US$100 Million

Contact Now

GNSS Module Inertial Navigation Vehicle Positioning GPS Tracker

Description

Model Number:	WT-2828-DK	Application:	Positioning, Surveying And Mapping, Etc
Brand:	OTW	Baud Rate:	4800bps-921600bps,Default115200bps
NMEA Messages:	RMC,VTG,GGA,GSA,GSV,GLL	Update Frequency:	0.25Hz-10Hz(default 1Hz)
Voltage:	3.0V To 5.0V	Size:	28.3mm28.3mm7.5mm
Highlight:	0.25-10hz gnss modules , gnss modules 0.25-10hz , gnss module 0.25-10hz

Product descriptions from the supplier

Overview

Application:

●In building survey, RTK can be used for building positioning, measurement, and monitoring of building structure to achieve high-precision building survey. ● In the field of aviation and navigation, RTK can be used for accurate fixed point positioning of drones, river and ocean measurement. ● In geological exploration, RTK can be used for topographic survey, regional survey, water resources management, etc. ● In precision agriculture, RTK can be used for land use and plant growth monitoring, enabling precision agriculture and energy management. ● In intelligent transportation, RTK can be used in the development of intelligent traffic management and autonomous driving technology.

Features:

● Multi-system, can synchronously receive GPS/BDS/GLONASS/GALILEO four system dual frequency
● Built-in dual-frequency RTK and inertial navigation fusion positioning algorithm, can achieve centimeter-level positioning
●High-precision six-axis inertial device and mature inertial navigation algorithm can realize positioning in complex high-speed
motion scenes such as tunnels and garages
● Positioning module and antenna integration, quickly meet customer product design
● Low cost, low power consumption
● High sensitivity, anti-interference, high performance

Pin name	I/O	Description	Remark
E	I	Power Enable
G	G	Ground
R	I	UART Serial Data Input
T	O	UART Serial Data Output
V	I	Module Power Supply
P	O	Time Pulse(1pps)
Flexible configuration

Product performance
Chip	WT-2828-DK
Receiver type	BDS:B1I/B1C & B2a GPS/QZSS:L1C/A & L5 GLONASS:L1 Galileo:E1 & E5a
Arithmetic	Integration RTK+Inertial navigation
Agreement	NMEA-0183 compliant protocol or custom protocol
NMEA messages	RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate	4800bps~921600bps(default 115200bps)
Channel	128
Sensitivity	Tracking: -167dbm Capture: -158dbm Cold start -148dbm
Cold start	Average 28seconds
Hot start	Average 1 seconds
Accuracy	Level 1cm+1ppm CEP50; Elevation 2cm+1ppm CEP50
18Max Height	18000 M
Max Speed	515 m/s
Max Acceleration	≦ 4G
Regeneration frequency	0.25 Hz -10 Hz
Positioning mode	A-GNSS,Double frequency RTK+Inertial navigation
Port
Port	UART/TTL/R232
Physical property
Type	1.25mm 6pins connector
Size	28.3mm * 28.3mm * 7.5 mm (+/- 0.5mm)
Power supply
Voltage	3V~5V
Power Consume	35mA@3.3V
Oerating Environment
Humidity range	5% to 95% non-condensing
Working Temperature	-40℃ to 85℃
Storage Temperature	-40℃ to 85℃
