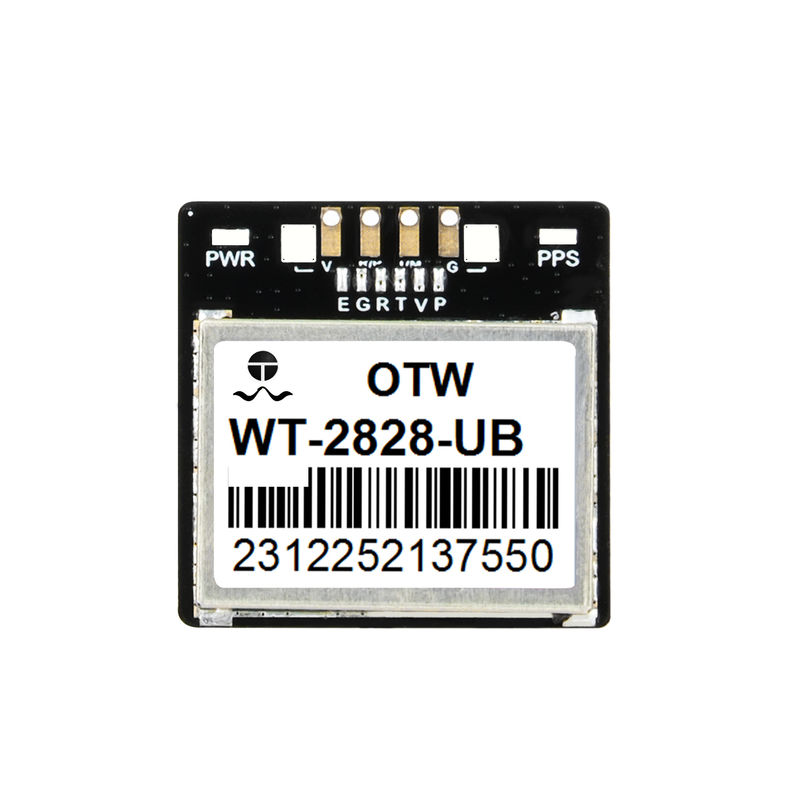

Built In GPS Antenna Car Tracking Device Motorcycle GPS Module 115200 Bps

Built In GPS Antenna Car Tracking Device Motorcycle GPS Module 115200 Bps
Built In GPS Antenna Car Tracking Device Motorcycle GPS Module 115200 Bps
Built In GPS Antenna Car Tracking Device Motorcycle GPS Module 115200 Bps Built In GPS Antenna Car Tracking Device Motorcycle GPS Module 115200 Bps

Large Image :  Built In GPS Antenna Car Tracking Device Motorcycle GPS Module 115200 Bps

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-2828-UB
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: US $4.1 - 15/
Delivery Time: 7-10working days after receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: Above US$100 Million
Contact Now

Built In GPS Antenna Car Tracking Device Motorcycle GPS Module 115200 Bps

Description
Model Number: WT-2828-UB Chipset: XX
Application: Positioning, Surveying And Mapping, Etc Type: GNSS Module
Country Of Origin: CHINA Brand: OTW
Operating Mode: GPS/QZSS+GLONASS Output Mode: UART+TTL+R232+USB
Baud Rate: 4800bps-921600bps,Default115200bps NMEA Messages: RMC,VTG,GGA,GSA,GSV,GLL
Update Frequency: 1Hz-18Hz(default 1Hz) Voltage: 3.0V To 5.0V
Power Consumption: 35 MA @3.3V Size: 28.3mm*28.3mm*7.5mm
Highlight:

Built in GPS antenna car tracking device

,

motorcycle GPS module 115200 bps

,

motorcycle GPS module

Built-in GPS antenna, car tracking device, motorcycle GPS module



Product descriptions from the supplier

Overview

Built In GPS Antenna Car Tracking Device Motorcycle GPS Module 115200 Bps 0
Application:
●● Tracking products such as personal positioning and vehicle navigation positioning
● Drones, law enforcement equipment
● Pocket computers and other portable navigation devices
● Track recording and GNSS data point calibration
● Measuring equipment
● Agricultural positioning and other products
● Timing equipment
● Automotive Internet of Things
Built In GPS Antenna Car Tracking Device Motorcycle GPS Module 115200 Bps 1
Features:
● Positioning module and antenna integrated
●GNSS engine for GPS/QZSS, GLONASS
● Ultra-high sensitivity
● Built-in high-gain LNA and SAW for better performance in weak signal situations, even with passive antennas for fast positioning
● High performance, low power consumption
●Exceptional jamming immunity
Built In GPS Antenna Car Tracking Device Motorcycle GPS Module 115200 Bps 2
Pin name
I/O
Description
Remark
E
I
Power Enable

G
G
Ground

R
I
UART Serial Data Input

T
O
UART Serial Data Output

V
I
Module Power Supply

P
O
Time Pulse(1pps)

Flexible configuration
                                                      Product performance
Model WT-2828-UB
Receiver type

GPS/QZSS L1
GLONASS L1
Agreement NMEA-0183 compliant protocol or custom protocol
NMEA messages RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate 4800bps~921600bps(default 115200bps)
Channel 56
Sensitivity Tracking -162 dbm Hot start -157dBm Cold start -148dBm
Cold start Average 29seconds
Hot start Average 1 seconds
Accuracy Horizontal accuracy 2.5m

Velocity: 0.1m /s

Timepulse signal: RMS 30 ns
18Max Height 18000 M
Max Speed 515 m/s
Max Acceleration ≦ 4G
Regeneration frequency 1Hz -18 Hz
Positioning mode A-GNSS
Port
Port

UART/TTL/R232/USB
Physical property
Type 1.25mm 6pins connector
Size 28.3mm * 28.3mm * 7.5 mm (+/- 0.5mm)
Power supply
Voltage 3V~5V
Power Consume

35mA@3.3V
Oerating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
