GNSS Module Automotive drone real-time vehicle GPS module

GNSS Module Automotive drone real-time vehicle GPS module
GNSS Module Automotive drone real-time vehicle GPS module
GNSS Module Automotive drone real-time vehicle GPS module GNSS Module Automotive drone real-time vehicle GPS module

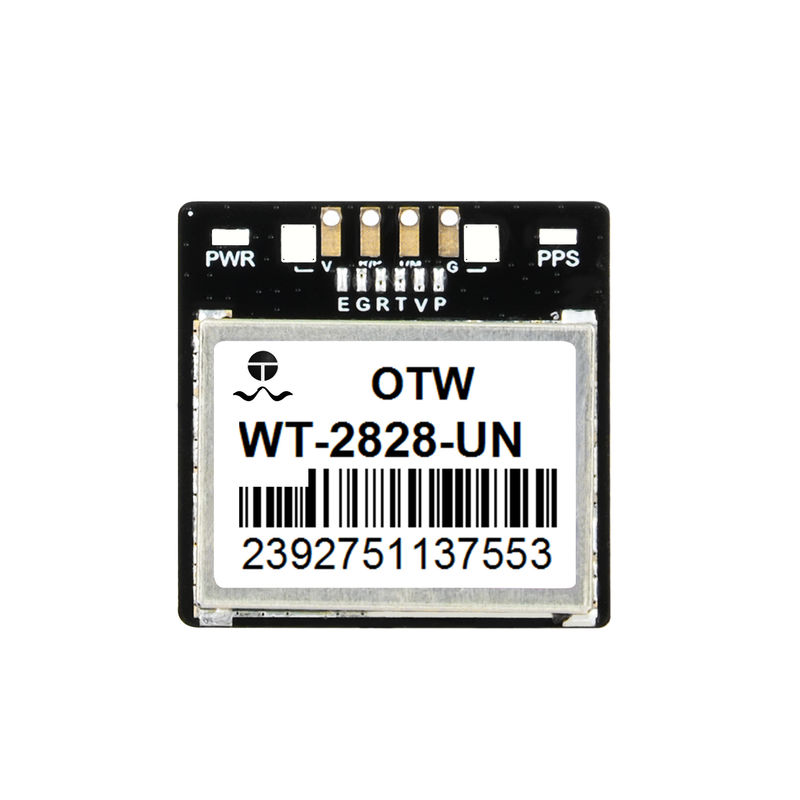

Large Image :  GNSS Module Automotive drone real-time vehicle GPS module

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-2828-UN
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: US $4.1 - 15/
Delivery Time: 7-10working days after receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: Above US$100 Million
Contact Now

GNSS Module Automotive drone real-time vehicle GPS module

Description
Model Number: WT-2828-UN Chipset: XX
Application: Positioning, Surveying And Mapping, Etc Type: GNSS Module
Country Of Origin: CHINA Brand: OTW
Operating Mode: GPS+GLONASS+GALILEO+ BDS Output Mode: UART+TTL+R232+USB
Baud Rate: 4800bps-921600bps,Default115200bps NMEA Messages: RMC,VTG,GGA,GSA,GSV,GLL
Update Frequency: 1Hz-18Hz(default 1Hz) Voltage: 3.0V To 5.0V
Power Consumption: 35 MA @3.3V Size: 28.3mm*28.3mm*7.5mm
Highlight:

Real Time Vehicle Tracker GPS Module

,

Automotive Drone GPS Module

,

Automotive GNSS Module

GNSS Module Automotive Drone Real-Time Vehicle Tracker GPS Module



Product descriptions from the supplier

Overview

GNSS Module Automotive drone real-time vehicle GPS module 0
Application:
● Tracking products such as personal positioning and vehicle navigation positioning
● Drones, law enforcement equipment
● Pocket computers and other portable navigation devices
● Track recording and GNSS data point calibration
● Measuring equipment
● Agricultural positioning and other products
● Timing equipment
● Automotive Internet of Things
GNSS Module Automotive drone real-time vehicle GPS module 1
Features:
● Positioning module and antenna integrated
● Can receive 3 GNSS synchronously (GPS/BDS/GLN/GAL)
● Ultra-high sensitivity
● Built-in high-gain LNA and SAW for better performance in weak signal situations, even with passive antennas for fast positioning
● High performance, low power consumption
● Support for all satellite augmentation systems
● The operating temperature range of automotive grade chips is -40°C to +105°C
GNSS Module Automotive drone real-time vehicle GPS module 2
Pin name
I/O
Description
Remark
E
I
Power Enable

G
G
Ground

R
I
UART Serial Data Input

T
O
UART Serial Data Output

V
I
Module Power Supply

P
O
Time Pulse(1pps)

Flexible configuration
                                                      Product performance
Model WT-2828-UN
Receiver type

GPS/QZSS L1
GLONASS L1
BeiDou B1
Galileo E1
Agreement NMEA-0183 compliant protocol or custom protocol
NMEA messages RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate 4800bps~921600bps(default 115200bps)
Channel 72
Sensitivity Tracking -167 dbm Hot start -157dBm Cold start -148dBm
Cold start Average 26seconds
Hot start Average 1 seconds
Accuracy Horizontal accuracy 2.0m

Velocity: 0.1m /s

Timepulse signal: RMS 30 ns
18Max Height 18000 M
Max Speed 500 m/s
Max Acceleration ≦ 4G
Regeneration frequency 1Hz -18 Hz
Positioning mode A-GNSS
Port
Port

UART/TTL/R232/USB
Physical property
Type 1.25mm 6pins connector
Size 28.3mm * 28.3mm * 7.5 mm (+/- 0.5mm)
Power supply
Voltage 3V~5V
Power Consume

35mA@3.3V
Oerating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 105℃
Storage Temperature -40℃ to 125℃
