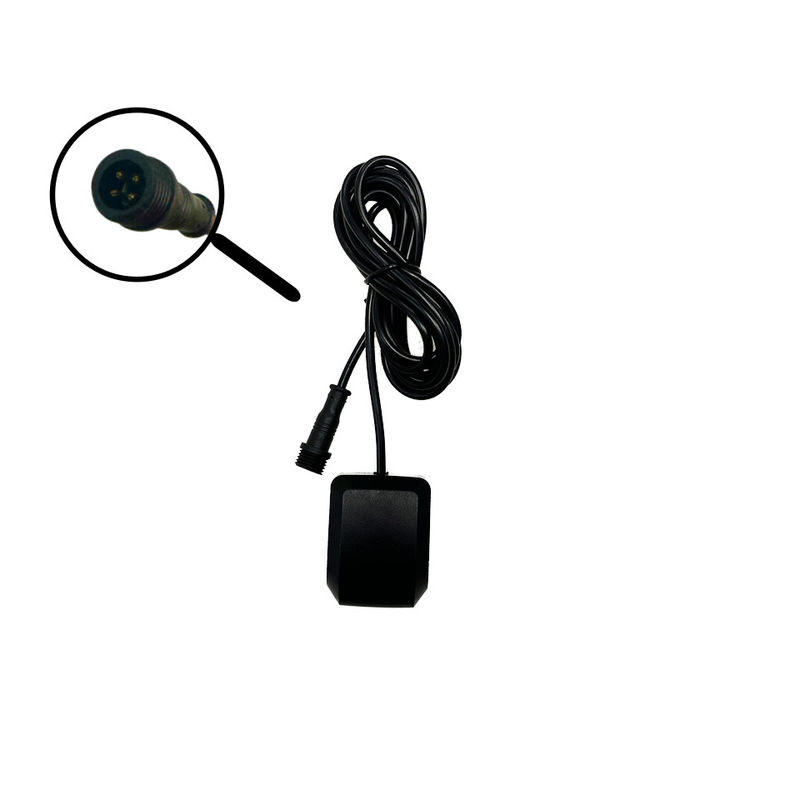

GPS Antenna G Mouse R232 Antenna Positioning Module For Logistics Positioning

GPS Antenna G Mouse R232 Antenna Positioning Module For Logistics Positioning
GPS Antenna G Mouse R232 Antenna Positioning Module For Logistics Positioning
GPS Antenna G Mouse R232 Antenna Positioning Module For Logistics Positioning GPS Antenna G Mouse R232 Antenna Positioning Module For Logistics Positioning

Large Image :  GPS Antenna G Mouse R232 Antenna Positioning Module For Logistics Positioning

Product Details:
Place of Origin: China
Brand Name: OTW
Model Number: WT-2828-AK-R232-AV-1.2M
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: US $4.1 - 15/
Delivery Time: 7-10working days after receiving the payment
Payment Terms: T/T, Western Union
Supply Ability: Above US$100 Million
Contact Now

GPS Antenna G Mouse R232 Antenna Positioning Module For Logistics Positioning

Description
Model Number: WT-2828-AK-R232-AV-1.2M Chipset: AT65XX
Application: Positioning, Surveying And Mapping, Etc Type: GNSS Receiver
Country Of Origin: CHINA Operating Mode: GPS+GLONASS+GALILEO+ BDS
Power Consumption: 25 MA @3.3V Connector Type: Aviation Connector
Highlight:

Logistics Positioning GPS Antenna G Mouse

,

R232 Antenna Positioning Module

,

Logistics Positioning R232 Antenna

Product descriptions from the supplier

Overview

GPS Antenna G Mouse R232 Antenna Positioning Module For Logistics Positioning 0
Application:
● Car DVR
● Car RearView Mirror
● Car Tracker
● LBS (Location Based Service)
● PND (Portable Navigation Device)
● Computer
● Outdoor Equipment
● Handheld GPS Device. ect.
GPS Antenna G Mouse R232 Antenna Positioning Module For Logistics Positioning 1
Features:
● External positioning module and antenna integrated
● Elastic design with waterproof function
● Easy to install
● Support BDS/GPS/GLONASS multi-system joint positioning and single system independent positioning.
● Ultra-high sensitivity, high performance, low power consumption
GPS Antenna G Mouse R232 Antenna Positioning Module For Logistics Positioning 2
GPS Antenna G Mouse R232 Antenna Positioning Module For Logistics Positioning 3
Pin No.
Pin name
I/O
Description
Remark
1
GND
G
Ground

2
RXD
I
UART Serial Data Input

3
TXD
O
UART Serial Data Output

4
VCC
P
Power Supply
Voltage range 3.0V~5.0V
                                                      Product performance
Model WT-2828-AK-R232-AV-1.2M
Chip AT65XX
Receiver type

GPS/QZSS L1
GLONASS L1
BeiDou B1
Agreement NMEA-0183 compliant protocol or custom protocol
NMEA messages RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate 4800bps~921600bps(default 9600bps)
Channel 56
Sensitivity Tracking: -162dbm Capture: -148dbm Cold start -148dbm
Cold start Average 29seconds
Hot start Average 1 seconds
Accuracy Horizontal accuracy 2.5m CEP,
Velocity: 0.1 m/s
Timepulse signal: RMS 30 ns
18Max Height 18000 M
Max Speed 500 m/s
Max Acceleration ≦ 4G
Regeneration frequency 1Hz -10 Hz
Positioning mode A-GNSS
Communication type R232 level
Antenna Built-in ceramic antenna
Connector
Connector type

Aviation connector
Physical property
Type 4 Pin
Size 38mm*49mm*16mm (+/- 0.5mm)
Wire length 1.2m (customizable)
Fixed mode 3M adhesive or magnet (default 3M adhesive)
Power supply
Voltage 3V~5V
Power Consume

25mA@3.3V
Oerating Environment
Humidity range 5% to 95% non-condensing
Working Temperature -40℃ to 85℃
Storage Temperature -40℃ to 85℃
