Product Description:

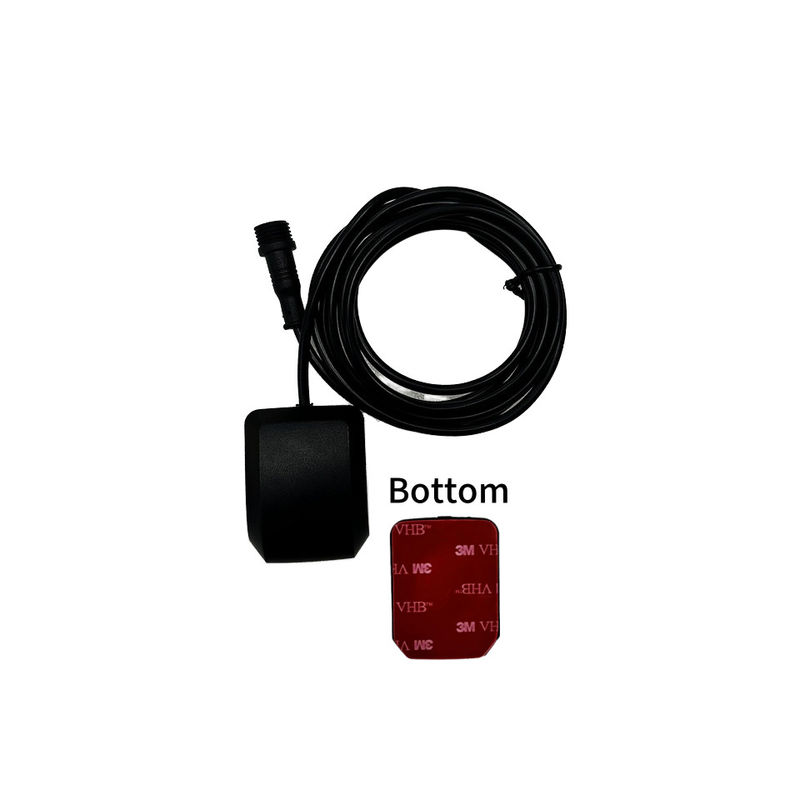

Antenna Module Integrated
The Antenna Module Integrated is a cutting-edge product designed to provide high-performance GPS capabilities in a compact and user-friendly package. This versatile module is perfect for a wide range of applications, from navigation systems and vehicle tracking to remote monitoring and IoT devices.
Channel: 56
The Antenna Module Integrated supports up to 56 channels, ensuring accurate and reliable positioning even in challenging environments.
NMEA Messages:
The module is equipped with the following NMEA messages: RMC, VTG, GGA, GSA, GSV, and GLL. These messages provide essential information such as position, speed, and time to enable precise and efficient tracking.
Regeneration Frequency: 1Hz - 10Hz
The Antenna Module Integrated offers a regeneration frequency range of 1Hz to 10Hz, giving users the flexibility to adjust the frequency according to their specific needs.
Agreement: NMEA-0183 Compliant Protocol or Custom Protocol
The module is compatible with the NMEA-0183 protocol, making it easy to integrate into existing systems. It also supports custom protocols for more advanced and specialized applications.
Antenna: Built-in Ceramic Antenna
The Antenna Module Integrated features a built-in ceramic antenna, which provides excellent reception and stability, even in areas with poor signal strength. This eliminates the need for an external antenna, saving space and simplifying installation.
With its compact size and powerful features, the Antenna Module Integrated is the perfect solution for any project requiring GPS capabilities. Don't miss out on the opportunity to enhance your product with this top-of-the-line module.
Features:
- Product Name: Antenna Module Integrated
- Regeneration Frequency: 1Hz - 10Hz
- Positioning Accuracy: Horizontal Accuracy 2.5m CEP, Velocity: 0.1 M/s
- Timepulse Signal: RMS 30 Ns
- Communication Type: R232 Level
- Receiver Type: GPS/QZSS L1 GLONASS L1 BeiDou B1
- Antenna: Built-in Ceramic Antenna
- Auto GPS Antenna
- GPS Module
- Auto GPS Antenna Module
- Integrated Module
Technical Parameters:
| Technical Parameters |
Description |
| Voltage |
3V~5V |
| NMEA messages |
RMC, VTG, GGA, GSA, GSV, GLL |
| Positioning mode |
A-GNSS |
| Wire length |
3m (customizable) |
| Available baud rate |
4800bps~921600bps (default 9600bps) |
| Sensitivity |
Tracking: -162dbm
Capture: -148dbm
Cold Start: -148dbm |
| Regeneration frequency |
1Hz - 10Hz |
| Receiver type |
GPS/QZSS L1
GLONASS L1
BeiDou B1 |
| Agreement |
NMEA-0183 Compliant Protocol
Or Custom Protocol |
| Size |
38mm*49mm*16mm (+/- 0.5mm) |
Auto GPS Antenna: Antenna Module Integrated
GPS Receiver Module: A-GNSS, GPS/QZSS L1, GLONASS L1, BeiDou B1
GPS Navigation Antenna: NMEA-0183 Compliant Protocol or Custom Protocol
Applications:
Product Description
The Antenna Module Integrated by OTW is a high-performance GPS active antenna designed for various GPS navigation systems. It is a compact and lightweight module that can be easily integrated into different devices. With its advanced technology and reliable quality, this antenna module is the perfect solution for your GPS navigation needs.
Product Applications
The Antenna Module Integrated is ideal for a wide range of applications, including:
- GPS navigation systems
- Vehicle tracking devices
- Fleet management systems
- Precision agriculture
- Marine navigation
- Aviation navigation
- And more
With its high sensitivity and stable performance, this antenna module is perfect for any situation that requires reliable and accurate GPS positioning.
Product Scene
Imagine you are driving to a new destination and your GPS navigation system suddenly loses signal, leaving you lost and frustrated. This is where the Antenna Module Integrated comes in. With its high sensitivity and fast start-up time, your GPS navigation system will always have a strong and stable signal, ensuring you reach your destination without any interruptions.
Not just limited to land, this antenna module is also perfect for marine and aviation navigation systems. With its compact size and easy integration, it can be installed in any type of vehicle or vessel without taking up too much space.
How to Order
To order the Antenna Module Integrated, please contact us with your desired quantity and preferred payment method. Our minimum order quantity is 1 piece and we accept payments through T/T, AliPay, and PayPal. With our fast delivery time of 5-8 working days and supply ability of 10000 pcs per day, you can receive your order in a timely manner.
Customization:
Customization Services for Antenna Module Integrated
Brand Name: OTW
Model Number: WT-2828-AK-R232-AV-3M
Place of Origin: CHINA
Minimum Order Quantity: 1
Price: USD5.75$ per piece
Packaging Details: Paper box
Delivery Time: 5-8 working days
Payment Terms: T/T, AliPay, PayPal
Supply Ability: 10000 pcs/day
Wire length: 3m (customizable)
Receiver type: GPS/QZSS L1 GLONASS L1 BeiDou B1
Start-up time: Cold Start Average 29seconds Hot Start Average 1seconds
Antenna: Built-in Ceramic Antenna
Voltage: 3V~5V
At OTW, we understand the importance of customization when it comes to Antenna Module Integrated. That's why we offer a range of customization services to meet the specific needs of our customers.
Our GPS Receiver Module is designed to provide accurate and reliable positioning information. With our customization services, you can choose the wire length that best suits your needs, making it easier to integrate into your existing system.
Not only can you customize the wire length, but you can also choose the receiver type that best fits your requirements. Our GPS/QZSS L1 GLONASS L1 BeiDou B1 receiver allows for more accurate and reliable positioning.
In addition, our customization services also include the option to select the start-up time that works best for your application. With our built-in Ceramic Antenna, you can expect a start-up time of Cold Start Average 29seconds Hot Start Average 1seconds.
At OTW, we are committed to providing high-quality products and services to our customers. With our customization services, you can be assured that your Antenna Module Integrated will meet your specific needs and requirements. Contact us today to learn more about our customization options.
Packing and Shipping:
Product Description:
The Antenna Module Integration is a compact, high-performance antenna designed for wireless communication applications.
Packaging:
The Antenna Module Integrated will be carefully packaged to ensure its safety during transportation. It will be placed in a protective foam material and then placed in a sturdy box. The box will be labeled with the product name, model number, and any necessary safety warnings.
Shipping:
For domestic shipping, the Antenna Module Integrated will be shipped via a reliable and trackable courier service. For international shipping, it will be shipped via air or sea freight, depending on the customer's preference and location. The package will be insured to protect against any damages during transit.
The shipping cost will be calculated based on the destination and weight of the package. The customer will be responsible for any additional customs fees or taxes.
Delivery Time:
The estimated delivery time for domestic shipping is 2-5 business days. For international shipping, it may take 5-10 business days depending on the location.
Additional Services:
We also offer expedited shipping services for customers who require a faster delivery time. Please contact us for more information and pricing.
Return Policy:
If the Antenna Module Integrated is found to be defective or damaged upon arrival, customers can contact us for a replacement or refund within 7 days of receiving the product. Please refer to our warranty policy for more details.
