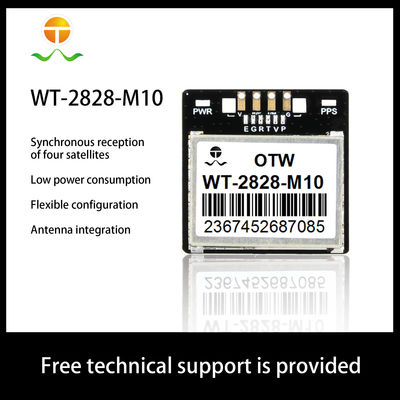

Precision Waterproof Antenna Module WT-2828-M10 For Extreme Climate -40C - 85C oem gps module

Product Description:

Our product has a wide range of applications, including:

• Tracking products such as personal positioning and vehicle navigation positioning
• Pocket computers and other portable navigation devices
• Track recording and GNSS data point calibration
• Measuring equipment
• Fixed-point positioning products in farming
• Timing equipment
• Automotive Internet of Things

Our product offers the following features:

• Positioning module and antenna integrated
• Synchronous reception of GPS/BDS/GLN/GAL
• Ultra-high sensitivity
• Built-in high gain LNA and SAW for better performance in the case of weak signals
• Fast positioning even with passive antennas
• High performance, low power consumption

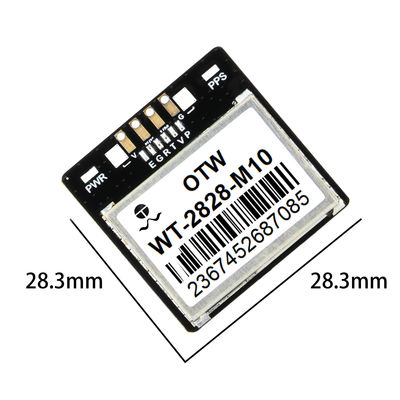

• Dimensions :28.3x28.3x7.5mm
• RoHS compliant

Our product is perfect for a variety of industries and applications, including personal tracking, farming, and automotive IoT. With integrated positioning and synchronous reception of GPS/BDS/GLN/GAL, our product offers ultra-high sensitivity and fast positioning capabilities. Additionally, our product has a built-in high gain LNA and SAW, providing better performance in weak signal environments and improved reliability. Despite its high performance, our product has low power consumption, making it a cost-effective and environmentally-friendly solution. Furthermore, with a compact design measuring only 28.3x28.3x7.5mm and RoHS compliance, our product is both easy to incorporate and sustainable.

Features:

• Product Name: Antenna Module Integrated
• GPS Navigation Antenna
• Car GPS Antenna
• GPS Active Antenna
• Warm start: Average 28 Seconds
• Max Speed: 500 M/s
• Hot start: Average 1 Seconds
• Voltage: 3V~5V
• Cold start: Average 29 Seconds

Technical Parameters:

Product Description: The Antenna Module Integrated product is a GPS Active Antenna with GPS Receiver Module. It comes with an Antenna Cable Assembly and has a compact size of 28.3mm * 28.3mm *7.5mm (+/- 0.5mm). It has a receiver type that supports GPS/QZSS, Galileo, GLONASS, and BeiDou. The module has an accuracy of Horizontal Position : Average, SBAS < 2.0m and is NMEA-0183 Compliant Protocol or Custom Protocol. It has an available baud rate of 4800bps~921600bps(default 38400bps). It has a warm start time of Average 28 Seconds and a hot start time of Average 1 Second. The working temperature of the module is -40℃ to 85℃.

Applications:

The OTW WT-2828-M10 GPS antenna is a 1.25mm 6pins connector type, with a sensitivity of Tracking :-167 DBm, Capture :-160 DBm, Cold Start :-148 DBm, and Hot Start :-158 DBm. The warm start time is an average of 28 seconds, and the voltage range is 3V~5V. The product has a supply ability of 10,000 pcs per day.

The OTW WT-2828-M10 GPS antenna is suitable for a range of product application occasions and scenarios. The product is ideal for use in GPS navigation systems, such as those used in cars, ships, aircraft, and other vehicles. The GPS antenna is also suitable for use in other GPS-related applications, such as tracking devices, surveying equipment, and more.

The OTW WT-2828-M10 GPS antenna can be used in a range of scenarios, including outdoor and indoor environments. The product is designed for easy installation and can be used with an antenna cable assembly for enhanced performance. The GPS antenna is also suitable for use in harsh environments, such as extreme temperatures, high humidity, and other challenging conditions.

The OTW WT-2828-M10 GPS antenna is a reliable and high-performance product that offers excellent value for money. The product is easy to use and can be integrated into a range of GPS navigation systems and other related applications. The product is available for purchase with payment terms of T/T, AliPay, and PayPal, making it easy to order and pay for the product.
