Product Description:
Application
The product that we offer is appropriate for different applications such as vehicle and ship positioning and navigation, time service, law enforcement equipment, portable devices, agricultural positioning and other products.
Product Features
Our product boasts the following features:
- Integrated positioning module and antenna
- Ultra-high sensitivity
- Support for BDS/GPS/GLONASS multi-system joint positioning and single system independent positioning
- Active antenna detection and protection
- Built-in high-gain LNA and SAW for better performance in weak signal situations, even with passive antennas for fast positioning
Features:
Technical Parameters:
| Product Attribute |
Value |
| GPS Antenna Receiver Type |
GPS/QZSS, BDS, GLONASS |
| Warm Start |
Average 1 Second |
| Power Dissipation |
35mA @ 3.3V |
| Operating Voltage |
3V~5V |
| Port |
UART/TTL/R232 |
| Sensitivity |
Tracking: -162 dBm, Cold Start: -148 dBm, Hot Start: -148 dBm |
| Overall Dimension |
28.3mm * 28.3mm * 7.5mm (+/- 0.5mm) |
| Agreement |
NMEA-0183 or Custom |
| Available Baud Rate |
4800bps~921600bps (default 11520000bps) |
| Max Height |
18000 M |
Applications:
The GPS Antenna Module Integrated product is suitable for a number of application occasions, including but not limited to, vehicle navigation systems, handheld GPS devices, marine GPS systems, and aviation GPS systems. The Antenna Cable Assembly can be used for GPS signal transmission in vehicles, boats, and airplanes. It is also ideal for use in outdoor applications, such as hiking, camping, and geocaching. With an operating temperature range of -40℃ to 85℃, it can withstand harsh weather conditions and extreme temperatures, making it a versatile and durable option.
The GPS Active Antenna is easy to install and use, making it a great choice for both novice and experienced users. With its high sensitivity and strong signal reception, it provides accurate and reliable GPS data, making it an essential tool for navigation and location-based applications. The compact size and lightweight design make it easy to carry and transport, and the long cable allows for flexible placement and positioning options.

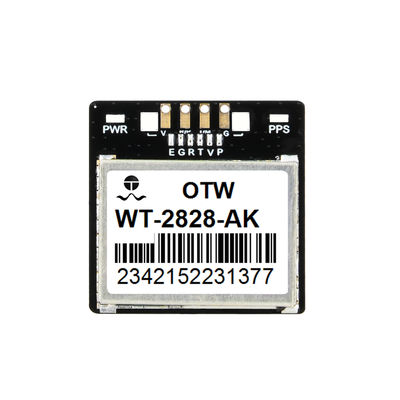

Overall, the OTW GPS Antenna Module Integrated product, model number WT-2828-AK, is a reliable, accurate, and versatile GPS antenna that can be used in a variety of scenarios. Whether you need to navigate a vehicle, explore the great outdoors, or pinpoint your location for a specific task, this GPS Active Antenna is an excellent choice.
